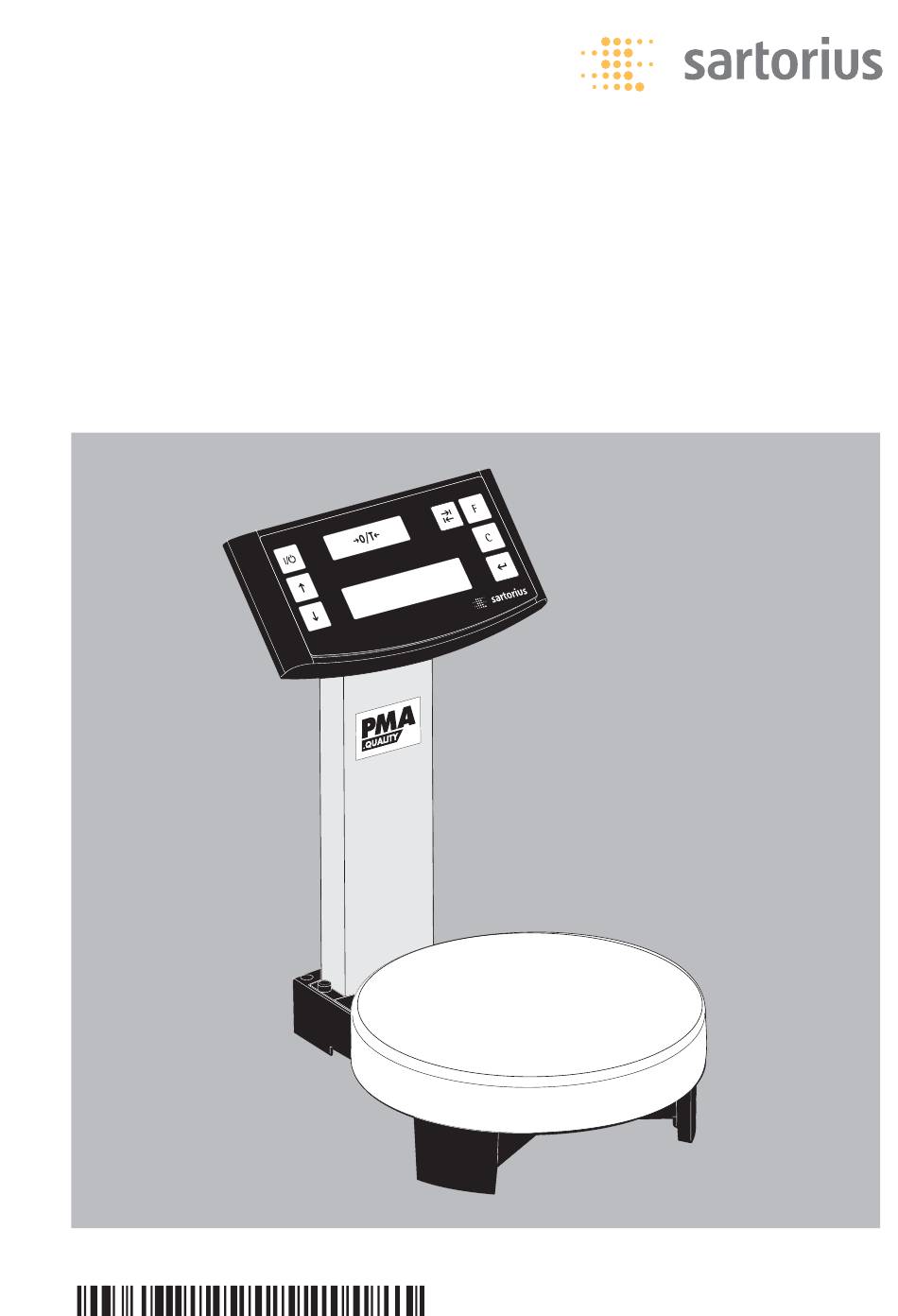

- Page 1 Installation Instructions Sartorius PMA.Quality PMA7501| PMA7501-000W Electronic Paint-mixing Scales 98648-014-21...
-
Page 2: General View Of The Equipment

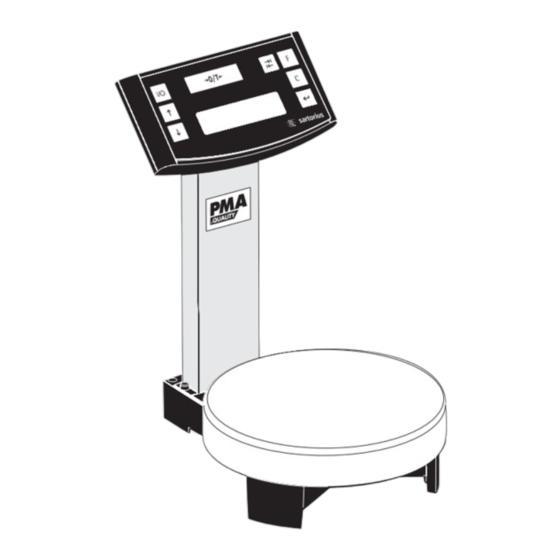

General View of the Equipment 1 Display and control unit 10 Display 2 Q key (On/Standby) 11 Weighing pan 3 R key: Upwards 12 Interfaces (D-Sub connector, 4 S key: Downwards 9-contact) 5 U key: Zero/Tare 13 DC jack for connection to AC power 6 I key (TOGGLE) 14 Column With the PMA 7501, you can toggle to... -
Page 3: Table Of Contents
STNG 6 and TNG 6 (only with the power supply of H03 provided 23 C Marking by Sartorius, or a similar type), may be used in areas exposed to the risk of fire, provided that the room is not exposed to relatively large amounts of accumulated dust and fibers, and thus a fire risk. -
Page 4: Warnings And Safety Precautions
Improper use questions, please contact your supplier or or handling can result in property damage Sartorius Customer Service for informa- and/or personal injury. To prevent damage tion on the legal regulations applicable in to the equipment, read these operating your country. -
Page 5: Getting Started
Getting Started § Remove the scale from its packaging. § After unpacking the scale, check it immediately for any visible damage as a result of rough handling during shipment. Equipment Supplied – Scale – Weighing pan – AC adapter or power supply –... - Page 6 (mains supply). If it does not match your local voltage rating or if the plug design differs from your local standard, contact your Sartorius office or dealer. Use only original Sartorius AC adapters. The use of AC adapters from other manufacturers,...
-
Page 7: Operation
Operation Turn on the scale using the After the scale has been If a different readout is Q key (2). turned on, it will automati- displayed, zero or tare the scale using the U key (5). cally run a self-test. At the end of this test, 0.0 g is displayed. - Page 8 Weighing with Two Decimal Places Note: To weigh using two decimal places, you must first adapt the settings (refer to the chapter entitled “Menu Settings”) Press the I key (6). The display shows “0.00 g.” Place an empty paint can on the weighing pan (11). Press the U key (5).
-
Page 9: Applications
Applications Formulation Mode (Calculation by a Factor) This mode enables you to weigh in amounts that are smaller or larger than that of your basic formula for a specific paint color (e.g., 250 ml of a 1-l formula). You can select various factors (amounts) by pressing the K formulation key (7): 0.25 0.5 0.75 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0. - Page 10 3. “.25” is displayed next to the weight 4. Slowly pour in the first component, “250 g” until the display shows “250 g.” 5. Pour in the second component, “250 g” until the display shows “500 g.” 6. Pour in the last component, “500 g” until “1000 g” is displayed.
- Page 11 Example (cumulative): Press the U key (5) Place an empty paint can on Pour in the first component. the weighing pan (11). 0.0 g + 50.0 g + 118.0 g Press the L key [MEM] (9). Press the L key [MEM] (9). Pour in the 2nd component.
-
Page 12: Calibration/Adjustment
Calibration/Adjustment You can calibrate/adjust the scale by pressing the U key (5). To do so, menu code 1 5 1 must be selected. Calibration weight: 5,000 g; accuracy: + 0.075 g. After connection to AC power and before each calibration/adjustment, allow the scale to warm up for approx. -
Page 13: Menu Settings
§ Press the L key [ENTER]. “o” will appear; the desired setting is defined. § Press the c key (Clear) several times to exit the menu. Note: To obtain a detailed list of the menu codes, please ask your nearest Sartorius office. - Page 14 Important Menu Settings § Hold down the L key [ENTER] for approx. 2 sec. “SETUP” will appear on the display (Level 1). Level 1 SETUP Language Settings Level 1 Level 2 § Press the R key to select “LANGUAGE” LANGUAGE §...
- Page 15 Assigning the I Toggle Key By pressing the toggle key (6), the scale toggles between the basic setting (see page 14) and the set- tings defined under “SETUP- APPLICATION – UNIT” and “SETUP- APPLICATION – DECIMALS“ Level 1 Level 2 Level 3 Level 4 §...
- Page 16 Note: Keep the numeric code in a safe place. The scale can only be accessed by entering the correct code. Level 1 Level 2 Level 3 Level 4 § Press the RS keys to select “INPUT” INPUT § Press the L key [ENTER] PASSWORD §...
- Page 17 § Press the L key [ENTER]; “o” will appear: etc. the new code is set § Press the c key (Clear) several times o CODES to exit the menu. Note: To obtain a detailed list of the menu codes, please ask your nearest Sartorius office.
-
Page 18: Troubleshooting
Troubleshooting Problem Cause Solution No segments appear – No AC power available – Check the AC power supply on the weight display Weight display shows – The weighing pan is – Position the weighing pan “Low” is not in place Weight display shows –... -
Page 19: Care And Maintenance
$ Storage temperature: –20°C to +75°C $ Permissible moisture level for storage of In this case, notify your nearest Sartorius the packaged scale: 90% max. Service Center or the International Tech- $ Read and follow the instructions given in nical Support Unit based in Goettingen, the section entitled “Safety Inspection.”... -
Page 20: Recycling
In Germany and many other countries where no Sartorius affiliates, subsidiaries, (see www.sartorius.com, Service Down- dealers or distributors are located, please load area for details), Sartorius AG or the contact your local authorities or a com- organization contracted by us takes care mercial disposal operator. -
Page 21: Interface Port
Interface Port Data Interface Pin Assignment 9-contact interface port Pin 2: (RXD) Receive Data Pin 3: (TXD) Transmit Data Pin 4: (DTR) Data Terminal Ready Pin 5: (GND) Ground Pin 6: BPI bridge Pin 8: (CTS) Clear to Send Specifications Model PMA 7501| PMA7501-000W Weighing range... -
Page 22: Accessories
Sartorius and must check and, if necessary, correct these installation in your country. modifications and cable connections. - Page 24 Sartorius AG Weender Landstrasse 94–108 37075 Goettingen, Germany Phone +49.551.308.0 Fax +49.551.308.3289 www.sartorius.com Copyright by Sartorius AG, Goettingen, Germany. All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior written permission of Sartorius AG.
