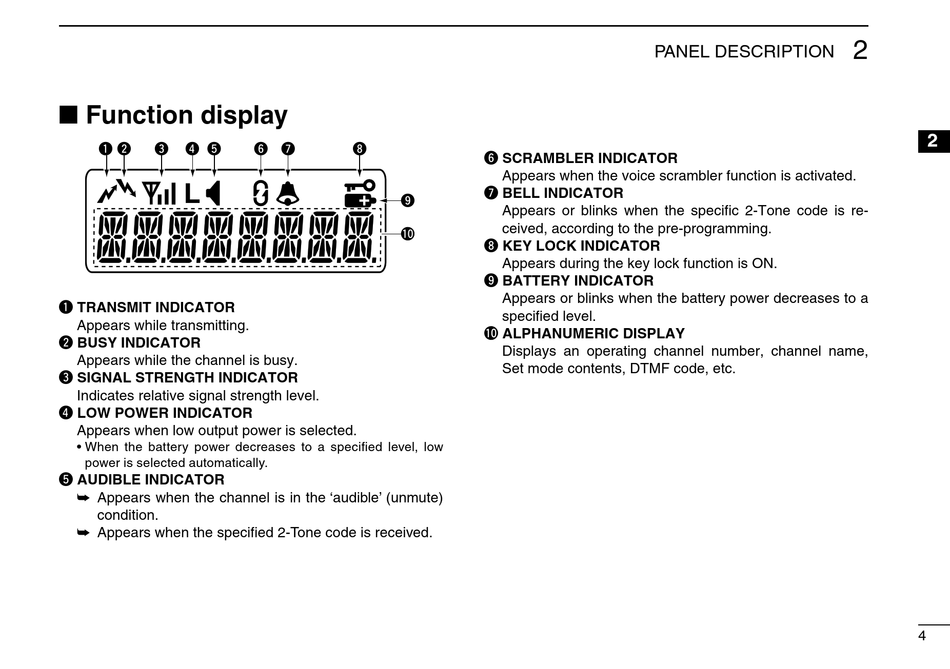

■ Function display

q w e r t
q TRANSMIT INDICATOR
Displayed while transmitting.
w BUSY INDICATOR
Displayed while the channel is busy.
e SIGNAL STRENGTH INDICATOR
Displays relative signal strength level.
r LOW POWER INDICATOR
Displayed when low output power is selected.
• When the battery power decreases to a specified level, low
power is selected automatically.
t AUDIBLE INDICATOR
➥ D isplayed when the channel is in the 'audible' (unmute)
condition.
➥ Displayed when the specified 2-Tone code is received.
y u i
o
!0
PANEL DESCRIPTION
y SCRAMBLER INDICATOR
Displayed when the voice scrambler function is activated.
u BELL INDICATOR
D isplayed or blinks when the specific 2-Tone code is
received, according to the pre-programming.
i KEY LOCK INDICATOR
Displayed during the key lock function is ON.
o BATTERY INDICATOR
D isplayed or blinks when the battery power decreases to a
specified level.
!0 ALPHANUMERIC DISPLAY
D isplays an operating channel number, channel name,
Set mode contents, DTMF code, etc.
