BATTERY CHARGING

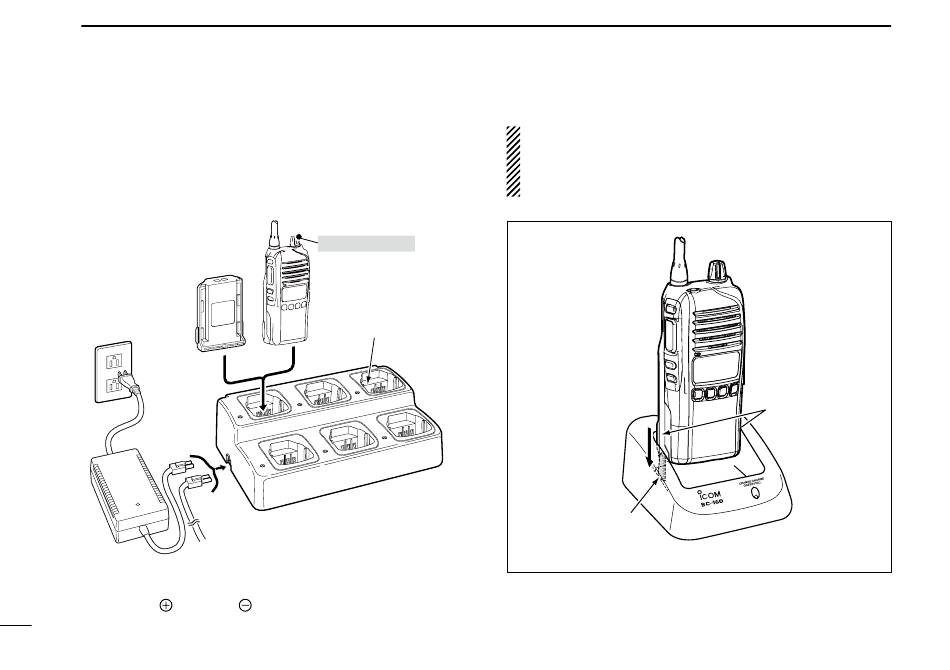

D Rapid charging with the BC-121N+AD-106
The optional BC-121N allows up to 6 Li-ion battery packs
to be charged simultaneously. The following items are
additionally required.
• Six AD-106 charger adapters
• An optional power adapter or the DC power cable (OPC-656)
Power adapter
(Purchased
separately)
DC power cable (OPC-656)
(Connect with the DC power supply; 13.8 V/at least 7 A)
*Abou the OPC-656
Red line : Black line :
19
Transceiver
Turn power OFF
Battery
pack
AD-106 charger
adapters are installed
in each slot.
IMPORTANT: Battery charging caution
Ensure the guide tabs on the battery pack are correctly
aligned with the guide rails inside the charger adapter.
(This illustration is described with the BC-160.)
Guide rail
Tabs
