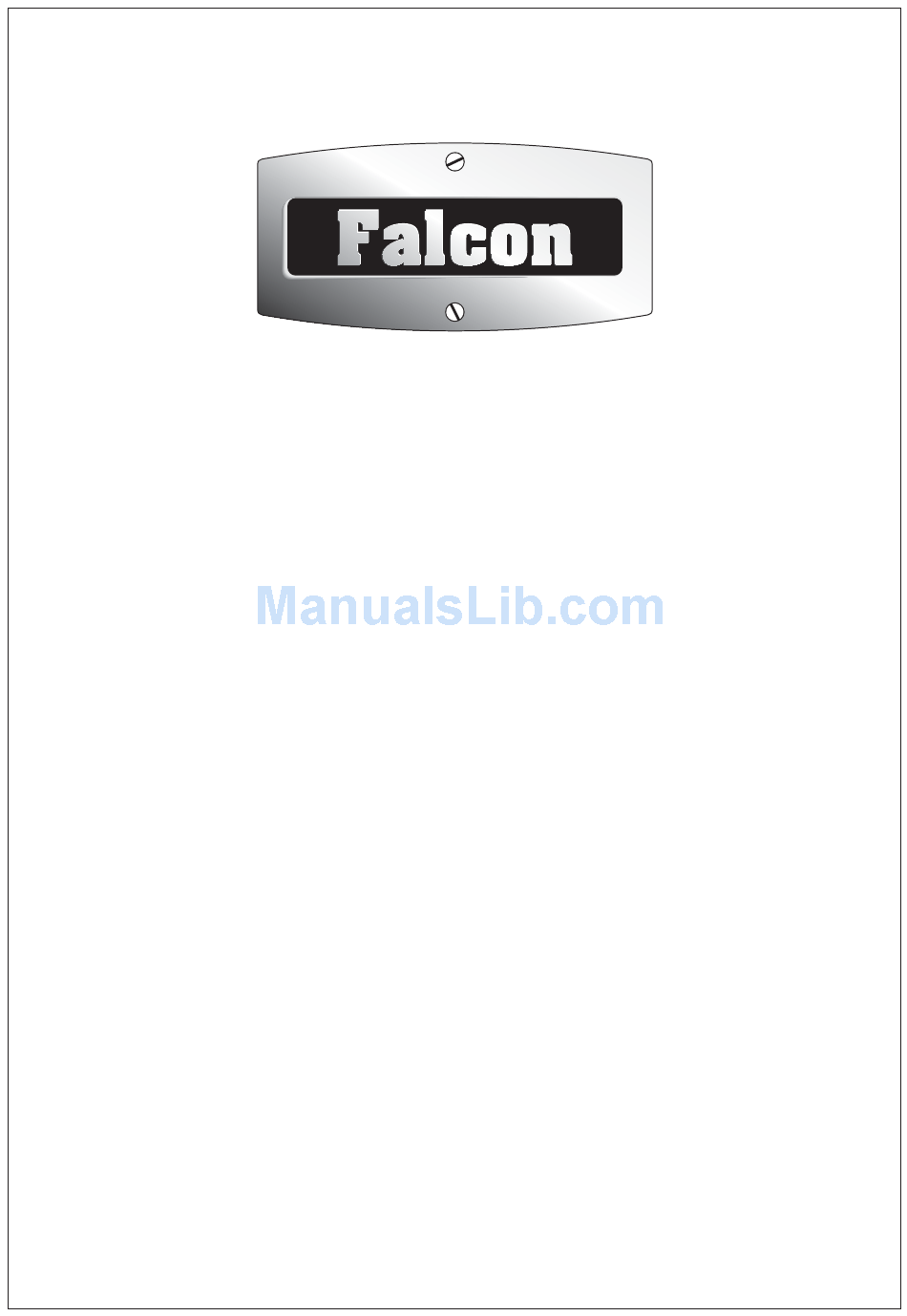

  • Page 1 PROFESSIONAL 110 Dual Fuel & Falcon 110 Dual Fuel Users Guide and Installation Instructions U1 238 02...

  • Page 2: Peculiar Smells

    Australia Be safe Warning Accessible parts will become hot in use. To avoid burns and scalds children should be kept away. You need clean fresh air - so does your cooker. Burner flames produce exhaust gases, heat and moisture. Make sure that the kitchen is well ventilated: keep natural ventilation holes open or install a powered cooker hood that vents outside.

  • Page 3: Table Of Contents

    Australia Contents Hotplate burners Page 4 The Griddle Page 4 Warmer Page 5 The Grill Page 6 The Ovens Page 7 The clock Page 7 Cooking using the timer Page 9 The ovens Page 10 Oven shelves Page 10 The Handyrack Page 11 Oven light Page 11...

  • Page 4: Hotplate Burners

    Australia Hotplate burners Avoid using unstable and misshapen pans that may tilt easily and pans with a very small base diameter e.g. milk pans, single egg poachers. The drawing by each knob indicates which The minimum pan diameter recommended is burner that knob controls.

  • Page 5: Warmer

    Australia Use the following heat settings as a guide for griddle cooking. High/medium: Drop scones, Bacon, Chops, Steak, Burgers. Don’t put it crossways - it will not fit properly and Medium/low: will be unstable. Potato cakes, Eggs, Fish cakes. Don’t put it on the Wok burner - it is not designed to fit the Wok burner pan support.

  • Page 6: The Grill

    Australia The Grill : Accessible parts may be hot when AUTION the grill is in use. Young children should be kept away. The low position, marked with the small flame symbol, is beyond high, not between high and off. Never close the grill door when the grill is on. The burner does not glow red - food cooks from the heat of the flame.

  • Page 7: The Ovens

    Australia The Ovens During use the appliance becomes hot. Care should be taken to avoid the touching heating elements inside the ovens. The clock must be set to the time of day before the ovens will work. See ‘The Clock’ section of these instructions for how to set the clock.

  • Page 8: Minute Minder

    Australia To time something that’s cooking (minute minder) Press and hold as above. At the same time press (-) or (+) until your required ‘cook period’ shows. Press and hold as above. At the same time press (-) or (+) until the time you want to cook for is shown, as below.

  • Page 9: Cooking Using The Timer

    Australia To activate the key lock Cooking using the timer Make sure that the clock is in manual mode and cancel any active programs. The timer can be used to turn just one oven or both on and off automatically. The start and stop time must be the same for both ovens but different cooking temperatures can be set.

  • Page 10: The Ovens

    Australia Both Ovens Oven shelves A cooling fan will start to run as soon as an oven is turned on. The fan will continue to run while the oven (or grill) is on and for about 10min after it is turned off. At low oven settings the fan may cycle on and off.

  • Page 11: The Handyrack

    Australia The Handyrack Oven light The maximum weight that can be held by the Handyrack is 5.5kg (12lb). It should only be used with the supplied meat tin, which is designed to fit the Handyrack. Any other vessel could be unstable.

  • Page 12: Oven Cooking Guide

    Australia Oven cooking guide LH Convection Oven RH Fan Shelf Oven Food Temp Position Temp Approximate Cooking Time Fish 190°C 180°C Fillets 15-20mins. Whole 15-20mins. Steaks according to thickness. ROAST MEATS Beef with bone 160°C 150°C 20-25mins. per 500g + 20-25mins. 200°C 190°C 15-20mins.
  • Page 13 Australia The oven control settings and cooking times given in the table over the page are intended to be used only as a guide. Individual tastes may require the temperature to be altered to provide a preferred result. When baking in the right hand fanned oven, use the minimum cooking time shown in the table.

  • Page 14: Cleaning Your Cooker

    Australia Hotplate burners Cleaning your cooker Some models have a separate trim ring, which fits on the burner head. Essential information The burner heads and caps can be removed for Before thorough cleaning isolate the electricity cleaning. Make sure they are absolutely dry supply.

  • Page 15: Control Panel And Doors

    Australia Grill When reassembling the Wok burner, turn over the large base ring and find the ‘D’ shaped area. The grill pan and grid should be washed in hot soapy water. After grilling meats or any foods that soil, leave to soak for a few minutes in the sink immediately after use.
  • Page 16 Australia The Ovens Removing the Oven Linings Some of the lining panels can be removed for The ovens have a removable panels which have cleaning and for cleaning behind. Remove the been coated with a special enamel that partly shelves first. cleans itself.

  • Page 17: Moving Your Cooker

    Australia Moving your cooker Switch off the electricity supply. The cooker is heavy, two people may be required to move it. The cooker is fitted with one roller at the front and two at the back. There are also two screw down levelling feet Open the grill door and right hand oven door so at the front.

  • Page 18: Troubleshooting

    Australia Troubleshooting Steam is coming from the oven When cooking foods with a high water content (e.g. oven chips) there may be some steam visible at the rear grille. Take care when opening the oven door as there may be a momentary puff of steam when the oven door is opened.
  • Page 19 Australia Troubleshooting Oven not coming on when automatic cooking Timer set correctly but oven knob left OFF by mistake? Is the key symbol ( ) showing in the display? See the Clock section of the instructions for more information on the key lock feature of the clock. Oven temperature getting hotter as the cooker gets older If turning the knob down has not worked or only worked for a short time then you may need a new thermostat.

  • Page 20: General Safety Instructions

    Australia General Safety Instructions This appliance must be installed by a Authorised The cooker should be serviced by a Authorised Person in accordance with the installation Person and only approved spare parts used. instructions. The installation must comply with Have the installer show you the location of the the relevant regulations and also the local gas cooker control switch.
  • Page 21 Australia Always keep combustible wall coverings or When the grill is on, do not use the top of the curtains etc. a safe distance away from your flue (the slot along the back of the cooker) cooker. For more detail see the Installation for warming plates, dishes, drying tea towels section of these instructions.

  • Page 22: Service And Spares

    Australia Service and spares Firstly, please complete the appliance details below and keep them safe for future reference - this information will enable us to accurately identify your particular appliance and help us to help you. Filling this in now will save you time and inconvenience if you later have a problem with your appliance. It may also be of benefit to keep your purchase receipt with this leaflet.

  • Page 23: Installation

    Australia Installation Dear Installer Before you start your installation, please complete the details BELOW. If your customer has a problem relating to your installation they will be able to contact you easily. Thank you Installer’s Name Installer’s Company Installer’s Telephone number...

  • Page 24: Ventilation Requirements

    Australia You must be aware of the following safety requirements & regulations Safety Requirements/Regulations Ventilation Requirements The cooker must be installed in accordance with Ventilation must be as specified by these instructions by an authorised person. ‘AS 5601/AG 601 - Gas Installations’. The installation must be in accordance with The room containing the appliance should AS 5601/AG 601 - Gas Installations, local gas...
  • Page 25 Australia You will need the following equipment to complete the cooker installation satisfactorily STABILITY BRACKET GAS PRESSURE FLEXIBLE GAS HOSE MULTIMETER TESTER (for electrical checks) If the cooker is to be A suitable hose and supplied with gas through restraining chain are a flexible hose, a stability supplied with the cooker.

  • Page 26: Positioning The Cooker

    Australia Positioning the Cooker Clearances (see AS 5601/AG 601) 1 Overhead - Measurement A 3 Side clearances - Measurement E The minimum height of any surface above the cooker 3 Where D, the distance from the periphery of the is 650mm above the hotplate nearest burner to a horizontal combustible surface is less than 200 mm, then E shall be 10 mm or more, or Range hoods and exhaust fans shall be installed in...

  • Page 27: Moving The Cooker

    Australia Checking the parts Repeat from the front and remove the front half of the poly base. Pull the drawer out to its furthest point. Lift it up and out. Griddle plate 3 pan supports Fit the levelling tool on the rectangular adjuster as shown below.

  • Page 28: Fitting The Stability Bracket

    Australia Unfold the rear edge of pack base tray. Carefully push Fitting the stability bracket the cooker backwards along the hardboard strips and into position. Take care not to damage the power A stability bracket and chain should be fitted when the cable.

  • Page 29: Gas Connection

    Australia To prevent strain on the connections to the cooker the Gas Connection restraining chain should be used. Securely fix the supplied wall bracket to the fabric of the building and The Gas supply needs to terminate with a down facing clip the supplied restraining chain to the bracket.

  • Page 30: Electrical Connection

    Australia Electrical Connection This appliance must be installed by a qualified electrician to comply with the relevant regulations and also the local electricity supply company requirements. This shows the single-phase connection. Make sure that the mains characteristics (voltage, These appliances are of type X with regard to nominal, power, etc.) match the ratings indicated on protection against over heating of the surrounding the data plate affixed to the lower right hand cooker...

  • Page 31: Fitting The Plinth

    Australia Current Operated Earth Leakage Fitting the plinth Breakers Loosen the 3 screws along the front bottom edge of the Where the installation is protected by a 30 milliamp cooker. Hook the central keyhole over the central sensitivity residual current device (RCD), the combined screw.

  • Page 32: Servicing Notes

    WARNING - SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Right hand tray Servicing Notes From the rear remove the screws securing the flue grille to the hotplate tray .
  • Page 33 WARNING - SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. 3. To Remove a Side Panel 7. To Change Grill Controller Disconnect from electricity supply. Remove the facia panel (see 1).
  • Page 34 WARNING - SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. 12. To Remove or Change a Hotplate Remove door handle from panel by unscrewing 2 retaining nuts.
  • Page 35 WARNING - SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. 24. To Remove LH Oven Elements. Fit new generator to cooker and replace leads. Reassemble in reverse order.

  • Page 36: Conversion To Another Gas

    WARNING - SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Conversion to another gas Conversion from Natural gas (1.0kPa) to LPG X Propane (2.75kPa) This conversion must be performed by a competent person.

  • Page 37: Circuit Diagram

    Australia Circuit Diagram Connection shown in circuit diagram is for single U Oven light bulbs phase. Ratings are for 230V 50Hz V Oven light switches A Active W Ignition switch B Warmer Switch C Clock D Left hand oven thermostat Wire colours F Right hand oven thermostat b blue...

  • Page 38: Technical Data

    Australia Technical Data This cooker is designed for use on Natural Gas:- A conversion for LP (LPG X Propane (2.75kPa)) gas is available. INSTALLER: Please leave these instructions with the User. DATA BADGE LOCATION: LOWER RIGHT HAND COOKER UPRIGHT (Remove storage drawer) Country of Destination: Australia Electric Natural gas...
