Page 1: User Guide

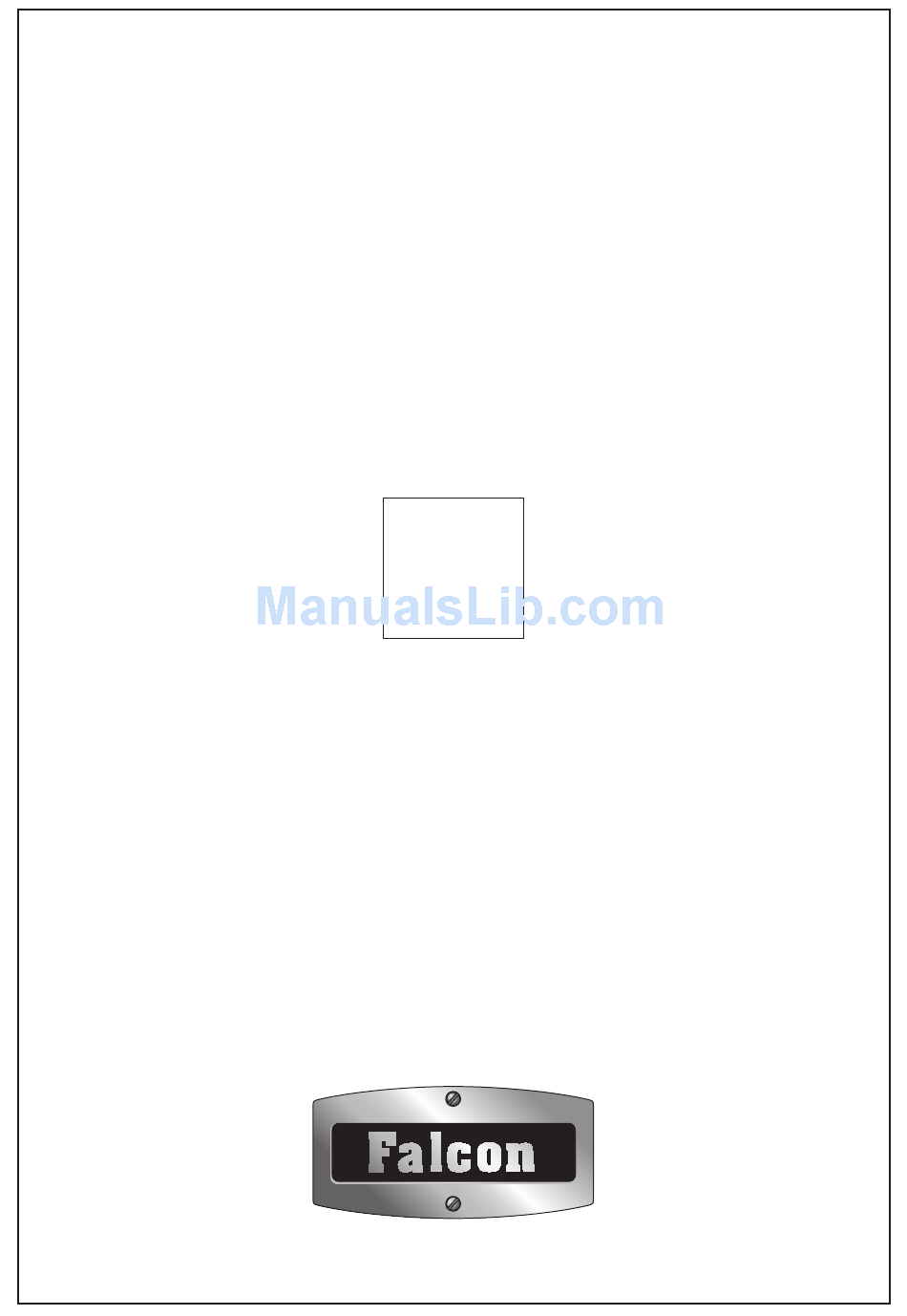

Professional ArtNo.000-0040 - Professional+ FXP logo Dual Fuel User Guide & Installation & Service Instructions ArtNo.000-0008 Falcon logo shaded U110102 - 01 Australia... -
Page 2: Table Of Contents
Contents Before You Start... Installation Installation and Maintenance Service and Spares Peculiar smells Dear Installer If you smell gas Provision of Ventilation Ventilation Location of Cooker Personal Safety Conversion Cooker Care Positioning the Cooker Cleaning Moving the Cooker Completing the Move Overview Levelling Hotplate Burners... -
Page 3: Before You Start
1. Before You Start... Ventilation Thank you for buying a Falcon cooker. It should give you many years of trouble-free cooking if installed and operated The use of a gas cooking appliance results in the production correctly. It is important that you read this section before of heat and moisture in the room in which it is installed. -
Page 4: Cooker Care
DO NOT store flammable materials in the storage DO NOT use water on grease fires and never pick tray or in the vicinity of this unit up a flaming pan. Turn the controls off and then smother a flaming pan on a surface unit by covering DO NOT spray aerosols in the vicinity of the cooker the pan completely with a well fitting lid or baking while it is on. -
Page 5: Overview

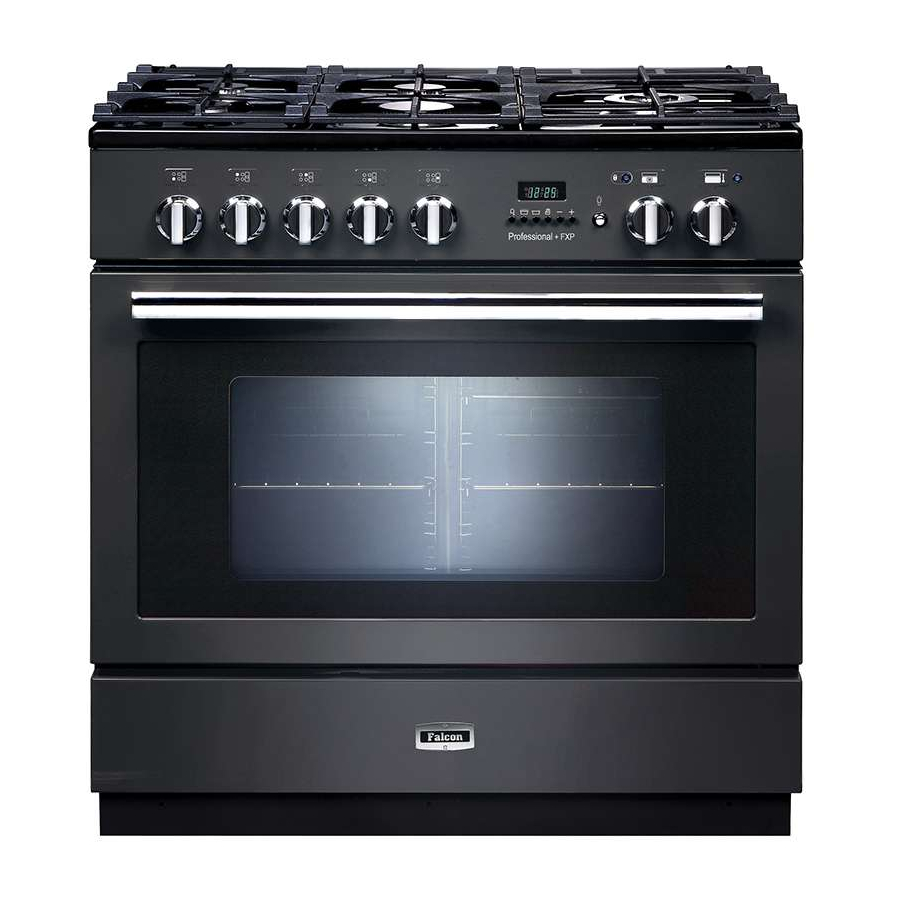

2. Overview Fig.2-1 Professional + FXP ArtNo.273-0001 - 90 Pro+ FXP annotated The dual fuel single cavity cooker (Fig.2-1) has the following Fig.2-2 features: ArtNo.270-0001 Proplus control to high 5 hotplate burners including a wok burner A control panel incorporating a timer A multi-function oven A storage drawer Hotplate Burners... -
Page 6: Wok Burner
The igniter should spark and light the gas. Keep holding the Fig.2-3 knob pressed in to let the gas through to the burner for about ArtNo.270-0003 Proplus control to low ten seconds. If, when you let go of the control knob, the burner goes out, then the FSD has not been bypassed. -
Page 7: The Wok Ring
The Wok Ring Fig.2-10 The wok ring is designed to fit a Professional 35 cm wok (available from our cookware collection – Part Code RM095). If you use a different wok, make sure that it fits the cradle. Woks vary very widely in size and shape. It is important that the wok sits down on the pan support –... -
Page 8: The Multi-Function Oven
The Multi-function Oven Fig.2-12 The oven is a multi-function oven (Fig.2-12). In addition to convection elements around the fans, it is fitted with extra heating elements, in the top of the oven and under the oven base. Take care to avoid touching the top elements when placing or removing items from the oven. - Page 9 the fierceness of the heat from the grill. The oven door Fig.2-13 should be kept closed while cooking is in progress, so saving energy. You will also find that the food needs to be watched and turned less than for normal grilling. Preheat this function before cooking.
-
Page 10: Operating The Oven
Operating the Oven Fig.2-14 The multi-function oven has two controls: a function selector and a temperature setting knob (Fig.2-14). ArtNo.270-0029 Pro+ FXP MF oven controls Turn the function selector control to a cooking function. Fig.2-15 shows the control set for convectional oven cooking. Turn the oven temperature knob to the temperature you need. -
Page 11: The Clock
The Clock Fig.2-20 You can use the 6-button timer (Fig.2-20) to turn the oven on and off. The clock must be set to the time of day before the oven will work. To set the time of day ArtNo.302-0002 - 6BC annotated Press and hold both the [C] and [D] buttons as shown in Fig.2-21. -
Page 12: Key Lock
AUTO is showing, you want to reset to manual Fig.2-30 Fig.2-31 cooking When cancelling an automatic setting, any cooking time already set must be returned to ( 0.00) before you can return to manual, by pressing the [B] button. ArtNo.302-0015 - Activating the key lock 1 pyro Key Lock ArtNo.302-0016 - Activating... -
Page 13: Accessories
Fig.2-36 Oven racks Each oven is supplied with: ArtNo.326-0013 - Full capacity shelf Two full capacity shelves (Fig.2-35) (Falcon) ArtNo.326-0004 - Cradle shelf Grill pan tray support (Fig.2-36) Two grill pans with trivets (Fig.2-37) Three energy saving shelves (Fig.2-38) Fig.2-37 Fig.2-38... -
Page 14: Storage
Storage Fig.2-44 The bottom drawer is for storing oven trays and other cooking utensils. It can get very warm, so do not store anything in it that may melt or catch fire. Never store flammable materials in the drawer. This includes paper, plastic and cloth items, such as cookbooks, plastic ware and towels, as well as flammable ArtNo.281-0138 - Drawer pulled out liquids. -
Page 15: Cooking Tips
3. Cooking Tips Cooking with a Multi-function Oven General Oven Tips Remember: not all modes are suitable for all food types. The The wire shelves should always be pushed firmly to the back oven cooking times given are intended for a guide only. of the oven. -
Page 16: Cooking Table
4. Cooking Table DocNo.031-0004 - Cooking table - electric & fan single cavity The oven control settings and cooking times given in the table below are intended to be used AS A GUIDE ONLY. Individual tastes may require the temperature to be altered to provide a preferred result. -
Page 17: Troubleshooting
5. Troubleshooting Hotplate ignition or cooktop burners faulty If there is an installation problem and I don’t get my original installer to come back to fix it who pays? Is the power on? You do. Service organizations will charge for their call Are the sparker (ignition electrode) or burner holes outs if they are correcting work carried out by your blocked by debris? - Page 18 An oven light is not working Fig.5-1 The bulb has probably burnt out. You can buy a replacement bulb (which is not covered under the warranty) from a good electrical shop. Ask for a 15 W 240 V lamp, FOR OVENS. It must be a special bulb, heat ArtNo.324-0005 Oven light bulb resistant to 300 °C (Fig.5-1).
-
Page 19: Cleaning Your Cooker
6. Cleaning Your Cooker Isolate the electricity supply before carrying out any major Fig.6-1 cleaning. Allow the cooker to cool. Never use paint solvents, washing soda, caustic cleaners, biological powders, bleach, chlorine based bleach cleaners, coarse abrasives or salt. Do not mix different cleaning products –... -
Page 20: Griddle
The Wok Burner Fig.6-2 ArtNo.311-0014 Wok burner details When reassembling the wok burner (Fig.6-2) turn over the large base ring and find the ‘D’ shaped area (Fig.6-3). Turn the head until the ‘D’ matches the one on the burner base. Flip the burner over once again and place it on the burner base. -
Page 21: Self-Clean Oven
Self-Clean Oven Fig.6-6 WARNING! Remove all cookware, shelves, and the shelf supports from the oven before using the self-clean ArtNo.272-0007 function. If the shelves and supports are left in the Prof+ pyro US - MF oven - oven they will discolour and become rough. Self clean setting WARNING! Using the self-cleaning function results in higher... - Page 22 When the door has unlocked turn the oven function control Fig.6-10 back to OFF. When the door has unlocked and the oven has cooled, use a damp cloth the clean the debris and ash. ArtNo.302-0005 - 6BC Stopping the oven 1 To cancel the self cleaning cycle To cancel the self-clean function, hold down the [D] button and then press the [–] button to set the timer back to ( 0.00).
-
Page 23: Cleaning Table
Cleaning Table Cleaners listed are available from supermarkets or electrical retailers as stated (Table 6-2). For enamelled surfaces use a cleaner that is approved for use on vitreous enamel. Regular cleaning is recommended. For easier cleaning, wipe up any spillages immediately. Hotplate Part Finish... -
Page 24: Installation
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. 7. Installation Service and Spares Firstly, please complete the appliance details below and keep them safe for future reference – this information will enable us to accurately identify the particular appliance and help us to help you. Filling this in now will save time and inconvenience if you later have a problem with the appliance. -
Page 25: Dear Installer
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Dear Installer Provision of Ventilation Before you start your installation, please complete the details This appliance is not connected to a combustion products below, so that, if your customer has a problem relating to evacuation device. - Page 26 MUST be fitted ArtNo.000-0025 Allen keys ArtNo.326-0013 - Full capacity shelf • Flexible gas hose (Falcon) • Gas pressure tester/manometer • Multimeter: For electrical checks Grill pan tray support 2 grill pans & trivets...
-
Page 27: Positioning The Cooker
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Positioning the Cooker Fig.7-1 The diagram (Fig.7-1) shows the minimum recommended distance from the cooker to nearby surfaces as given in AS 5601. 1. Overhead – Measurement A The minimum height of any surface above the cooker is 650 mm above the hotplate. -
Page 28: Completing The Move
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Now: Fig.7-3 Remove the storage drawer Remove the oven door Lower the two rear rollers Removing the Storage Drawer ArtNo.281-0138 - Drawer pulled out Pull the drawer out to its furthest point (Fig.7-3). Push the ends of the plastic clips –... -
Page 29: Levelling
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Fitting the Stability Bracket Fig.7-8 A stability bracket and chain MUST be fitted when the cooker is connected to a flexible gas supply. Unless properly installed, the cooker could be tipped by leaning on the door. -
Page 30: Gas Connection
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Gas Connection Fig.7-12 Must be in accordance with the relevant standards. The gas supply needs to terminate with a down facing bayonet. The inlet connector is located just below the hotplate level at the rear of the cooker. -
Page 31: Electrical Connection
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Electrical Connection Fig.7-14 This appliance must be installed by a qualified electrician to comply with the relevant regulations (AS/NZS 60335.2.6:2002) and also the local electricity supply company requirements. -
Page 32: Fitting The Plinth
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Checks Fig.7-18 Hotplate Check Check each burner in turn. There is a flame safety device (FSD) that stops the flow of gas to the burner if the flame goes out. For each burner, turn the control knob to the solid flame symbol. -
Page 33: Conversion To Propane Gas
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. 8. Conversion to Propane Gas DocNo.071-0003 - LP gas conversion - 90 single cavity Check in the ‘Technical Data’... -
Page 34: Set The Governor
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Set the Governor Fig.8-5 Unscrew the governor’s brass top. In the base of the brass top is a plastic snap-in converter device (Fig.8-5). -
Page 35: Servicing
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. 9. Servicing General Fig.9-1 1.1 Removing the control panel Disconnect the cooker from the electricity supply. Remove all control knobs. Open the oven door. Undo the screws holding the oven beak to the cooker and PRO+ remove (Fig.9-1). -
Page 36: Control Panel
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Control Panel 3.3 Replacing a hotplate burner electrode Disconnect the cooker from the electricity supply. 2.1 Replacing the oven light switch Lift off the pan grates and remove the burner cap. -
Page 37: Oven
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Oven Fig.9-5 4.1 Replacing the oven light bulb Disconnect the cooker from the electricity supply. Make sure the oven is cool. Open the oven door and ArtNo.324-0007 Unscrewing the bulb cover remove the oven racks. - Page 38 WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Remove the two screws holding the small retaining Fig.9-8 plate on the back of the cooker and remove the plate. Remove the pyrolytic phial.
- Page 39 WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. 4.8 Replacing the top and bottom elements Fig.9-12 Disconnect the cooker from the electricity supply. Bottom Element Pull the cooker forward to allow access to the cover boxes at the rear.
-
Page 40: Oven Door
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Oven Door Fig.9-17 5.1 Removing the oven door CAUTION! The door is very heavy. Take care when removing. To remove the door, open the door fully. - Page 41 WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. 5.4 Replacing the door glass panel Fig.9-21 Remove the oven door (see 5.1). To remove the inner door glass panel Carefully place the door, outer side up, on a clean level surface.
-
Page 42: Circuit Diagram
10. Circuit Diagram A2/B1 B2 Code Description Code Description Code Colour MF oven master switch Oven protect thermostat Blue MF oven drone switch Oven neon Brown Oven thermostat Oven light Black Oven front switch Oven light switch Orange Right-hand oven base element Door lock neon Right-hand oven top outer element Ignition spark generator... -
Page 43: Technical Data
11. Technical Data This cooker is designed for use on natural gas but can be converted to LP (Propane X (2.54 kPa)). A conversion kit from Natural Gas to Propane is supplied with the cooker. Installer: Please leave these instructions with the user. DATA BADGE LOCATION: Inside base drawer of cavity and on rear of the appliance.
