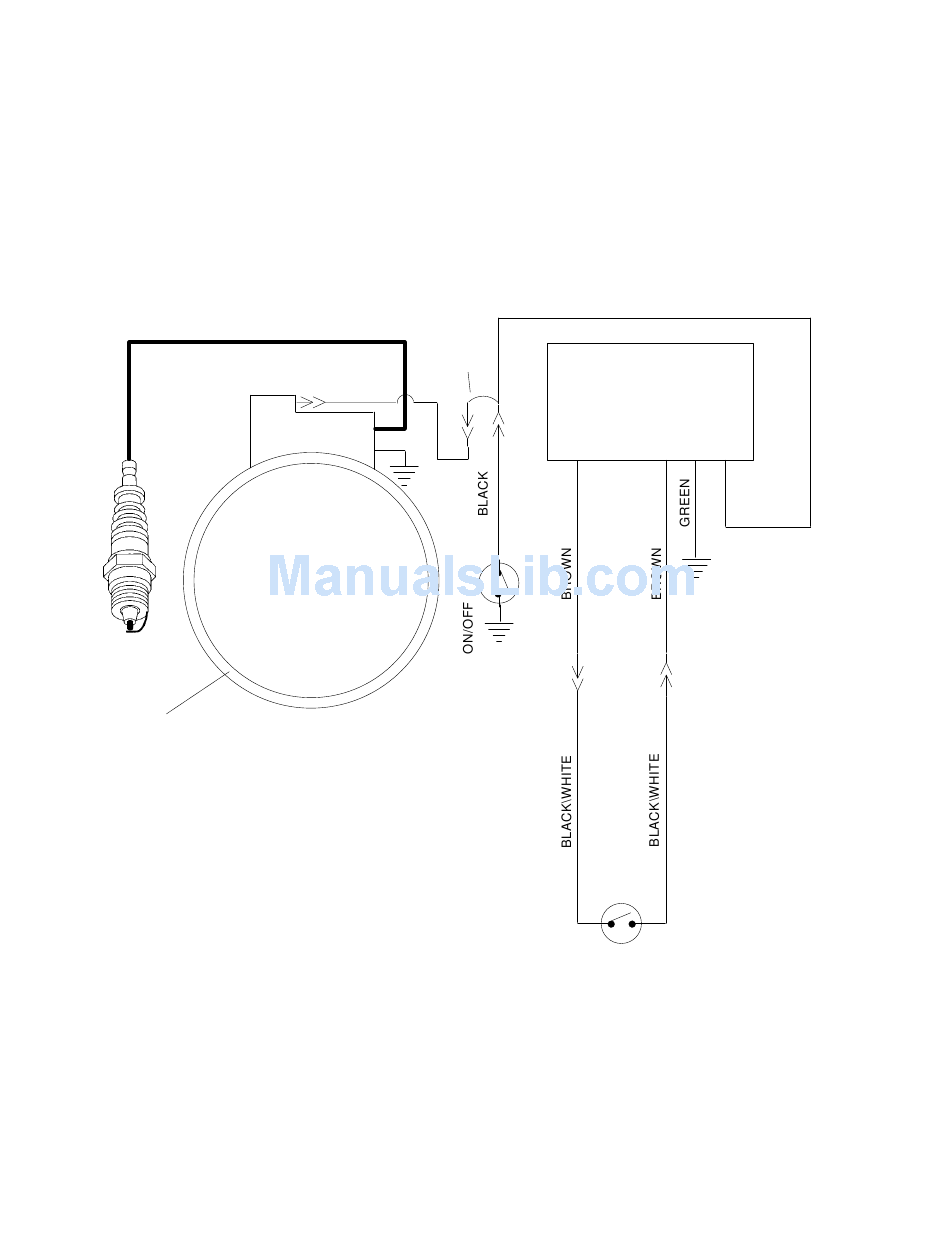

Wiring Schematics

HIGH TENSION LEAD
FLYWHEEL
Note: There are two types of ignition coils used
on the Kawasaki FE120 engine. On older models,
a coil is used in conjunction with an igniter. On
newer models, a combination igniter/ignition coil is
used which has the igniter built into the ignition
coil.
Electrical System
BLACK
BLACK
IGNITION COIL/
IGNITOR
ENGINE
MAGNETO

Late Model Kawasaki FE120 Engines

ON\OFF switch is open in the ON position
CLUTCH SWITCH is closed when the clutch is DISENGAGED
Page 5 – 2
RED
CONNECTOR/
INTERLOCK MODULE
A B C D E F
CLUTCH
SWITCH
RED
Greensmaster 1000/1600
