MOTION
The camera can detect the movement and display an alarm on the screen when movement is detected.
MOTION
OFF / ON Select to enable or disable the camera's motion detection. If ON is selected:
DET. SETTINGS
Use this submenu to adjust the mo ion detection's sensi ivity, detection dwell ime, Mo ion Es imate, and setup
a Signal Output Action:
- Sensi ivity: The smaller the movement you want to detect, the higher he sensi ivity value must be.
- Object Keep LV: Set the dwell time for how long motion is detected.
- Mo ion Es imate: Predicts possible direction once mo ion is disappeared by wall or curtain. The lower the
number, the more sensitive the camera will be to new motion once detected.
- Signal Out: If Alarm is enabled, when mo ion is detected, the camera can support 3.3V power output to
an external signal.

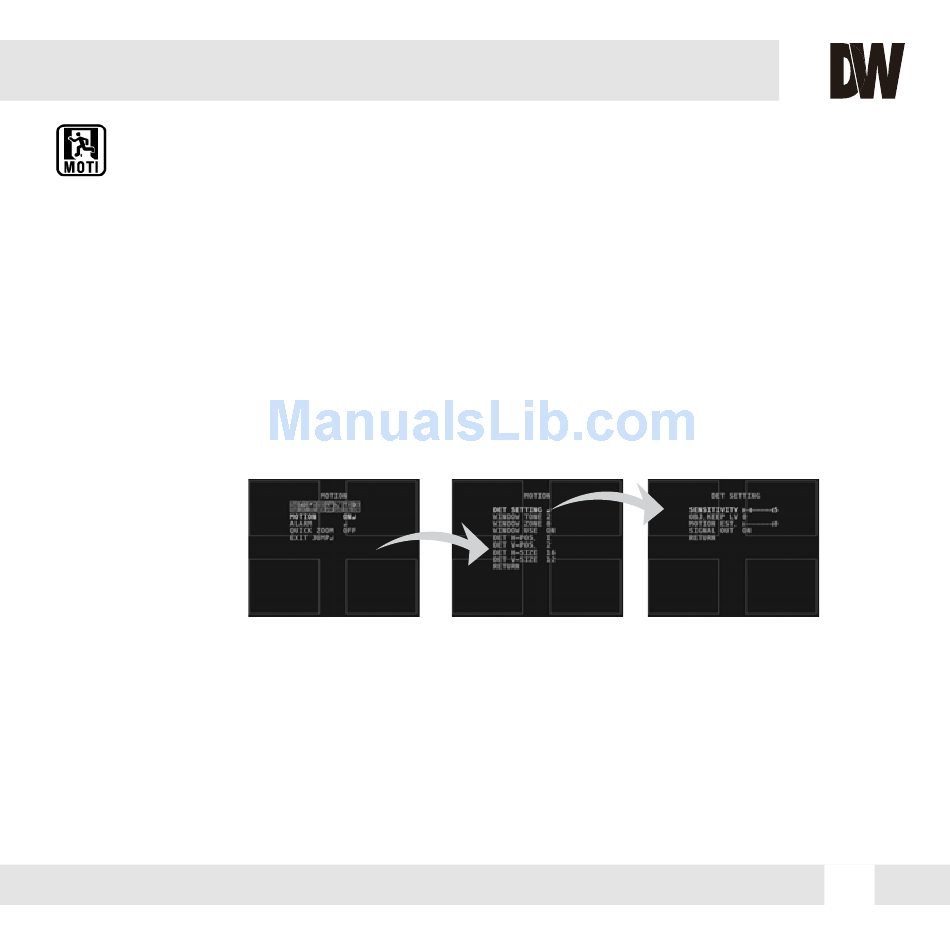

MOTION SET

- Window Tone: Set the size of the zone's borders.
- Window Zone: The camera supports up to 4 different motion detection zones.
- Window Use: Select which one of the motion areas to enable.
- DET H-POS: Move the Zone left or right. The higher the number, the zone will move to the right.
- DET V-POS: Move the Zone up or down. The higher the number, the zone will move down.
- DET H-Size: Adjust the zone's size horizontally. The higher the number, the right side panel
will move further to the right.
- DET V-Size: Reset the zone's size vertically. The higher the number, the bottom side panel
will move further down.
