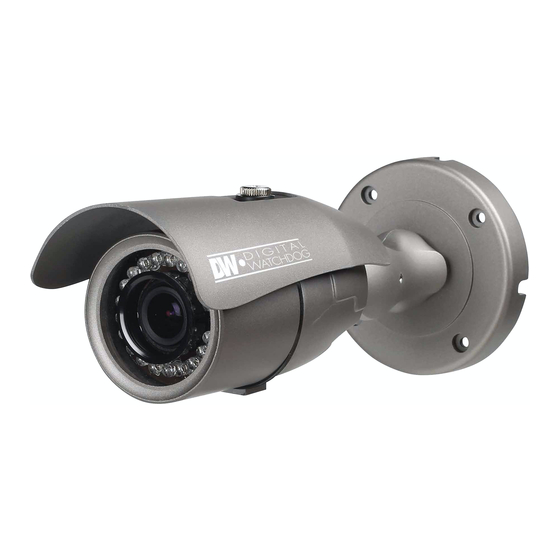

Digital Watchdog DWC-B7753TIR Manual

Analog high definition bullet camera
Hide thumbs Also See for DWC-B7753TIR:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Analog High Definition

Bullet Camera

DWC-B7753TIR
ABOUT MANUAL
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
08/17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DWC-B7753TIR and is the answer not in the manual?

Questions and answers

Related Manuals for Digital Watchdog DWC-B7753TIR

Summary of Contents for Digital Watchdog DWC-B7753TIR

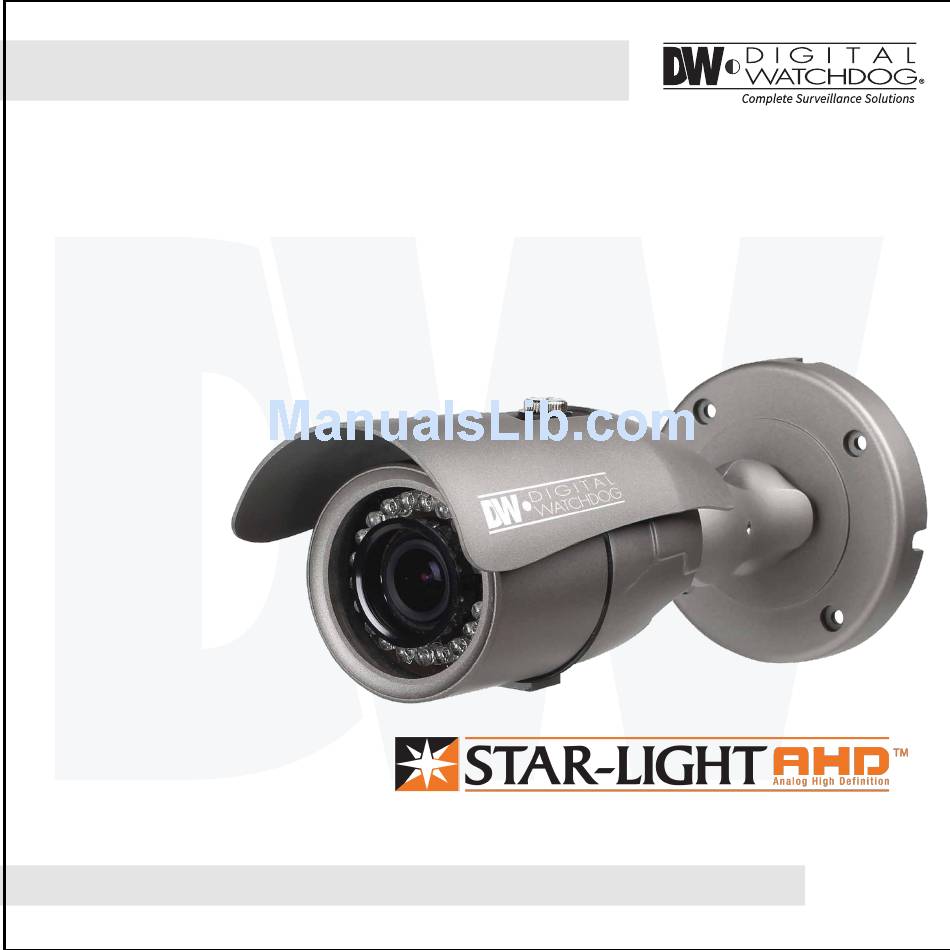

  • Page 1: Bullet Camera

    Analog High Definition Bullet Camera DWC-B7753TIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 08/17...
  • Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenance and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction Features Parts and Descriptions Dimensions Installation Inside the Box Installation Instructions Connecting to Monitors Adjusting the Camera Angle Module OSD Menu 11-26 Troubleshooting Warranty Information 28-29 Specifications 30-31...

  • Page 4: Features

    FEATURES* Analog High Definition (AHD) HD over Coax Technology STAR-LIGHT™ Super Low Light Technology 1/2.7” CMOS Sensor 1080P Resolution at 30fps 3.6mm Fixed Lens Smart IR™ with Intelligent Camera Sync. 50ft Range Smart DNR™ 3D Digital Noise Reduction Highlight Masking Exposure (HME) True Day/Night Mechanical IR Cut Filter Secondary Video-BNC Output OSD Control via Coax Cable using UTC...

  • Page 5: Parts And Descriptions

    PARTS & DESCRIPTION* Mounting Bracket Sunshield Adjusting Screws Sunshiled Cover Pan/Tilt Stopper Screw Lens...

  • Page 6: Dimensions

    DIMENSIONS IN MILLIMETERS (IN)* 62.2 63.8 74.5 95.5...

  • Page 7: Inside The Box

    INSIDE THE BOX* Included with Bullet Camera: User Manual L-Key Mounting Template 4 Machine Screws and 4 Dry Wall Anchors Analog High Definition Bullet Camera DWC-B6763TIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 06/2015...

  • Page 8: Installation Instructions

    INSTALLATION INSTRUCTIONS* 1. Using the mounting template or your own camera, mark and drill the necessary holes to mount the bracket to a wall or ceiling. 2. Pull all necessary wires through and make the proper connections. 3. Use the four (4) mounting screws to install the camera on the wall or ceiling.

  • Page 9: Connecting To Monitors

    CONNECTING TO MONITORS* Use the diagram below to connect to a Monitor or CRT Monitor properly. 12VDC CCTV Monitor Monitor Power Connection - 12VDC Voltage. All cameras are equipped with a second video output for on-site configuration.

  • Page 10: Adjusting The Camera Angle

    ADJUSTING THE CAMERA ANGLE* CAUTION : Do not rotate more than 360 Do not unnecessarily twist too many times.

  • Page 11: Module Osd Menu

    MODULE OSD MENU* LENS EXPOSURE BACKLIGHT WHITE BALANCE P-IRIS SHUTTER MANUAL / AUTO AUTO / 1/30~1/50000 / PUSH MANUAL X2~X30 LEVEL / AREA / DEFAULT / RETURN MANUAL 0 ~ 15 INDOOR / OUTDOOR STAR-LIGHT BLUE(0~100) / RED(0~100) AREA / DISPLAY / BLACK MASK / LEVEL / MODE / DEFAULT / RETURN OFF / AUTO X2 ~ X30 BRIGHTNESS...
  • Page 12 LENS Manual mode supports the fixed board lens or the manual iris lens. MANUAL If the camera includes a P-Iris lens, you can select this option to adjust the lens and iris P-IRIS settings. If P-Iris is selected, adjust the following: MODE: Select from AUTO or MANUAL.
  • Page 13 EXPOSURE SHUTTER Set the camera’s shutter speed from the available options (AUTO/1/30~1/50000/x2~x30/FLK) If Iris is set to AUTO in the lens menu, the camera’s shutter will be set automatically and the values in this menu will not be adjustable. If Iris is set to AUTO in the lens menu, the camera’s shutter speed will be deactivated.
  • Page 14 EXPOSURE (CONT.) DYNAMIC RANGE COMPRESSOR DRC enables dark areas in images to become more visible without overexposing the bright areas to create one perfect image. Select from: OFF / ON / AUTO. If ON is selected, adjust the DRC value from 0 ~ 8. NOTE: If WDR or DEFOG are enabled, the DRC settings are set automatically and will not be available for adjustment.

  • Page 15: Blc Back Light Compensation

    BACKLIGHT BACK LIGHT COMPENSATION If BLC is selected, adjust the size nad position of the mask: - Level: Set the BLC levels LOW / MIDDLE / HIGH - AREA: Use the joystick controller on the camera’s board to adjust the zone’s position. Press the enter key and use the joystick controller to adjust the zone’s size.

  • Page 16: White Balance

    WHITE BALANCE Auto Tracking White Balance Control mode compensates for color temperature changes between 2400K and 11000K PUSH Push fixes the white balance based on the current lighting automatically. To use this function, press the ENTER key for five (5) seconds. MANUAL Control the white balance manually by changing RED and BLUE.
  • Page 17 DAY & NIGHT AUTO / Day/ Night switch is based on the CDS levels (IR models) or AGC levels (non-IR models). COLOR / The camera always stays in day/color mode. B&W/ The camera always stays in night/B&W mode. The camera’s Day & Night settings are set according to an external IR LED board. AUTO For cameras with no IR LED Built-in: - D ->...
  • Page 18 DAY & NIGHT (CONT.) COLOR If COLOR mode is selected, the camera’s display will always appear in color, regardless of the lighting condition. - BURST: Select to enable or disable color burst when the camera switches from color to B/W. - IR SMART (0~15): Enable Smart IR and set the level.
  • Page 19 Smart DNR 3D DIGITAL NOISE REDUCTION 3D-DNR reduces the noise on the screen in low light conditions and allows for clearer images, even at night. 2DNR Set the Digital Noise Reduction values for general illumination. Select from LOW / MIDDLE / HIGH. If the 2DNR settings are set to HIGH, image sharpness may be affected.
  • Page 20 SPECIAL CAM. TITLE Add a name to the camera. Set the title by using the OSD joystick. D-EFFECT FREEZE Freeze image from the camera at the selected moment. MIRROR Reflects the camera: OFF / MIRROR / V-FLIP / ROTATE NEG. IMAGE Display the camera’s view in negative colors.
  • Page 21 SPECIAL (CONT.) MOTION - ALARM: VIEW TYPE: When motion is detected, select from the following display options: 1. OFF - do not display motion alarm 2. ALL - Show all motion zones when motion alarm is detected. 3. BLOCK - show the area where motion is detected as a solid block. 4.
  • Page 22 SPECIAL (CONT.) PRIVACY - SELECT: The camera supports up to 4 separate privacy zones. Select which one to adjust. - DISPLAY: There are three types of privacy masks you can apply. Select from MOSAIC, INV., or COLOR. - MOSAIC: The privacy mask will appear as a mosaic over the camera’s image. - INV.: The privacy mask will appear as a negative of the image behind it, reversing the colors and brightness.
  • Page 23 SPECIAL (CONT.) LANGUAGE Select from the available options: English, Chinese 1, Chinese 2, German, French, Italian, Spanish, Polish, Russian, Portuguese, Dutch, Turkish, Korean, Japanese, Arabic, or Hebrew. DEFECT - LIVE DPC: - AGC LEVEL: Set the AGC levels for the Live DPC.
  • Page 24 SPECIAL (CONT.) DEFECT (CONT.) - WHITE DPC - POS / SIZE: Set the DPC Zone. Use the joystick’ controller on the camera’s board to adjust the zone’s position. Press the enter key and use the joystick controller to adjust the zone’s size. - START: Press START to begin the DPC test.

  • Page 25: Video Out

    ADJUST SHARPNESS Set the sharpness of the image. The Sharpness values can be increased or lowered according to teh AGC levels in the camera’s view. If AUTO is selected, adjust the following values: - LEVEL: Set the sharpness level. The higher the number, the sharper the image will appear. - START AGC: Select the AGC value where the image’s sharp lines may start to appear smeared in low light.
  • Page 26 ADJUST (CONT.) COMET When the camera is connected to the VMAX AHD DVR series, enabling the COMET feature enhances the camera’s CVBS signal. The COMET function reduces the noise at high frequency as well as provide high resolution clear image quality. If the camera is connected to a non-AHD DVR, enabling the COMET function will only turn the camera’s image to B/W.
  • Page 27 TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the camera’s OSD menu. Check the power supply and make sure the camera has the proper voltage and current.

  • Page 28: Warranty Information

    WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warranter”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warranter will repair or replace the unit with a new or refurbished product at its option at no charge.
  • Page 29 This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 5436 W. Crenshaw Street...

  • Page 30: Specifications

    SPECIFICATIONS* VIDEO Image Sensor 1/2.7” CMOS Sensor Active Pixels 1920(H) x 1080(V) Scanning System Progressive scan Frequency 60Hz/50Hz Signal Technology 2.0 Megapixel AHD Synchronization Internal Resolution 1920x1080 (1080p) Minimum Scene Illumination F1.4 (30IRE): 1.0Lux [Color] F1.4 (30IRE): 0 Lux [B&W] S/N Ratio 55dB Video Output...
  • Page 31 SPECIFICATIONS* OPERATIONAL (CONT.) Digital Noise Reduction Off, Low, Middle, High White Balance Auto / Push / Manual / AWB Day and Night Auto / Color / B/W / EXT Auto Gain Control 0 ~ 15 Motion Detection Privacy Zones 4 Privacy Zones Sharpness 0 ~ 10 Gamma...
  • Page 32 5436 W Crenshaw St. Tampa, FL 33634 Tel : 866-446-3595 / 813-888-9555 Fax : 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours : Monday-Friday 9:00am to 8:00pm EST...
