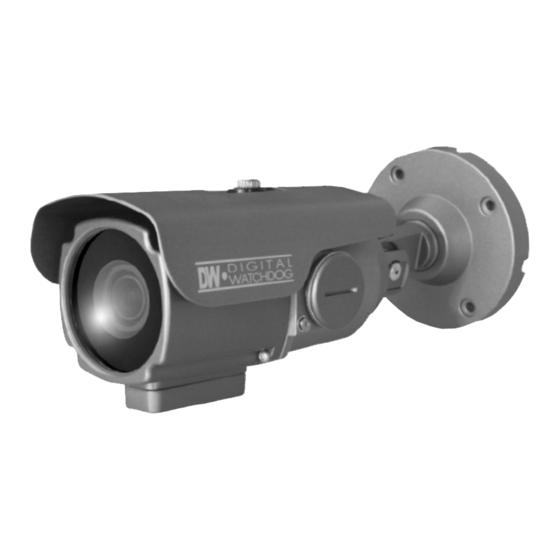

PIXIM Bullet Camera DWC-B1365T ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 07062012...
Page 2
PRECAUTIONS Do not open or modify. Do not open the case except during maintenence and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
Page 3
Table of Contents TABLE OF CONTENTS Introduction Features Parts and Descriptions Dimensions Installation Inside the Box Mount Installation Instructions Connecting to Monitors Control Board Adjusting the Camera Lens Adjusting the Camera Angle Module OSD Menu 13-24 Troubleshooting Warranty Information 26-27 Specifications 28-29...
Page 4
FEATURES* 1/3” PIXIM Seawolf CMOS Sensor 690 Horizontal TV Lines 3.3~12mm Varifocal Auto Iris Lens TDN (True Day and Night/IR Cut Filter) 3D-DNR (3D Digital Noise Reduction) Powerful Wide Dynamic Range Ultra Low Light Sensitivity Smear Canceling Circuit AGC / BLC / AWB Programmable Privacy Zones (6) &...
Page 5
PARTS & DESCRIPTION* RS 485 NO IR Front Case Double Arm Bracket Zoom & Focus Housing Second Video-BNC Output Connector Sunshield Power Input Connector (Dual Voltage) Lens Assembly Screw Rear Case Mounting Screw Control Board Set Screw Control Cap Set Screw...
Page 7
INSIDE THE BOX* Included with B1 Bullet Camera User Manual L-Key Mounting Template Double-Sided TORX-T20 Hex Key 4 Machine Screws and 4 Dry Wall Anchors Secondary Video-BNC Cable Bullet Camera DWC-B1363D DWC-B1363TIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference.
Page 8
SURFACE MOUNT INSTALLATION INSTRUCTIONS* Use the 4 mounting screws to install the camera on the wall or ceiling. Then, follow the next step on pages 9-12. NPT 3/4” Pipe *Installation Using a Junction Box *Note: Electrical junction box and required screws are sold separately.
Page 9
CONNECTING TO MONITORS* Use the diagram below to connect to a Monitor or CRT Monitor properly. 12VDC/24VAC CCTV Monitor Left Right Down Second Video Output Monitor Power Connection - 12VDC/24VAC Dual Voltage (Auto Polarity Detection and Protection) All cameras are equipped with a second video output for on-site configuration.
Page 10
CONTROL BOARD* Joystick: Controls the OSD menu. Secondary Connector: Video Output Connector for On-Site Configuration Remove clear plastic ring from the control cap. Turn control cap counter-clockwise until cap separates completely from the camera body.
Page 11
ADJUSTING THE CAMERA LENS* Follow the instructions provided below to make any lens adjustments. FOCUS ZOOM To adjust the field of view, use the L-Key to turn the zoom screw (located on the bottom of the camera) counter-clockwise to zoom in, or clockwise to zoom out. Adjust the focus the same way as descriped above AFTER the desired zoom position is established.
Page 12
ADJUSTING THE CAMERA ANGLE* CAUTION : Do not rotate more than 360 Do not unnecessarily twist too many times.
Page 13
MODULE OSD MENU* EXPOSURE (EXP) COLOR (RGB) DAY NIGHT (D&N) FUNCTION (FUN) WB MODE D&N MODE MIRROR LENS OFF / MIRROR / V-FLIP / ROTATE AWC / ATW / PUSH LOCK / MANUAL AUTO / COLOR / BW MANUAL / DC COLOR GAIN BW BURST SHARPNESS...
Page 14
EXPOSURE (EXP) LENS Manual iris or Fixed board lens. MANUAL: FOCUST METER helps you to find the clear focus. When the dark line alligns with the gray bar, the camera will be adjusting the focus. When it’s set on the maximum, you get the clear image.
Page 15
EXPOSURE (EXP) AE PREFERENCE Auto Exposure Set AE PREFERENCE depending on the environment in which the camera is installed. Select from the following options: INDOOR / OUTDOOR Backlight compensation prevents subjects in defined areas from appearing too dark when backlighting is present. If BLC is enabled, adjust the SHADOW GAIN as desired.
Page 16
EXPOSURE (Wide Dynamic Range) Enables the camera to capture clear images in the same frame, even when there are both very bright and very dark areas in the same field.Select from the following options: LOW / NORMAL / MEDIUM(Factory Default) / HIGH/ CUSTOM WDR OFF WDR ON If CUSTOM is selected, adjust the Bias / Limit as you wish.
Page 17
EXPOSURE EXPOSURE (EXP) AGC (Auto Gain Control) Auto Gain Control automatically adjusts the video gain to enhance picture brightness in low light conditions.The higher number the better sensitivity. However, higher settings mean more digital noise in the image. Select one of the options. LOW / MEDIUM / HIGH(Factory Default) STARLIGHT Starlight mode automatically activates slow shutter function when the...
Page 18
EXPOSURE (EXP) METER ZONE Defines an area in the image where the AE and WB settings will be applied. This option is useful when a camera is installed in an environment such as an ATM. You can setup up to two (2) zones. 1.
Page 19
COLOR (RGB) WB MODE Select on of the options: AWC - Auto White Balance Control mode compensates for color temperature changes between 2000K and 18000K. ATW- Auto Tracking White Balance Control mode compensates for color temperature changes between 2500K and 9500K. It is recommended to set the low level to 2.5K, and the high tp 11K.
Page 20
DAY NIGHT (D&N) D&N MODE AUTO If AUTO is selected, the camera will automatically switch between color and B/W depending on the levels of light available. The camera will stay in color mode when there is enough light. The camera will switch to B&W at night or other low light environments.Please define the following settings: READ TIME (3~255): Time interval delay before switching from day mode...
Page 21
FUNCTION (FUN) MIRROR Flips the imge horizontally / vertically or both(rotate). OFF / MIRROR / V-FLIP / ROTATE SHARPNESS Sets the image’s sharpness. The higher the number, the sharper lines and details will appear -8~8 (-4 Default) in the image. However, the sharper the image, the more digital noise will be visible.
Page 22
MOTION (MOT) MOTION The camera can detect the movement and display an alarm on the screen when movement is detected. OFF / ON If Motion is enabled, you can setup the ACTIVITY THRESHOLD. This setups the camera’s sensitivity to movement. The higher the number the camera will be more sensitive to smaller movements.
Page 23
PRIVACY (PRI) PRIVACY MASK You can hide some parts of the screen for privacy purposes. A total of 6 privacy masks are available. To enable Privacy Zone Masking, Select ON. 1. Select a mask (1~6) and enable by selecting ON 2.
Page 24
SYNC (SYC) INT1 INT2 Select INTERNAL if camera uses DC power, or if L/L is not required. Please note this setup option is only for NTSC version. **Consult your installer for additional information and assistance with configuration.** INT1: SYNC to 59.94Hz INT2: SYNC to 60.01Hz In PAL, INT1 &...
Page 25
SET-UP (SET) PC CONTROL - CAMERA ID (1~255) You can assign ID number for the camera (1 by Default). - PROTOCOL (PELCO-D by Default) - BAUD RATE (2400 / 4800 / 9600 / 19200) Adjust data communication speed. Default is 9600. TITLE Select if you want to display the camera’s title on screen.
Page 26
SET-UP (SET) OMNI LENS** You can set OMNI LENS menus when you use Omni Focus Lens. When OMNI LENS is set ON , you can set the folloing sub-menus. - ALARM works with MOTION DETECT fuction. When motion is deteced, camera gives an alaram.
Page 27
EXIT (EXT) EXIT Exit the OSD without saving. SAVE & EXIT Exit the OSD after saving the current settings. FACTORY SET Go back to factory default.
Page 28
TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the camera’s OSD menu. Check the power supply and make sure the camera has the proper voltage and current.
Page 29
WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warrantor will repair or replace the unit with a new or refurbished product at its option at no charge.
Page 30
This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 5436 W. Crenshaw Street...
Page 31
SPECIFICATIONS* VIDEO Image Sensor 1/3" PIXIM Nightwolf CMOS Sensor Total Pixels 768 (H) x 548 (V) Scanning System 525 Lines, 2 : 1 Interlace Frequency 15.734KHz (H), 59.95Hz (V) Synchronization Internal / Line Lock Horizontal Resolution 690 Effective Horizontal TV Lines Minimum Illumination F1.2 (30IRE): 0.22Lux [Color] F1.2 (30IRE): 0.01 Lux [B&W]...
Page 32
SPECIFICATIONS* OPERATIONAL White Balance Mode ATW/ PUSHLOKC / MANUAL / AWC/ NORMAL Day & Night AUTO / COLOR / B&W Mirror OFF / MIRROR / V-FLIP / ROTATE Sharpness -8 ~ 8 3D Digital Noise Reduction OFF/ LOW/ MEDIUM/ HIGH Digital Zoom x1 ~ x8 Privacy Zones...
