STAR-LIGHT
T T
TAR-LIGHT
User's Manual
's Manual
Ver.
Ver.
Before installing and using the camera, please read this manual carefully.
nstalling and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
to keep it handy for future reference.
Bullet Camera
Bullet Camera
TM
TM

Advertisement

Table of Contents
loading

Summary of Contents for Digital Watchdog STAR-LIGHT DWC-B6263WTIR

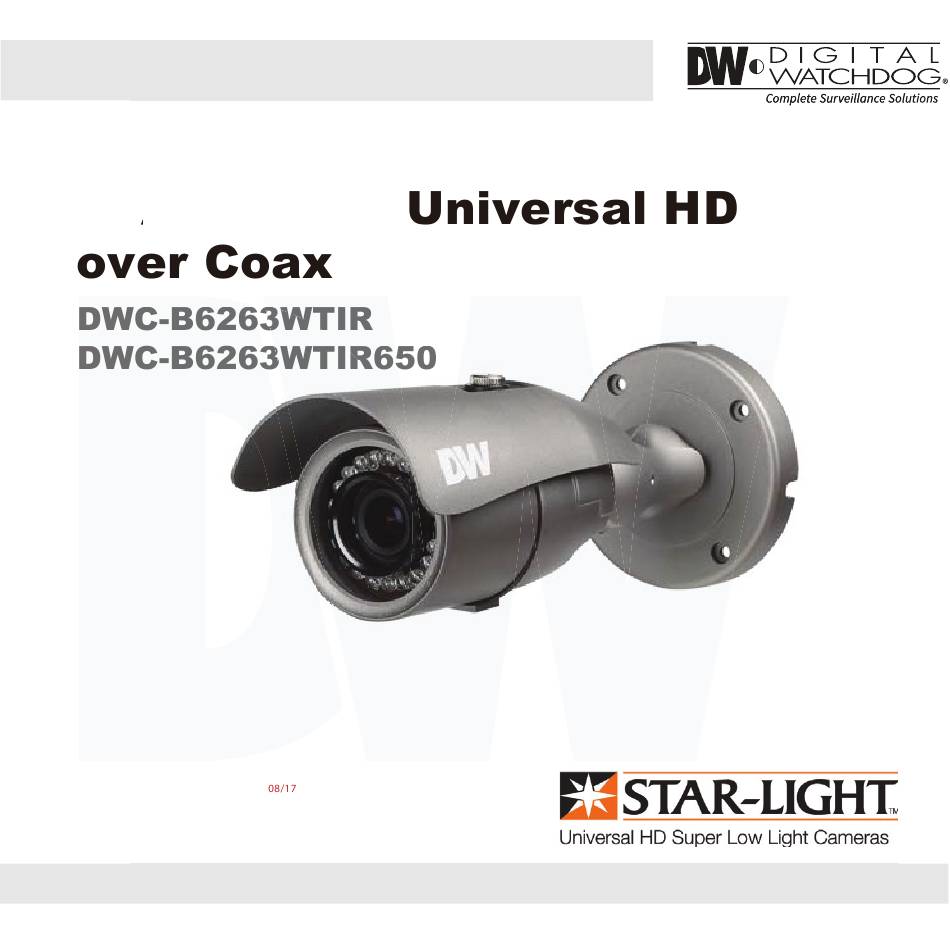

  • Page 1 STAR-LIGHT TAR-LIGHT Bullet Camera Bullet Camera User’s Manual ’s Manual Ver. Ver. Before installing and using the camera, please read this manual carefully. nstalling and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. to keep it handy for future reference.
  • Page 2 Index INTRODUCTION Safety Information Part Name Dimension INSTALLTION Installation Connecting to Monitors Control Board Adjusting the Camera angle OSD MENU Menu Tree OSD Menu - OSD Menu - OSD Menu - Menu - OSD Menu - OSD Menu - OSD Menu - OSD Menu - Exit APPENDIX Troubleshooting...
  • Page 3: Safety Information

    Safety Information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that dangerous voltage This exclamation point symbol is intended to alert the consisting a risk of electric shock is present within user to the presence of important operating and...
  • Page 4 Safety Information 7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock. 8. If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately disconnect the power source and contact the service center. Continued use in such a condition may cause fire or electric shock.
  • Page 5: Important Safety Instructions

    Important Safety Instructions 1. Read these instructions. All these safety and operating instructions should be read before the product is installed or operated. 2. Keep these instructions. The safety, operating and use instructions should be retained for future reference. 3. Heed all warnings. All warnings on the product and in the operating instructions should be adhered to.
  • Page 6: Disposal Of Old Appliances

    Important Safety Instructions 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
  • Page 7 Features...
  • Page 8 Part name Sunshield Adjusting Screws Sunshiled Cover Pan/Tilt/Rotate Stopper Screw Mounting Bracket Cables: RS485, UTP, Alarm Output IR Module Power Cable Lens BNC Cable OSD Joystick Front Case UTP/Coax switch Test Video Output...
  • Page 9 Dimension Unit : 92.2 83.5 93.5 222.5...
  • Page 10 Unit : 224.5 81.7 96.7 73.7...
  • Page 11: Product And Accessories

    Product & Accessories Please check if all the camera and accessories are included in the package. Camera Torx Wrench DC Plug Cable Test Video Cable Screw & Template Sheet Manual Plastic Anchor-4pcs NOTE : The ‘Test Video Cable’ is used to test the camera by connecting to a portable display.
  • Page 12: Installation Instructions

    Installation- Instructions Using the mounting template or your own camera, mark and drill the necessary holes to mount the bracket to a wall or ceiling. Pull a necessary wires through and make the proper connections. Use the four mounting screws to install the camera on the wall or ceiling.
  • Page 13 Connecting to (Coax) Use the diagram below to connect to an Universal DVR or CRT Monitor properly. Coax Video Output Mode (Default Mode) 12VDC/24VAC COAX UNIVERSAL DVR Test Video Output UTP/Coax switch Monitor COAX - Power Connection - 12VDC/24VAC Dual Voltage(Auto Polarity Detection and Protection) - All cameras are equipped with a test video output for on-site configuration.
  • Page 14 Connecting to (UTP) Use the diagram below to connect to an Universal DVR or CRT Monitor properly. UTP Video Output Mode 12VDC/24VAC Balun UNIVERSAL DVR (Receiver at DVR side) Test Video Output UTP/Coax switch Monitor COAX - Power Connection - 12VDC/24VAC Dual Voltage(Auto Polarity Detection and Protection) - All cameras are equipped with a test video output for on-site configuration.
  • Page 15: Control Board

    Control Board Test Video Connector: Video Output Connector for On-Site Configuration Joystick: Controls the OSD menu. RS 485 ALARM BK D+ BLUE + WH D- WHITE - - OSD Joystick : The function setting and video output can be adjusted with OSD joystick. (default : HD-A) Image Mode Switches to HD-TVI mode when press OSD Joystick to left 5sec or longer.
  • Page 16: Adjusting The Camera Angle

    Adjusting the Camera angle Pan 360˚ Rotate 360˚ Tilt 90˚ Warning: - Do not rotate more than 360 ˚ - Do not unnecessarily twist too many times.
  • Page 17: Osd Menu Tree

    OSD Menu Tree NOTE : The function setting can be adjusted with both switch (OSD joystick) and remote control through RS485 or UTC. In case of camera without OSD joystick, it can be adjusted with coaxial (UTC) only. EXPOSURE MOTION LENS MANUAL / AUTO MOTION...
  • Page 18 OSD Menu Exposure LENS MANUAL : Manual mode supports the fixed board lens or the manual iris lens. AUTO : AUTO mode sets the camera’s iris automatically. EXPOSURE LENS LENS AUTO LEVEL BACKLIGHT BRIGHTNESS SHUTTER AUTO DEFOG FOCUS ADJ RETURN STARLIGHT 3D DNR HIGH...
  • Page 19 OSD Menu Exposure BACKLIGHT HME HIGHLIGHT MASKING EXPOSURE HME allows objects to appear clearly on the screen by EXPOSURE masking extremely bright areas. To setup HME, set the level and color. The lower the setting, the darker the LENS AUTO BACKLIGHT masking areas have to be.
  • Page 20 OSD Menu Exposure EXPOSURE DEFOG LENS AUTO MODE AUTO BACKLIGHT LEVEL ____ RETURN DEFOG STARLIGHT 3D DNR HIGH EXIT JUMP DRC ( DYNAMIC RANGE COMPRESSOR ) DRC enables dark areas in images to become more visible without overexposing the bright areas to create one perfect image.
  • Page 21: Color Gain

    OSD Menu Color WB MODE COLOR WHITE BAL. WHITE BAL. AUTO C-TEMP 5000K COLOR GAIN R-GAIN B-GAIN EXIT JUMP RETURN AUTO Auto Tracking White Balance Control mode compensates for color temperature changes between 2500K ˚ and 12000K ˚. AUTO-EX Auto White Balance Control mode compensates for color temperature changes lower than 2500K ˚...
  • Page 22 OSD Menu Day & Night DAY/NIGHT MODE AUTO AGC THRES ____ AGC MARGIN ____ CDS THRES CDS MARGIN EXTERN SW EXT LED AUTO DELAY SMART IR EXIT JUMP MODE AUTO : Day/ Night switch will be based on the CDS levels. COLOR : The camera always stays in day/color mode.
  • Page 23 OSD Menu Function FUNCTION SHARPNESS GAMMA 0.55 MIRROR FLIP EXIT JUMP SHARPNESS 0 ~ 10 - Sets the image sharpness. The higher the number, the sharper the image. GAMMA 0.45 ~ 0.75 - Select the desired gamma level. 0.55 is default setting. MIRROR / FLIP MIRROR : Reflects the camera horizontally.
  • Page 24 OSD Menu Motion The camera can detect movement and display an alarm on the screen. when movement is detected. MOTION DET WINDOW MOTION WINDOW USE DET WINDOW WINDOW ZONE DET TONE DET H-POS DET V-POS MDRECT FILL DET H-SIZE SENSITIVITY DET V-SIZE MOTION OSD RETURN...
  • Page 25 OSD Menu Privacy You can hide some parts of the screen for privacy masking. A total of 16 different privacy masking zones are available. The cameras support square privacy masks or advanced polygon masks. PRIVACY PRIVACY ZONE NUM ZONE DISP H-POS V-POS H-SIZE...
  • Page 26 OSD Menu Setup COMMUNICA SETUP CAM ID BAUDRATE 9600 COMMUNICA SET DONE CAM TITLE RETURN IMAGE RANGE FULL FREQ 60Hz LANGUAGE INITIAL EXIT JUMP COMMUNICATION Adjust the camera’s ID and Baudrate. Default Protocol is Pelco-D. - CAM ID : Provide an ID number for the camera (0 ~ 255). - BAUDRATE : 9600bps is default.
  • Page 27 OSD Menu Setup SETUP COMMUNICA CAM TITLE IMAGE RANGE FULL FREQ 60Hz LANGUAGE INITIAL EXIT JUMP FREQ When the camera’s image appears to have flickering issues, change the frequency value to adjust the image. LANGUAGE Select from the following: English (Default), Chinese, Chinese (S), Japanese, and Koran. INITIAL Reset the camera to its default settings.
  • Page 28: Save And Exit

    OSD Menu EXIT EXIT SAVE&EXIT EXIT SAVE & EXIT Exit the OSD menu after saving the recent changes. EXIT Exit the OSD menu without saving any changes.
  • Page 29: Troubleshooting

    Troubleshooting Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the power supply and make sure the camera has the proper voltage and current. Check UTP/COAX switch inside the camera’s housing and confirm the switch’s position matches the signal connection type.
  • Page 30: Specifications

    Specifications VIDEO Image Sensor 1/3” CMOS Sensors Active Pixels 1944(H) x 1092(V) Scanning System Progressive scan Freguency 60Hz / 50Hz Signal Technology 2.0 Megapixel Universal Synchronization Internal Resolution 1920x1080 (1080p30fps) F1.4 (30IRE): 0.03 Lux (Color) Minimum Scene Illumination F1.4 (30IRE): 0 Lux (B&W) S/N Ratio 55dB Video Output...
  • Page 31 OPERATIONAL (CONT.) Digital Noise Reduction OFF / LOW / MIDDLE / HIGH White Balance AUTO / AUTO-EX / PRESET / MANUAL Day and Night AUTO / COLOR / BW / EXTERN Auto Gain Control 0 ~ 10 Motion Detection ON/OFF (4 Zones) Privacy Zones ON/OFF (16 Zones) Sharpness...
  • Page 32 VIDEO Image Sensor 1/3” CMOS Sensors Active Pixels 1944(H) x 1092(V) Scanning System Progressive scan Freguency 60Hz / 50Hz Signal Technology 2.0 Megapixel Universal Synchronization Internal Resolution 1920x1080 (1080p30fps) F1.6 (30RE): 0.39 Lux (Color) Minimum Scene Illumination F1.6 (30IRE): 0 Lux (B&W) S/N Ratio 55dB Video Output...
  • Page 33 OPERATIONAL (CONT.) Digital Noise Reduction OFF / LOW / MIDDLE / HIGH White Balance AUTO / AUTO-EX / PRESET / MANUAL Day and Night AUTO / COLOR / BW / EXTERN Auto Gain Control 0 ~ 10 Motion Detection ON/OFF (4 Zones) Privacy Zones ON/OFF (16 Zones) Sharpness...
  • Page 34 This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 5436 W. Crenshaw Street...
  • Page 35 Digital Watchdog (referred to as “the Warranter”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warranter will repair or replace the unit with a new or refurbished product at its option at no charge.
