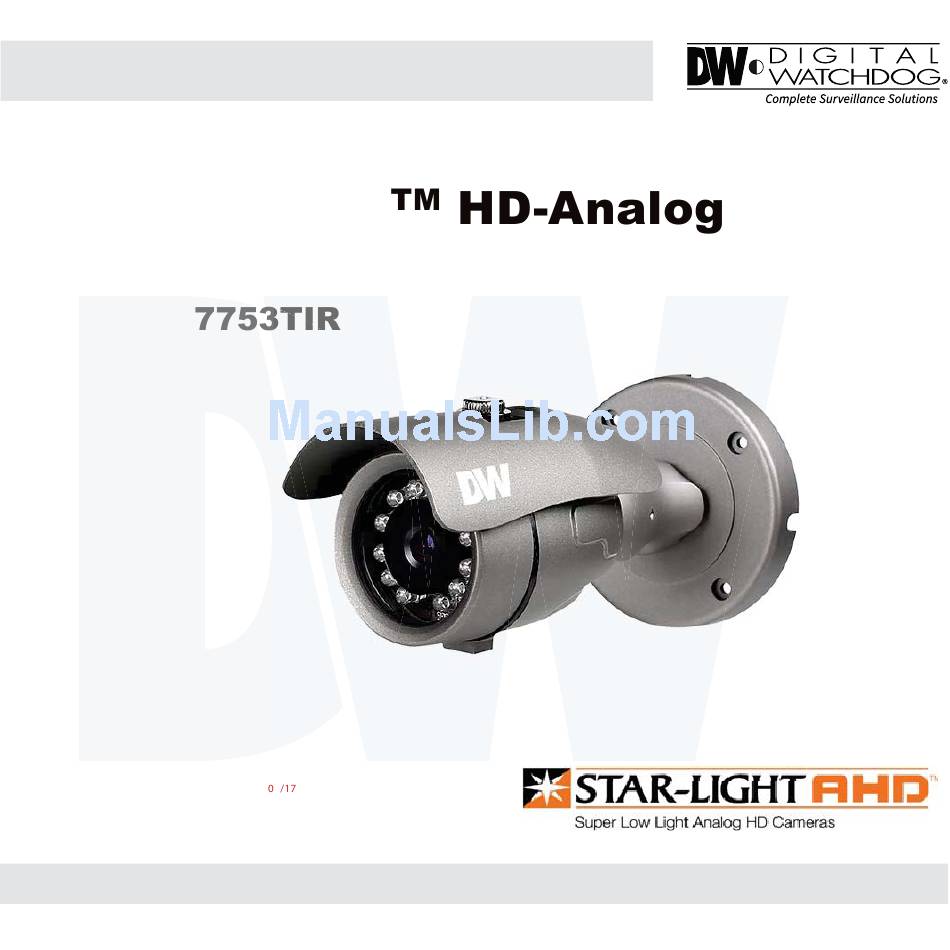

Page 1: Bullet Camera
STAR-LIGHT Bullet Camera Camera DWC-B User’s Manual Ver. 8 Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. - Page 2 Index INTRODUCTION Safety Information Part Name Dimension INSTALLTION Installation Connecting to Monitors Adjusting the Camera angle OSD MENU Menu Tree OSD Menu - Lens OSD Menu - Exposure OSD Menu - Backlight OSD Menu - White Balance OSD Menu - Day&Night OSD Menu - NR OSD Menu - Special OSD Menu - Adjust...
-
Page 3: Safety Information
Safety Information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that dangerous voltage This exclamation point symbol is intended to alert the consisting a risk of electric shock is present within user to the presence of important operating and... - Page 4 Safety Information 7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock. 8. If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately disconnect the power source and contact the service center. Continued use in such a condition may cause fire or electric shock.
-
Page 5: Important Safety Instructions
Important Safety Instructions 1. Read these instructions. All these safety and operating instructions should be read before the product is installed or operated. 2. Keep these instructions. The safety, operating and use instructions should be retained for future reference. 3. Heed all warnings. All warnings on the product and in the operating instructions should be adhered to. -
Page 6: Disposal Of Old Appliances
Important Safety Instructions 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. - Page 7 Features...
-
Page 8: Part Name
Part name Mounting Bracket Sunshield Adjusting Screws Sunshield Cover Pan/Tilt Stopper Screw Cable : Power, BNC Lens... - Page 9 Dimension Unit : 164.4 62.2 70.7 71.5 73.9 145.4...
-
Page 10: Product And Accessories
Product & Accessories Please check if all the camera and accessories are included in the package. Cables Camera Screw & Template Sheet Manual Torx Wrench Plastic Anchor-4pcs... -
Page 11: Installation Instructions
Installation- Instructions Using the mounting template or your own camera, mark and drill the necessary holes to mount the bracket to a wall or ceiling. Pull a necessary wires through and make the proper connections. Use the four mounting screws to install the camera on the wall or ceiling. -
Page 12: Connecting To Dvr/Encoder
Connecting to DVR/Encoder Use the diagram below to connect to a DVR properly. AHD DVR 12VDC COAX - Power Connection - 12vdc Voltage... -
Page 13: Adjusting The Camera Angle
Adjusting the Camera angle Pan 360˚ Rotate 360˚ Tilt 90˚ Warning: - Do not rotate more than 360 ˚ - Do not unnecessarily twist too many times. -
Page 14: Osd Menu Tree
OSD Menu Tree NOTE : The function setting can be adjusted with both switch (OSD joystick) and remote control through UTC. In case of camera without OSD joystick, it can be adjusted with coaxial (UTC) only. LENS NR(Noise Reduction) 2DNR OFF / LOW / MIDDLE / HIGH P-IRIS MODE / LIMIT / RETURN... - Page 15 OSD Menu Lens MANUAL Manual mode supports the fixed board lens or the manual iris lens. P-IRIS If the camera includes a P-Iris lens, you can select this option to adjust the lens and iris settings. If P-Iris is selected, adjust the following : MODE : Select from AUTO or MANUAL.
- Page 16 OSD Menu Exposure SHUTTER EXPOSURE Set the camera’s shutter speed from available options (AUTO / 1/30~1/50000 / X2~X30 / FLK) SHUTTER 1/30 If Iris is set to AUTO in the lens menu, the camera’s shutter will be ----12 STARLIGHT AUTO set automatically and the values in this menu will not be adjustable.
- Page 17 OSD Menu Exposure(CONT.) DRC (Dynamic Range Compressor) DRC enables dark areas in images to become more visible without overexposing the bright areas to create one perfect image. Select from : OFF / ON / AUTO. If ON is selected, adjust the DRC value from 0~8. DEFOG Allows the camera to process a scene that is obscured by fog or weather conditions and provides a visibly improved image.
- Page 18 OSD Menu Backlight BLC (Back Light Compensation) If BLC is selected, adjust the size and position of the mask : - Level : Set the BLC levels LOW/MIDDLE/HIGH - AREA : Use the joystick controller on the camera’s board to adjust the zone’s position. Press the enter key and use the joystick controller to adjust the zone’s size.
- Page 19 OSD Menu White Balance MAIN MENU Auto Tracking White Balance Control mode compensates for color temperature changes between 2400K° and 11000K°. LENS MANUAL EXPOSURE BACKLIGHT PUSH WHITE BAL DAY&NIGHT AUTO Push fixes the white balace based on the current lighting auto- matically.
- Page 20 OSD Menu Day & Night - AUTO : Day/Night switch is based on the CDS levels (IR models) or AGC levels (non-IR models). - COLOR : The camera always stays in day/color mode. - B&W : The camera always stays in night/B&W mode. - EXT : The camera’s Day &...
- Page 21 OSD Menu Day & Night (CONT.) COLOR If COLOR mode is selected, the camera’s display will always appear in color, regardless of the lighting condition. - BURST : Select to enable or disable color burst when the camera switches from color to B/W. - IR SMART (0~15) : Enable Smart IR and set the level.
- Page 22 OSD Menu NR (Noise Reduction) NR reduces the noise on the screen in low light conditions and allows for clearer images, even at night. 2DNR : Set the Digital Noise Reduction values for general illumination. Select from LOW/MIDDLE/ HIGH. If the 2DNR settings are set to HIGH, image sharpness may be affected. 3DNR : Set the Digital Noise Reduction values for very low light situations.
-
Page 23: Cam. Title
OSD Menu Special CAM. TITLE Add a name to the camera. Set the title by using the OSD joystick. D-EFFECT FREEZE Freeze image from the camera at the selected moment. MIRROR Reflects the caemra : OFF / MIRROR / V-FLIP / ROTATE NEG. - Page 24 OSD Menu Special (CONT.) MOTION - ALARM : VIEW TYPE : When motion is detected, select from the following disply options : 1. OFF - Do not display motion alarm 2. ALL - Show all motion zones when motion alarm is detected. 3.
- Page 25 OSD Menu Special (CONT.) PRIVACY - SELECT : The camera supports up to 4 separate privacy zones. Select which one to adjust. - DISPLAY : There are three types of privacy masks you can apply. Select from OFF MOSAIC, INV., or COLOR 1.
- Page 26 OSD Menu Special (CONT.) LANGUAGE Select from the available options : English, Chines 1, Chinese 2, German, French, Italian, Spanish, Polish, Russian, Portuguese, Dutch, Turkish, Korean, Japanese, Arabic, or Hebrew. DEFECT - LIVE DPC : 1. AGC LEVEL - Set the AGC levels for the Live DPC. 2.
- Page 27 OSD Menu Special (CONT.) DEFECT (CONT.) - BLACK DPC : 1. POS/SIZE : Set the size and position for the DPC Zone. BLACK DPC Use the joystick controller on the camera’s board to adjust POS/SIZE the zone’s position. Press the enter key and use the joystick START controller to adjust the zone’s size.
-
Page 28: Video Out
OSD Menu Adjust SHARPNESS Set the sharpness of the image. The Sharpness values can be increased or lowered according to the AGC levels in the camera’s view. If AUTO is selected, adjust the following values : - LEVEL : Set the sharpness level. The higher the number, the sharper the image will appear. - START AGC : Select the AGC value where the image’s shart lines may start to appear smeared in low light. - Page 29 OSD Menu EXIT SAVE & END Save all changes made to the camera’s settings and exit the OSD menu. RESET The camera’s settings will be reset to their factory default values once you exit the OSD menu. NOT SAVE Exit the OSD menu without saving any changes made to the camera’s settings. MAIN MENU LENS MANUAL...
-
Page 30: Troubleshooting
Troubleshooting Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the power supply and make sure the camera has the proper voltage and current. FOR OUT-OF-FOCUS VIDEO Check the Front case and the lens for dirt or fingerprints. -
Page 31: Specifications
Specifications VIDEO Image Sensor 1/2.7” CMOS Sensors Active Pixels 1920(H) x 1080(V) Scanning System Progressive scan Freguency 60Hz / 50Hz Signal Technology 2.0 Megapixel AHD Synchronization Internal Resolution 1920x1080 (1080p30fps) F2.0 (30IRE): 0.41 Lux (Color) Minimum Scene Illumination F2.0 (30IRE): 0 Lux (B&W) S/N Ratio 55dB Video Output... - Page 32 Specifications OPERATIONAL (CONT.) Digital Noise Reduction OFF / LOW / MIDDLE / HIGH White Balance ATW / PUSH / MANUAL / AWB Day and Night AUTO / COLOR / BW / EXT Auto Gain Control 0 ~ 15 Motion Detection ON / OFF (4 Zones) Privacy Zones ON / OFF (4 Zones)
- Page 33 This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 5436 W. Crenshaw Street...
- Page 34 Digital Watchdog (referred to as “the Warranter”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warranter will repair or replace the unit with a new or refurbished product at its option at no charge.
