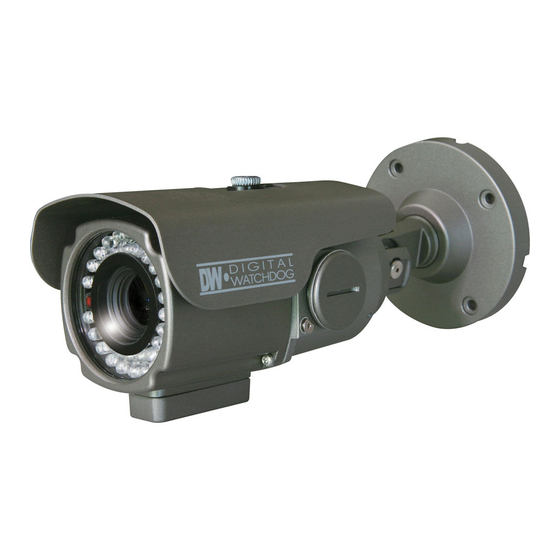

PIPE CAMERA
Double Arm Bracket
DWC-B1362TIR650
DWC-B1363D
DWC-B1363TIR
DWC-B1365T
DWC-B1367WD
DWC-B1367WTIR
DWC-B1367WTIR650
DWC-B2382TIR
ABOUT MANUAL
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
11042011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DWC-B1362TIR650 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digital Watchdog DWC-B1362TIR650

Summary of Contents for Digital Watchdog DWC-B1362TIR650

  • Page 1 PIPE CAMERA Double Arm Bracket DWC-B1362TIR650 DWC-B1363D DWC-B1363TIR DWC-B1365T DWC-B1367WD DWC-B1367WTIR DWC-B1367WTIR650 DWC-B2382TIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 11042011...
  • Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenence and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
  • Page 3 TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. No VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the menu setup of the camera. Check the power supply and make sure the camera has the proper voltage and current.

  • Page 4: Part & Descriptions

    PART & DESCRIPTIONS* DWC-B1362TIR650, B1363TIR, B1367WTIR, B1367WTIR650 RS 485 DWC-B1363D, B1365T, B1367WD OPTION B1367WD B1367WTIR B1367WTIR650 No IR Front Case Rear Case BNC Jack Zoom, Focus Housing Control Board Power Input Connector DC 12V / AC24V Voltage Sunshield Con Cap...
  • Page 5 DWC-B2382TIR Front Case Control Board Power Input Connector DC 12V / AC24V Voltage Sunshield Con Cap RS 485 (EK:D+, WH:D-) Lens Double Arm Bracket Assembly Screw Fixing Screw Rear Case BNC Jack Set Screw...

  • Page 6: Dimensions In Millimeters

    DIMENSIONS IN MILLIMETERS* DWC-B1362TIR650, B1363TIR, B1367WTIR, B1367WTIR650 DWC-B1363D, B1365T, B1367WD No IR...
  • Page 7 DWC-B2382TIR...

  • Page 8: Installation

    INSTALLATION* Included with DW Pipe Camera 1. User Manual 5. Tool 2. Mounting Template 6. L-Wrench 3. Four(4) Screw and Four(4) Dry Wall Anchors 7. IR Remote Controller 4. 2nd Video Jack DWC-B2382TIR...

  • Page 9: Mounting On Electrical Junction Box

    MOUNTING ON ELECTRICAL JUNCTION BOX* NPT 3/4” Pipe NOTE : Screws required electrical junction boxes are not supplied. These screws are readily acailable at well-stocked electrical supply store.

  • Page 10: Connecting To Monitors

    CONNECTING TO MONITORS* Follow the diagram below to make proper connections to the CRT Monitor or the Monitor. 12VDC/24VAC CCTV Monitor Left Right Down 2nd Video Output Monitor 30cm Power connection - 12VDC/24VAC Dual Voltage(Auto polarity detection and protection) All camera are equipped with a service monitor output on the camera module.

  • Page 11: Control Board

    CONTROL BOARD* DWC-B1362TIR650, B1363TIR, B1367WTIR, B1367WTIR650 DWC-B1363D, B1365T, B1367WD [1] SW1 Joystick The function of SW1 joystick are camera zoom in/out and OSD control. [2] CON2 Video Test output connector. CON2 DWC-B2382TIR [1] SW Functional control of O.S.D (On Screen Display) [2] CON1 Second Video output connector.
  • Page 12 ADJUSTING THE VARI-FOCAL DC AUTO IRIS LENS* Follow the instructions provided below to make any lens adjustments. DWC-B1362TIR650, B1363TIR, B1367WTIR, B1367WTIR650 DWC-B1363D, B1365T, B1367WD DV650 LENS TYPE DV3312 LENS TYPE DV650 LENS TYPE DV3312 LENS TYPE DWC-B1362TIR650 DWC-B1363D DWC-B1367WTIR650 DWC-B1363TIR...

  • Page 13: Camera Setting Angle

    CAMERA SETTING ANGLE* CAUTION : 1. Do not rotate � more than 360° 2. Do not twist � many times unnecessarily.
  • Page 14 FEATURES* B1362TIR650 1/3” Sony Super HAD Ⅱ CCD 540 TV Lines 6 ~ 50mm Varifocal Auto Iris Lens 100ft Range IR with Intelligent Camera Sync True Day & Night / TDN5 (Electro Magnetic Mechanism) DRC (Dynamic Range Compressor) HME (Highlight Masking Exposure) SLC (Side Light Compensation) AGC / BLC / AWB Negative Imaging...
  • Page 15 FEATURES* B1363D 1/3” High Resolution CCD 560 TV Lines 3.3 ~ 12mm Varifocal Auto Iris Lens Electronic Day and Night Star-Light (Super Low Light Technology) 3D-DNR (3D Digital Noise Reduction) DRC (Dynamic Range Compressor) HME (Highlight Masking Exposure) AGC / BLC / AWB Horizontal / Vertical Mirror 32x Digital Zoom / Negative Imaging RS485 Built-In...
  • Page 16 FEATURES* B1363TIR 1/3” High Resolution CCD 560 TV Lines 3.3 ~ 12mm Varifocal Auto Iris Lens 100ft Range IR with Intelligent Camera Sync TDN (True Day and Night / TDN5) Star-Light (Super Low Light Technology) DRC (Dynamic Range Compressor) 3D-DNR (3D Digital Noise Reduction) HME (Highlight Masking Exposure) AGC / BLC / AWB Horizontal / Vertical Mirror...
  • Page 17 FEATURES* B1365T 1/3” Pixim Seawolf CMOS Sensor 690 TV Lines (H:540 TV Lines, V:460 TV Lines) 3.3 ~ 12mm Varifocal Auto Iris Lens TDN (True Day and Night / TDN5) Powerful Wide Dynamic Range Star-Light (Super Low Light Technology) 3D-DNR (3D Digital Noise Reduction) Ultra Low Light Sensitivity Smear Canceling Circuit Horizontal / Vertical Mirror...
  • Page 18 FEATURES* B1367WD 1/3” Sony Super HAD Ⅱ CCD 580 TV Lines 3.3 ~ 12mm Varifocal Auto Iris Lens Electronic Day & Night Star-Light (Super Low Light Technology) EWDR (Electronic Wide Dynamic Range) 3D-DNR (3D Digital Noise Reduction) HME (Highlight Masking Exposure) SLC (Side Light Compensation) AGC / BLC / AWB Negative Imaging...
  • Page 19 FEATURES* B1367WTIR 1/3” Sony Super HAD Ⅱ CCD 580 TV Lines 3.3 ~ 12mm Varifocal Auto Iris Lens 100ft Range IR with Intelligent Camear Sync True Day & Night / TDN5(Electro Magnetic Mechanism) Star-Light (Super Low Light Technology) EWDR (Electronic Wide Dynamic Range) 3D-DNR (3D Digital Noise Reduction) HME (Highlight Masking Exposure) SLC (Side Light Compensation)
  • Page 20 FEATURES* B1367WTIR650 1/3” Sony Super HAD Ⅱ CCD 580 TV Lines 6 ~ 50mm Varifocal Auto Iris Lens 100ft Range IR with Intelligent Camear Sync True Day & Night / TDN5(Electro Magnetic Mechanism) Star-Light (Super Low Light Technology) EWDR (Electronic Wide Dynamic Range) 3D-DNR (3D Digital Noise Reduction) HME (Highlight Masking Exposure) SLC (Side Light Compensation)
  • Page 21 FEATURES* B2382TIR 1/3” Sony Super HAD Ⅱ CCD 580 TV Lines OMNI-Focus 2.9 ~ 8.5mm 3X Motorized Zoom, Auto Iris 100ft Range IR with Intelligent Camear Sync True Day & Night / TDN5(Electro Magnetic Mechanism) Star-Light (Super Low Light Technology) EWDR (Electronic Wide Dynamic Range) 3D-DNR (3D Digital Noise Reduction) HME (Highlight Masking Exposure)

  • Page 22: Module Osd Menu

    MODULE OSD MENU* B1362TIR650 EXPOSURE COLOR DAY&NIGHT PRIVACY LENS D&N MODE WB MODE E.SHUTTER R-Y GAIN B-Y GAIN FUNCTION MOTION PRIVACY MIRROR ALARM MASK 1 SHARPNESS MASK 2 GAMMA MASK 3 MASK 4 COLOR SET SYNC SETUP EXIT EXIT SYNC MODE CAMERA ID SAVE &...
  • Page 23 EXPOSURE LENS MANUAL (ELC LEVEL : 0 ~ 100) / DC (DC LEVEL : 0 ~ 31) E.SHUTTER 1/60 / 1/100FLC / 1/250 ~ 100000 OFF / ON BLC (Back Light Compensation) OFF ~ 36dB AGC (AUTO GAIN CONTROL) COLOR WB MODE AWC / ATW / MANUAL / PUSH LOCK R-Y GAIN...
  • Page 24 FUNCTION MIRROR OFF / ON SHARPNESS 0 ~ 49 GAMMA USER / 0.45 / 0.6 / 1.00 OFF / ON (0 ~ 50) SLC (Side Light Compensation) OFF / ON (0 ~ 155) HME (Highlight Masking Exposure) OFF / ON DRC (Dynamic Range Compressor) MOTION OFF / ON...
  • Page 25 PRIVACY OFF / ON MASK 1 OFF / ON MASK 2 MASK 3 OFF / ON OFF / ON MASK 4 BLACK / GRAY / COLOR 1~ 6 COLOR SET SYNC SYNC MODE INTER. / AUTO 0 ~ 199 V_PHASE SETUP CAMERA ID 0 ~ 254...
  • Page 26 B1363D, B1363TIR EXPOSURE PRIVACY COLOR DAY&NIGHT D&N MODE BRIGHTNESS WB MODE C-SUP R-Y GAIN SHUTTER B-Y GAIN A-SUP BLC / HME STARLIGHT NIGHT-UP FUNCTION MOTION PRIVACY MIRROR MOTION PRIVACY SHARPNESS FREEZE NEG.IMAGE D-ZOOM 3D DNR SYNC SETUP EXIT TITLE EDIT EXIT SYNC SAVE &...
  • Page 27 EXPOSURE BRIGHTNESS 0 ~ 100 SHUTTER 1/60 / FLK / 1/250 ~ 10000 / STAR LIGHT x2 ~ x256 BLC/HME OFF / BLC / HME HIGH / MIDDLE / LOW / OFF AGC(Auto Gain Control) STARLIGHT AUTO(x2 ~ x256) / OFF NIGHT-UP NORMAL / HIGH EXIT...
  • Page 28 FUNCTION MIRROR OFF / MIRROR / V-FLIP / ROTATE SHARPNESS 0 ~ 31 FREEZE OFF / ON NEG.IMAGE OFF / ON D-ZOOM OFF / ON (x1.0 ~ x32 PTZ) 3D DNR ON (0~100) / OFF 3D Digital Noise Reduction OFF / INDOOR / OUTDOOR Dynamic Range Compressor JUMP EXIT...
  • Page 29 SYNC SYNC INTER. / AUTO EXIT JUMP SETUP TITLE EDIT OFF / ON PC CONTROL CAM ID / ID DISPLAY (OFF/ON) / BAUDRATE (2400 / 4800 / 9600 / 19200 / 38400 / 57600) (RS485 Control) The protocol is fixed pelco-D. LANGUAGE ENG / KOR / JPN / CHN1 / CHN2 / RUS / FRAN / SPAN / ITAL MONITOR...
  • Page 30 B1365T EXPOSURE PRIVACY COLOR DAY&NIGHT D&N MODE BRIGHTNESS WB MODE AE PREFERENCE COLOR GAIN BW BURST STARLIGHT METER ZONE FUNCTION MOTION PRIVACY MIRROR MOTION PRIVACY MASK SHARPNESS MOTION ZONE MASK COLOR GAMMA 3D DNR D-ZOOM SYNC SETUP EXIT EXIT SYNC PC CONTROL SAVE &...
  • Page 31 EXPOSURE BRIGHTNESS -48 ~ 60 AE PREFERENCE OUTDOOR / INDOOR OFF / BLC (PERCENTILE 10 ~ 50) LOW / NORMAL / MEDIUM / HIGH / CUSTOM LOW / MEDIUM / HIGH / CUSTOM STARLIGHT x2 ~ x64 METER ZONE ADJUST ZONE 1 / ADJUST ZONE 2 EXIT JUMP COLOR WB MODE...
  • Page 32 FUNCTION MIRROR OFF / MIRROR / V-FLIP / ROTATE SHARPNESS -8 ~ 8 25(0.25) ~ 100(1.0) GAMMA 3D DNR MOVIE / INFO D-ZOOM ZOOM : 1(1.0x) ~ 12(8x) PAN(-100~100) / TILT(-100~100)(Digital Zoom/Pan using the camera mini joystick) EXIT JUMP MOTION MOTION OFF / ON (ACTIVITY THR (0 ~ 255)) MOTION ZONE...
  • Page 33 SYNC SYNC INT1(SYNC to 59.94Hz)/INT2(SYNC to 60.01Hz)/LL(LL LIMIT/V PHASE/RETURN) EXIT JUMP SETUP PC CONTROL CAM ID : 1 ~ 255 PROTOCOL : PELCO-D BAUDRATE : 2400 / 4800 / 9600 / 19200 RETURN TITLE OFF / ON.. (TITLE/ID POSITION(UP-LEFT/UP-CENTER/UP-RIGHT/DOWN-LEFT/DOWN-CENTER/DOWN-RIGHT) LANGUAGE ENGLISH OMNI LENS ON..
  • Page 34 B1367WD, 1367WTIR,B1367WTIR650, B2382TIR EXPOSURE PRIVACY COLOR DAY&NIGHT D&N MODE BRIGHTNESS WB MODE C-SUP E.SHUTTER R-Y GAIN A-SUP B-Y GAIN MAX_DR STARLIGHT FUNCTION MOTION PRIVACY MIRROR MOTION MASK 1 SHARPNESS MASK 2 GAMMA MASK 3 FREEZE MASK 4 NEGA. MASK 5 3D DNR MASK 6 D-ZOOM...
  • Page 35 EXPOSURE BRIGHTNESS 0 ~ 99 E.SHUTTER 1/60 / 1/100 / FLC / 1/250 ~ 100000 / SENS-UP x2 ~ x256 OFF / ON BLC (Back Light Compensation) MAX_DR OFF / ON (0~20) (Electronic Wide Dynamic Range) HIGH / MIDDLE / LOW / OFF AGC (AUTO GAIN CONTROL) STARLIGHT AUTO (x2 ~ x256) / OFF (~x256)
  • Page 36 FUNCTION MIRROR OFF / MIRROR / V-FLIP / ROTATE SHARPNESS 0 ~ 49 GAMMA 0.45 ~ 1.00 / USER FREEZE OFF / ON NEGA. OFF / ON 3D DNR OFF / LOW / MIDDLE / HIGH 3D DNR (3D Digital Noise Reduction) D-ZOOM OFF / ON(x1.0 ~ x3.0 Digital PTZ) OFF / ON...
  • Page 37 PRIVACY MASK 1 OFF / ON MASK 2 OFF / ON MASK 3 OFF / ON MASK 4 OFF / ON MASK 5 OFF / ON MASK 6 OFF / ON EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET SYNC SYNC MODE INTER.

  • Page 38: Specification

    SPECIFICATION* MODEL DWC-B1362TIR650 General Spec NTSC CCD Type 1/3" 410K Pixels Color 1/3" 470K Pixels Color Total num ber of pixels 811(H) X 508 (V) 795(H) X 596(V) Minimum Illum ination 0.1Lux (F1.2, 30IRE-COLOR) 0.0Lux (LED ON) Resolution 540 TV Lines (COLOR)
  • Page 39 MODEL DWC-B1363D, B1363TIR General Spec NTSC CCD Type 1/3" 410K Pixels Color 1/3" 470K Pixels Color Total num ber of pixels 811(H) X 508 (V) 795(H) X 596(V) Minimum Illum ination 0.14Lux (F1.2, 30IRE-COLOR) 0Lux (LED ON) Resolution 560 TV Lines (COLOR) 580 TV Lines (BW) Electric Spec Voltage...
  • Page 40 MODEL DWC-B1365T General Spec NTSC CCD Type 1/3" 410K Pixels Color Total num ber of pixels 768(H) X 548 (V) Minimum Illum ination 0.22Lux (F1.2, 30IRE-COLOR) 0.0Lux (LED ON) Resolution 690 TV Lines Effective (H: 540 TV Lines / V:460 TV Lines) Electric Spec Voltage DC 12[V] (11.0[V] ~ 20.0[V])
  • Page 41 MODEL DWC-B1367WD,B1367WTIR,B1367WTIR650,B2382TIR General Spec NTSC CCD Type 1/3" 410K Pixels Color 1/3" 470K Pixels Color Total num ber of pixels 811(H) X 508(V) 795(H) X 596(V) Minimum Illum ination 0.14Lux (F1.2, 30IRE-COLOR) 0.0Lux (LED ON) Resolution 580 TV Lines (COLOR) 600 TV Lines (BW) Electric Spec Voltage...

  • Page 42: Remote Control

    REMOTE CONTROL* Menu Accessand Control Zoom Function Control REMOTE CONTROL Instructions ; 1) Set the camera ID in OSD menu.(The default setting is “001”) NOTE : If the camera ID is modified, the new camera ID must Key Button be set, and the power must be turned ON and OFF. Then the camera is able to recognize the new ID.

  • Page 43: Warranty Information

    WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR : For the initial five (5) years and one (1) year on IR LED from the original purchase date,...

  • Page 44: Limits And Exclusions

    LIMITS AND EXCLUSIONS* There are no express warranties except as listed above. The Warrantor will not be liable for incidental or consequential damages (including without limitation or damage to recording media), resulting from the use of these products or arising out of any breach of the warranty.
  • Page 46 5436 W Crenshaw St. Tampa, FL 33634 Tel : 866-446-3595 / 813-888-9555 Fax : 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours : Monday-Friday 8:30am to 8:00pm Eastern Time...
