Summary of Contents for Digital Watchdog Star-Light DWC-B6763TIR

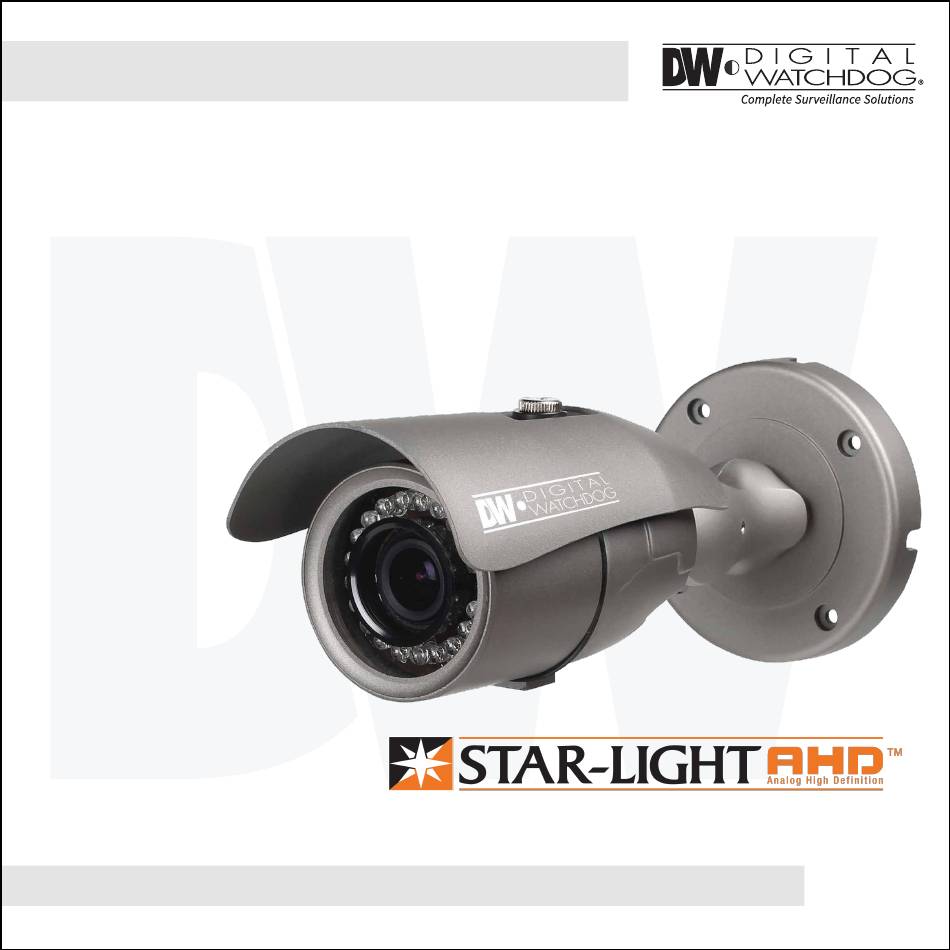

Page 1

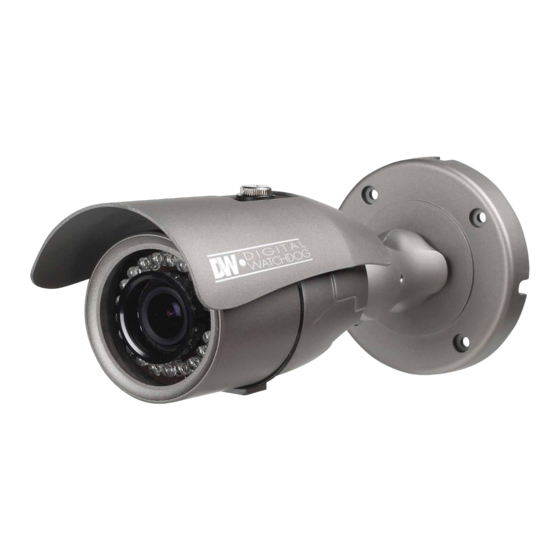

Analog High Definition Bullet Camera DWC-B6763TIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 08/17...
Page 2
PRECAUTIONS Do not open or modify. Do not open the case except during maintenance and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
Page 3
TABLE OF CONTENTS Introduction Features Parts and Descriptions Dimensions Installation Inside the Box Installation Instructions Connecting to Monitors Control Board Adjusting the Camera Angle Module OSD Menu 12-27 Troubleshooting Warranty Information 29-30 Specifications 31-32...
Page 4
FEATURES* Analog High Definition (AHD) HD over Coax Technology STAR-LIGHT™ Super Low Light Technology 1/2.7” CMOS Sensor 1080P Resolution at 30fps Varifocal P-Iris Lens 2.8~12mm Smart IR™ with Intelligent Camera Sync. 100ft Range Smart DNR™ 3D Digital Noise Reduction Highlight Masking Exposure (HME) True Day/Night Mechanical IR Cut Filter Secondary Video-BNC Output OSD Control via Coax Cable using UTC...
Page 5
PARTS & DESCRIPTION* OSD Joystick Controller Mounting Bracket BNC Cable Camera Module 12VDC Power Outlet Sunshield Adjusting Screws Sunshield Cover IR Module Front Case Set Screw...
Page 7
INSIDE THE BOX* Included with Bullet Camera: User Manual Secondary Video-BNC Cable Mounting Template L-Key 4 Machine Screws and 4 Dry Wall Anchors DC Plug Power Cable Analog High Definition Bullet Camera DWC-B6763TIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference.
Page 8
INSTALLATION INSTRUCTIONS* 1. Using the mounting template or your own camera, mark and drill the necessary holes to mount the bracket to a wall or ceiling. 2. Pull all necessary wires through and make the proper connections. 3. Use the four (4) mounting screws to install the camera on the wall or ceiling.
Page 9
CONNECTING TO MONITORS* Use the diagram below to connect to a Monitor or CRT Monitor properly. 12VDC CCTV Monitor Left Right Down Second VVideo Output Monitor Power Connection - 12VDC All cameras are equipped with a second video output for on-site configuration.
Page 10
CONTROL BOARD* Secondary Connector: Video Output Connector for On-Site Configuration Joystick: Controls the OSD menu. Remove the camera’s lens cover by rotating it counter-clockwise. Use the Joystick to control the camera’s OSD options.
Page 11
ADJUSTING THE CAMERA ANGLE* CAUTION : Do not rotate more than 360 Do not unnecessarily twist too many times.
Page 12
MODULE OSD MENU* LENS EXPOSURE BACK-LIGHT WHITE BALANCE P-IRIS SHUTTER MANUAL / AUTO AUTO / 1/30~1/50000 / PUSH MANUAL X2~X30 LEVEL / AREA / DEFAULT / RETURN MANUAL 0 ~ 15 INDOOR / OUTDOOR STAR-LIGHT BLUE(0~100) / RED(0~100) AREA / DISPLAY / BLACK MASK / OFF / AUTO X2 ~ X30 LEVEL / MODE / DEFAULT / RETURN BRIGHTNESS...
Page 13
LENS Manual mode supports the fixed board lens or the manual iris lens. MANUAL If the camera includes a P-Iris lens, you can select this option to adjust the lens and iris P-IRIS settings. If P-Iris is selected, adjust the following: MODE: Select from AUTO or MANUAL.
Page 14
EXPOSURE SHUTTER Set the camera’s shutter speed from the available options (AUTO/1/30~1/50000/x2~x30/FLK) If Iris is set to AUTO in the lens menu, the camera’s shutter will be set automatically and the values in this menu will not be adjustable. If Iris is set to AUTO in the lens menu, the camera’s shutter speed will be deactivated.
Page 15
EXPOSURE (CONT.) DYNAMIC RANGE COMPRESSOR DRC enables dark areas in images to become more visible without overexposing the bright areas to create one perfect image. Select from: OFF / ON / AUTO. If ON is selected, adjust the DRC value from 0 ~ 8. NOTE: If DEFOG is enabled, DRC settings are set automatically and will not be available for adjustment.
Page 16
BACKLIGHT COMPENSATION BACK LIGHT COMPENSATION If BLC is selected, adjust the size and position of the mask: - Level: Set the BLC levels LOW / MIDDLE / HIGH - AREA: Use the joysticks controller on the camera’s board to adjust the zone’s position. Press the enter key and use the joysticks controller to adjust the zone’s size.
Page 17
WHITE BALANCE Auto Tracking White Balance Control mode compensates for color temperature changes between 2400K and 11000K PUSH Push fixes the white balance based on the current lighting automatically. To use this function, press the ENTER key for five (5) seconds. MANUAL Control the white balance manually by changing RED and BLUE.
Page 18
DAY & NIGHT AUTO / Day/ Night switch is based on the CDS levels (IR models) or AGC levels (non-Ir models). COLOR / The camera always stays in day/color mode. B&W/ The camera always stays in night/B&W mode. The camera’s Day & Night settings are set according to an external IR LED board. AUTO For cameras with no IR LED Built-in: - D ->...
Page 19
DAY & NIGHT (CONT.) COLOR If COLOR mode is selected, the camera’s display will always appear in color, regardless of the lighting condition. - BURST: - IR SMART (0~15): Enable Smart IR and set the level. Higher values will make Smart IR stronger. - AREA: Set the Smart IR’s zone.
Page 20
Smart DNR 3D DIGITAL NOISE REDUCTION 3D-DNR reduces the noise on the screen in low light conditions and allows for clearer images, even at night. 2DNR Set the Digital Noise Reduction values for general illumination. Select from LOW / MIDDLE / HIGH. If the 2DNR settings are set to HIGH, image sharpness may be affected.
Page 21
SPECIAL CAM. TITLE Add a name to the camera. Set the title by using the OSD joystick. D-EFFECT FREEZE Freeze image from the camera at the selected moment. MIRROR Reflects the camera: OFF / MIRROR / V-FLIP / ROTATE NEG. IMAGE Display the camera’s view in negative colors.
Page 22
SPECIAL (CONT.) MOTION - ALARM: VIEW TYPE: When motion is detected, select from the following display options: 1. OFF - do not display motion alarm 2. ALL - Show all motion zones when motion alarm is detected. 3. BLOCK - show the area where motion is detected as a solid block. 4.
Page 23
SPECIAL (CONT.) PRIVACY - SELECT: The camera supports up to 4 separate privacy zones. Select which one to adjust. - DISPLAY: There are three types of privacy masks you can apply. Select from MOSAIC, INV., or COLOR. - MOSAIC: The privacy mask will appear as a mosaic over the camera’s image. - INV.: The privacy mask will appear as a negative of the image behind it, reversing the colors and brightness.
Page 24
SPECIAL (CONT.) LANGUAGE Select from the available options: English, Chinese 1, Chinese 2, German, French, Italian, Spanish, Polish, Russian, Portuguese, Dutch, Turkish, Korean, Japanese, Arabic, or Hebrew. DEFECT - LIVE DPC: - AGC LEVEL: Set the AGC levels for the Live DPC.
Page 25
SPECIAL (CONT.) DEFECT (CONT.) - WHITE DPC - POS / SIZE: Set the DPC Zone. Use the joystick’ controller on the camera’s board to adjust the zone’s position. Press the enter key and use the joysticks controller to adjust the zone’s size. - START: Press START to begin the DPC test.
Page 26
ADJUST SHARPNESS Set the sharpness of the image. The Sharpness values can be increased or lowered according to the AGC levels in the camera’s view. If AUTO is selected, adjust the following values: - LEVEL: Set the sharpness level. The higher the number, the sharper the image will appear. - START AGC: Select the AGC value where the image’s sharp lines may start to appear smeared in low light.
Page 27
ADJUST (CONT.) COMET When the camera is connected to the VMAX AHD DVR series, enabling the COMET feature enhances the camera’s CVBS signal. The COMET function reduces the noise at high frequency as well as provide high resolution clear image quality. If the camera is connected to a non-AHD DVR, enabling the COMET function will only turn the camera’s image to B/W.
Page 28
TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the camera’s OSD menu. Check the power supply and make sure the camera has the proper voltage and current.
Page 29
WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warranter”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warranter will repair or replace the unit with a new or refurbished product at its option at no charge.
Page 30
This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 5436 W. Crenshaw Street...
Page 31
SPECIFICATIONS* VIDEO Image Sensor 1/2.7” CMOS Sensor Active Pixels 1920(H) x 1080(V) Scanning System Progressive scan Frequency 60Hz/50Hz Signal Technology 2.0 Megapixel AHD Synchronization Internal Resolution 1920x1080 (1080p) Minimum Scene Illumination F1.4 (30IRE): 0.5Lux [Color] F1.4 (30IRE): 0 Lux [B&W] S/N Ratio 55dB Video Output...
Page 32
SPECIFICATIONS* OPERATIONAL (CONT.) Digital Noise Reduction Off, Low, Middle, High White Balance Auto / Push / Manual / AWB Day and Night Auto / Color / B/W / EXT Auto Gain Control 0 ~ 15 Motion Detection Privacy Zones 4 Privacy Zones Sharpness 0 ~ 10 Gamma...
