Connecting IEC and Transformer Grounds

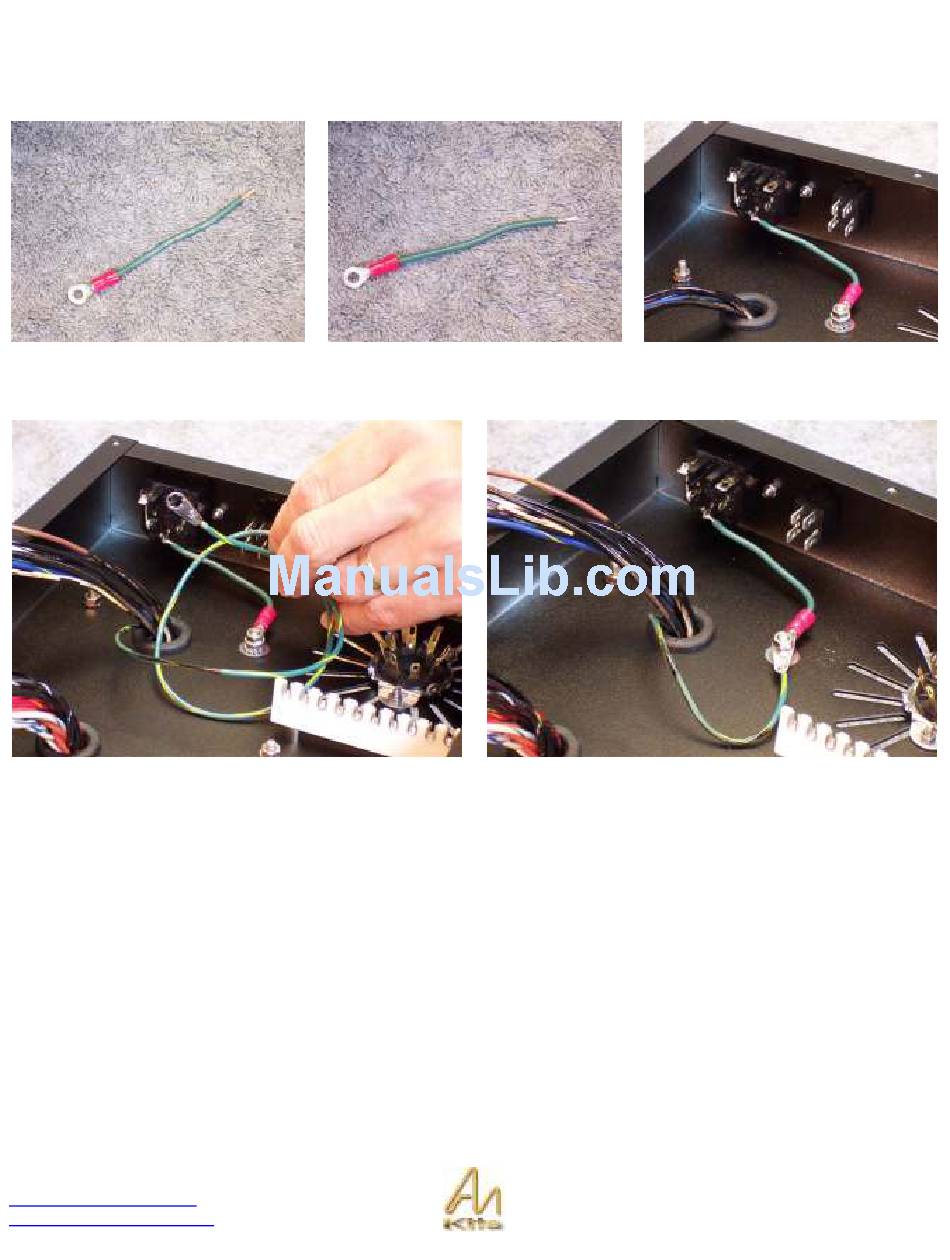

Step 1 in the IEC section is to take the prepared Green wire and solder it to the GND post on the IEC plug (see graphic) –
You will want to strip and tin the end of the wire.
Step 2 is to take the long green/yellow wire from the Mains transformer with the GND lug already soldered to it – You will
probably want to shorten the wire and re attaché the GND lug to it and then secure to the GND log as shown.
Note that another wire will be connected to the GND lug shortly, so no need to tighten the nut all the way yet.
Copyright © 2007, 2008 AudioNote Kits
