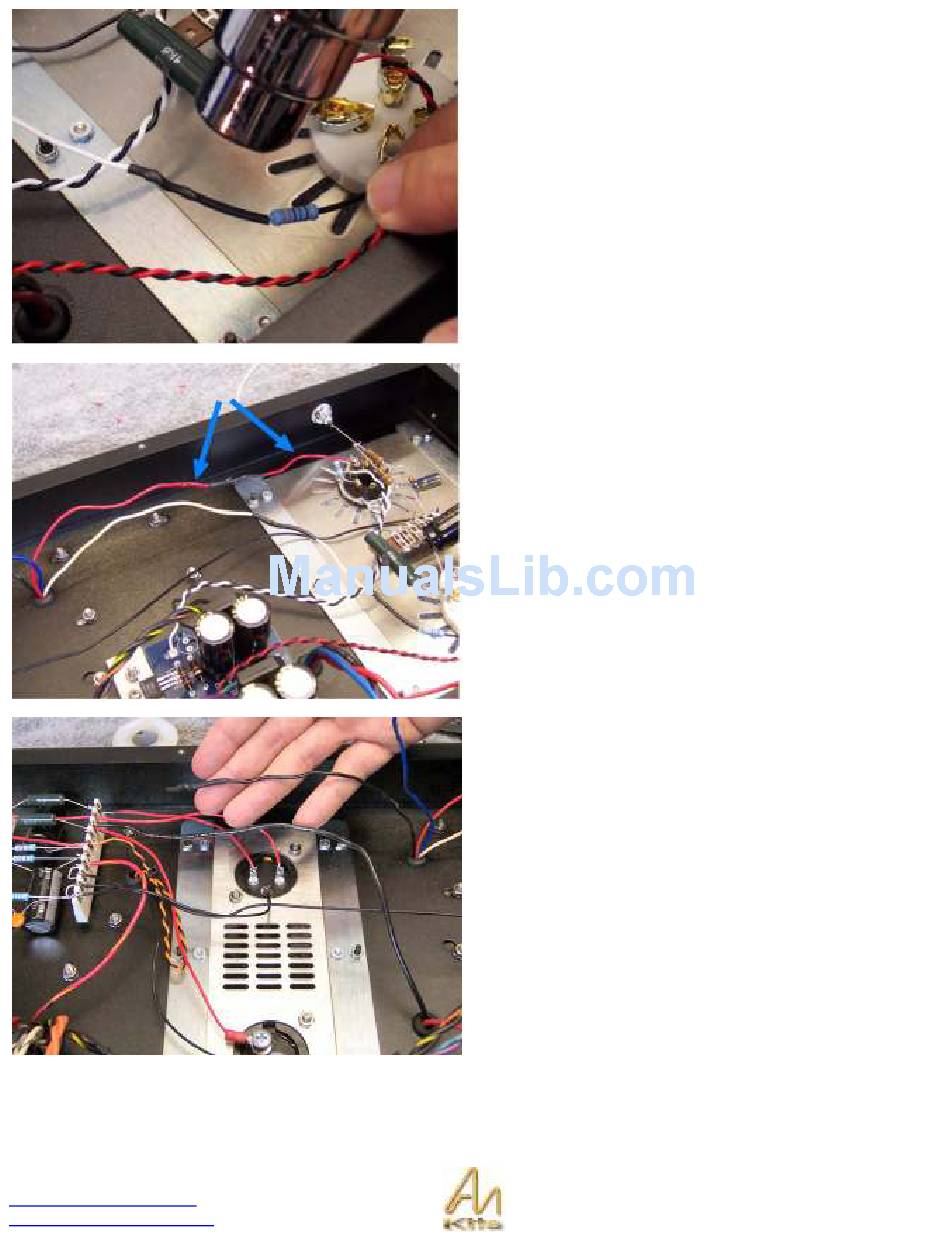

Here you can see the completed connection of the white
wire from the Interstage transformer.
It was extended and then connects to the 3K3 resistor
connecting to the 300 B Valve base.
With the white wire in position – now connect the RED wire
from the interstage to the 8-pin valve base on the front
insert plate.
It will connect to pin 8 – You will need to extend it and heat
shrink as you did in the previous step!
BLACK Wire
Extend the BLACK wire from the interstage transformer
with black wire and connect to the 15K resistor.
