Fitting the Filament Board Support Screw

Installing the Output Transformer

Copyright © 2007, 2008 AudioNote Kits
www.AudioNoteKits.com
audionotekits@rogers.com

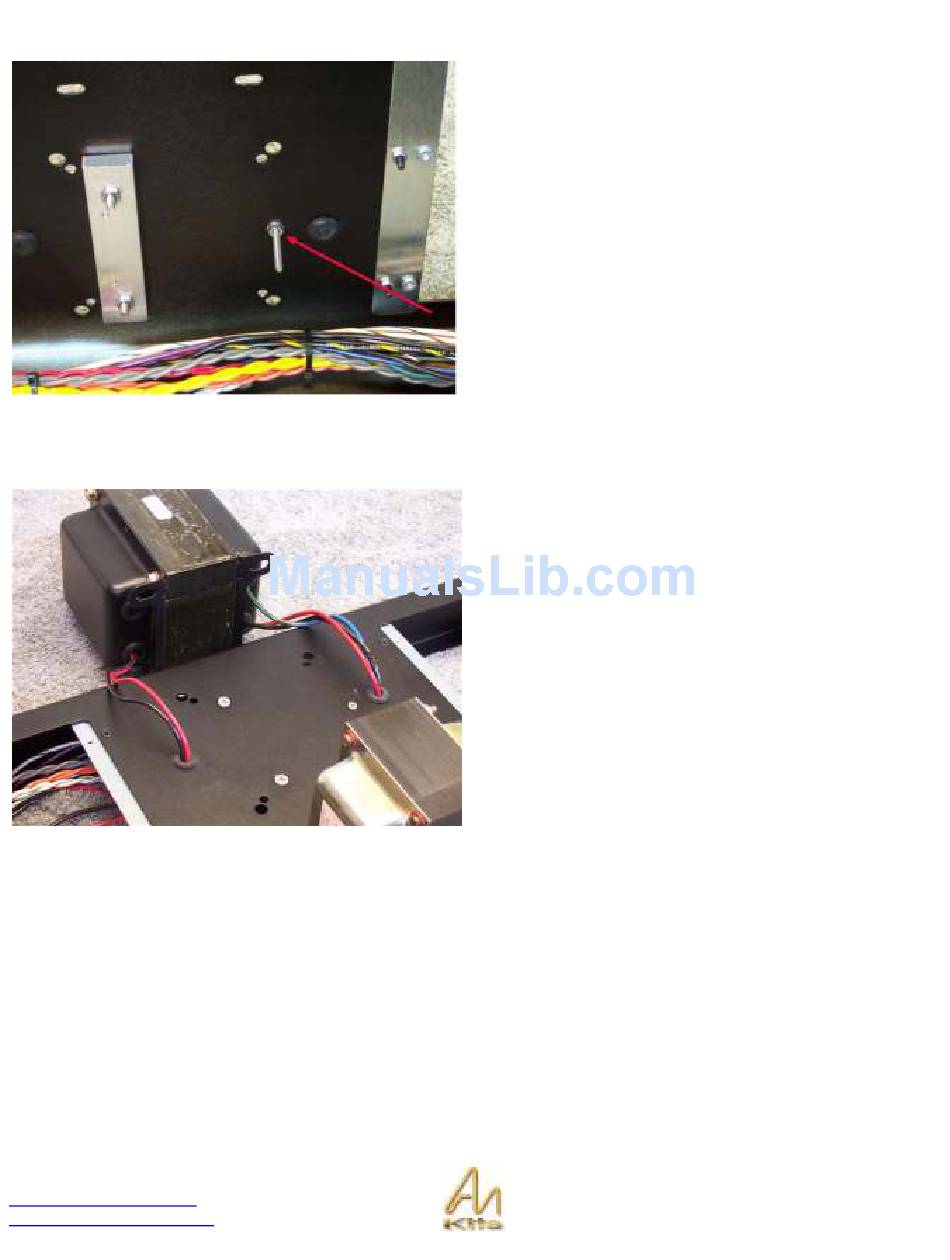

The next step is to install the long M3 screw in the hole.
Secure with a nut.
We are now going to install the Output transformer on the
top of the chassis.
Note that the side of the O/P transformer with the 2 wires
goes towards the rear of the chassis and the 3-wire side
goes to the front of the chassis.
Secure with M4 screws and fender washers.
