- Page 1 QUEST MONO POWER AMPLIFIERS OWNER’S INFORMATION...
- Page 2 CONTENTS 1) IMPORTANT SAFETY INFORMATION 2) CE DECLARATION OF CONFORMITY DISPOSAL POWER REQUIREMENTS 3) INTRODUCTION 4) OVERVIEW UNPACKING AND INSTALLATION 5) VALVE INSTALLATION 6) CONNECTION 7) OPERATION 8) TECHNICAL SPECIFICATIONS 9) WARRANTY INFORMATION CONTACT INFORMATION...
- Page 3 ! IMPORTANT SAFETY INFORMATION ! RISK OF SHOCK OR ELECTROCUTION! INTERNAL OPERATING VOLTAGES ARE LETHAL! Do not remove top cover, unless specifically instructed to do so in the user manual. This unit contains fuses and other safety components in accordance with BS60065 requirements.
- Page 4 BS EN 60065 in accordance with the regulations 73/23/EEC, 89/336/EEC (from 1 January 1997) CE 94 Peter Qvortrup, Director Audio Note (UK) Limited 25 Montefiore Road Hove East Sussex BN3 1RD United Kingdom...
- Page 5 INTRODUCTION Thank you for purchasing this Audio Note (UK) product. With the correct care it should give you many years of pleasure and enjoyment. Please take the time to read all of the information in this manual before connecting your new component to an electrical supply or your system, to ensure both your safety and satisfaction.

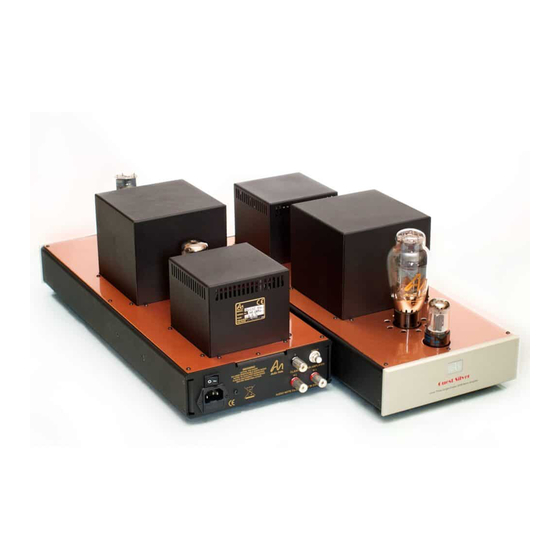

- Page 6 QUEST MONO POWER AMPLIFIERS Congratulations on your purchase of the Audio Note (UK) QUEST stereo power amplifier. They are Pure Class A Singled Ended valve amplifiers that utilize the highly regarded 300B triode valve, producing a level of performance that is radically superior to the vast majority of current designs.
- Page 7 VALVE INSTALLATION The amplifiers are shipped without their valve compliment installed. It is necessary to install the valves before operation. It is essential that the valves are installed correctly or serious damage that is not covered by the warranty will result. We recommend that your dealer perform this procedure for you if you are in any way unsure.
- Page 8 CONNECTION Line inputs Being mono power amplifiers, each QUEST is fitted with one single ended / RCA input. Looking from behind the amplifiers, they are located at the right hand side of the rear panels. Connect the outputs from your preamplifier to these inputs.
- Page 9 Valve Life The valves supplied with your amplifiers should provide approximately 6000 hours of operation. They are specially selected by us, and should only be replaced with matched pairs. Please consult your Audio Note (UK) dealer should your valves need replacing.
- Page 10 TECHNICAL SPECIFICATIONS 100k ohm, line level INPUT IMPEDANCE 450mV for full output INPUT SENSITIVITY 8 watts RMS per channel into 4 or 8 Ohm MAXIMUM OUTPUT loads +/- 0.3dB CHANNEL BALANCE 2 x 5U4G VALVE COMPLIMENT 2 x 300B 2 x 6SN7 UNIT WEIGHT 27.5KG per amplifier SHIPPING WEIGHT...
- Page 11 Audio Note (UK) warrants this product to be free from defects in materials and workmanship for two years from the original date of purchase from an appointed Audio Note (UK) dealer, and agrees to cover the cost of parts and associated labour required to correct such defects, subject to terms & conditions.
- Page 12 CONTACT INFORMATION If in the future your Audio Note (UK) product requires servicing, or if you require technical support or have any questions regarding this or any of our other products, please contact your local Audio Note (UK) dealer. Alternatively, please feel free to contact us directly: -...
