Section 3: IEC Section

IMPORTANT: You will need to look at the AC Wiring Guide in the Appendix to locate the wiring connections for your world
voltage (120, 240 etc.).
IMPORTANT: Many of the pictures in this manual regarding both the mains transformer's primary and secondary lead
colors are taken from when we used to use the 'old' transformer. We have since moved onto a new transformer - referred
to here as the Mk2 mains transformer. We are currently in the process of updating the manual but you may find
inconsistencies. We have endeavored to update the instruction text and diagrams but the picture will take longer to
update.

Installing the IEC Inlet Plug and Mains Rocker Switch

Copyright © 2007, 2008 AudioNote Kits
www.AudioNoteKits.com
audionotekits@rogers.com
In this section we are going to install the IEC (AC inlet plug)
and rocker switch.

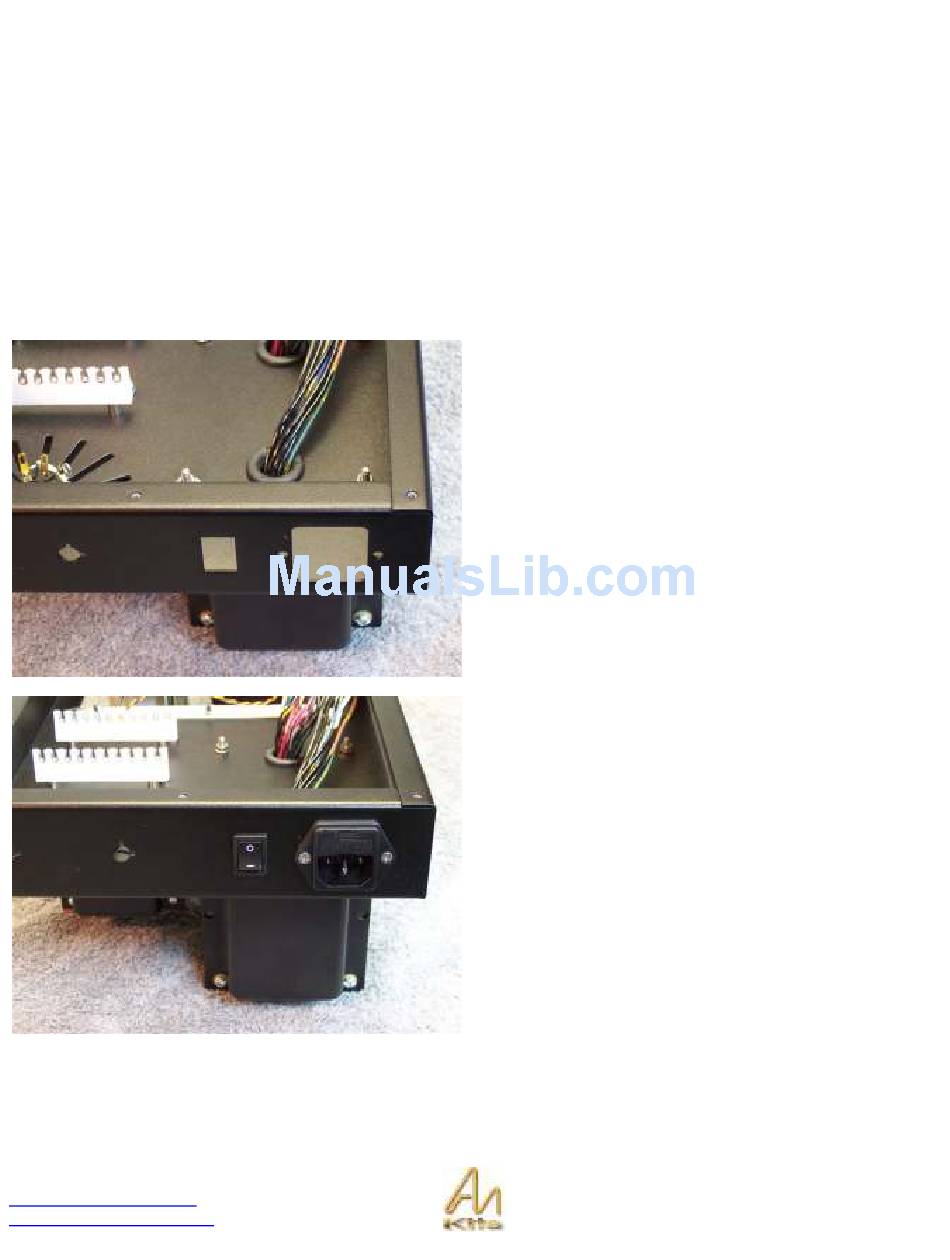

With the chassis in the upside down position now where
you will be doing a lot of work, you can see the orientation
of the rocker switch and the IEC plug.
The rocker switch will snap into position while the IEC plug
will be held in place with M3 flat screws and M3 nuts.
Page 16
