Page 1: Installation Guide
AT-LMC100SC AT-LMC100ST Fast Ethernet Media Converters Installation Guide PN 613-50452-00 Rev B... - Page 2 Copyright © 2004 Allied Telesyn, Inc. 960 Stewart Drive, Suite B, Sunnyvale, CA 94085, USA All rights reserved. No part of this publication may be reproduced without prior written permission from Allied Telesyn, Inc. Ethernet is a registered trademark of Xerox Corporation. All other product names, company names, logos or other designations mentioned herein are trademarks or registered trademarks of their respective owners.
-
Page 3: Electrical Safety And Emission Compliance
408-730-0950 Declares that the Product: Fast Ethernet Media Converters Model Numbers: AT-LMC100SC AT-LMC100ST This product complies with FCC Part 15B, Class B Limits: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device must not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 4 Electrical Safety and Emission Compliance Industry Canada This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. RFI Emission EN55022 Class B Immunity...
- Page 5 AT-LMC100SC and AT-LMC100ST Installation Guide Importante: O Anexo A contém advertências de segurança traduzidas para instalar este equipamento. Quando vir o símbolo , leia a advertência de segurança traduzida no seu idioma no Anexo A. Importante: El Apéndice A contiene mensajes de seguridad traducidos para la instalación de este equipo.
-
Page 7: Table Of Contents
Table of Contents Electrical Safety and Emission Compliance..........iii Table of Contents ..................vii Welcome to Allied Telesyn ................ix Where to Find Web-based Guides ..............ix Document Conventions ..................ix Contacting Allied Telesyn .................. x Online Support .................... x E-mail and Telephone Support..............x Returning Products .................. - Page 8 Appendix A Technical Specifications ................17 Physical ......................17 Environmental ....................17 Electrical Rating ....................17 Agency Certifications..................17 Fiber Optic Port Specifications ................ 18 Appendix B Translated Electrical Safety and Emission Information..... 21 viii...
-
Page 9: Welcome To Allied Telesyn
Welcome to Allied Telesyn This guide contains instructions on how to install an AT-LMC100SC or an AT-LMC100ST Fast Ethernet Media Converter. Where to Find Web-based Guides The Allied Telesyn web site at www.alliedtelesyn.com offers you an easy way to access the most recent documentation, software, and technical information for all of our products. -
Page 10: Contacting Allied Telesyn
Welcome to Allied Telesyn Contacting Allied Telesyn This section provides Allied Telesyn contact information for technical support as well as sales or corporate information. Online Support You can request technical support online by accessing the Allied Telesyn Knowledge Base from the following web site: http://kb.alliedtelesyn.com. You can use the Knowledge Base to submit questions to our technical support staff and review answers to previously asked questions. -
Page 11: Chapter 1 Overview

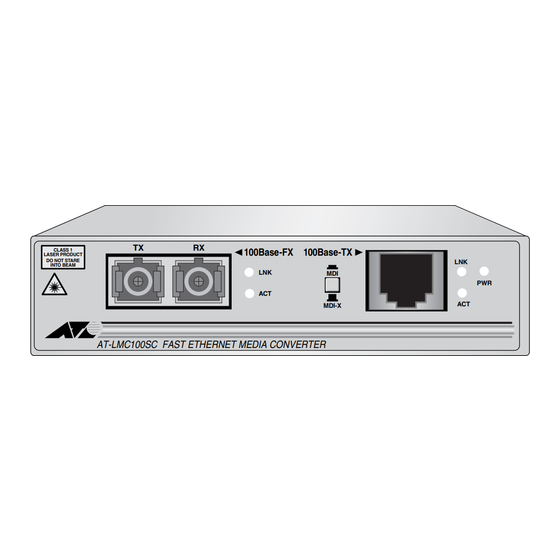

Figure 1 and Figure 2 display the front panel of the AT-LMC100 Series Media Converters. CLASS 1 100Base-FX 100Base-TX LASER PRODUCT DO NOT STARE INTO BEAM MDI-X AT-LMC100SC FAST ETHERNET MEDIA CONVERTER Figure 1 AT-LMC100SC Model Converter - Front Panel... - Page 12 Table 1 lists the maximum operating distances for the media converters. Table 1 Maximum Operating Distances Model Type of Connector Maximum Operating Distance 100Base-FX 100Base-TX 100Base-FX 100Base-TX AT-LMC100SC Multi-mode SC RJ-45 2 km 100 m (328 ft) (1.24 mi) AT-LMC100ST Multi-mode ST RJ-45...
-
Page 13: Key Features
AT-LMC100SC and AT-LMC100ST Installation Guide Key Features The media converters have the following key features: ❑ LEDs for unit and port status ❑ MDI/MDI-X selector switch on RJ-45 port ❑ Automatic half- or full-duplex mode operation with 100Base-TX or 100Base-FX fiber optic port ❑... -
Page 14: External Ac/Dc Power Adapter
Overview Note After using the MDI/MDI-X switch to change between the two settings, you must reset the media converter by powering OFF then powering ON the unit. External AC/DC Power Adapter An external AC/DC power adapter is included with the media converter for standalone operation. -
Page 15: Network Topologies
The AT-LMC100 Series Media Converters can be used in two different types of topologies: standalone and back-to-back. Both topologies are described below. Standalone Topology Figure 4 illustrates a standalone topology where two AT-8224XL switches have been interconnected with an AT-LMC100SC media converter. 100 m (32.8 ft) AT-8224XL AT-LMC100SC STATUS... -
Page 16: Back-To-Back Topology
PORT ACTIVITY 10BASE-T / 100BASE-T CLASS 1 100Base-FX 100Base-TX LASER PRODUCT DO NOT STARE INTO BEAM MDI-X AT-LMC100SC FAST ETHERNET MEDIA CONVERTER 100 m (328 ft) 2 km (1.2 mi) AT-8224XL AT-LMC100SC CLASS 1 100Base-FX 100Base-TX LASER PRODUCT DO NOT STARE... -
Page 17: Installing The Media Converter
Make sure the following items are included in your package. If any item is missing or damaged, contact your Allied Telesyn sales representative for assistance. ❑ One AT-LMC100SC or AT-LMC100ST Fast Ethernet Media Converter ❑ Four protective feet (for desktop use only) ❑... -
Page 18: Reviewing Safety Precautions
Type of Fiber Optic Maximum Maximum Allowable Cable Operating Loss Budget Distance AT-LMC100SC 50/125 micron MMF 2 km (1.2 mi) 13 dB at 1310 nm 62.5/125 micron MMF 2 km (1.2 mi) 13 dB at 1310 nm AT-LMC100ST Reviewing Safety Precautions Please review the following safety guidelines before installing the media converter. -
Page 19: Installing The Media Converter
AT-LMC100SC and AT-LMC100ST Installation Guide Installing the Media Converter The following procedure explains how to install an AT-LMC100SC or an AT-LMC100ST Media Converter. To install the media converter, perform the following procedure: Remove all equipment from the package and store the packaging material in a safe place. - Page 20 Installing the Media Converter DC Receptacle Power Plug 12 V D C Back of Media Converter AC/DC Power Adapter DC Polarity Symbols Figure 7 12VDC Connector on Rear Panel Verify that the PWR LED is green. If the LED is OFF, refer to “Troubleshooting”...
-
Page 21: Warranty Registration
AT-LMC100SC and AT-LMC100ST Installation Guide Warranty Registration When you finish installing the product, you should register your product by completing the enclosed warranty card and sending it in. -
Page 23: Chapter 3 Troubleshooting
Chapter 3 Troubleshooting Troubleshooting Guidelines Follow the guidelines below to test and troubleshoot the installation in the event a problem occurs. If the PWR LED is OFF, do the following: ❑ If the unit is installed on a desktop, check to be sure that the power adapter is securely connected to a power outlet and that the power adapter cable is securely connected to the back of the media converter. - Page 24 Troubleshooting If the LNK LED for the fiber optic port is OFF, do the following: ❑ Verify that then end-node connected to the port is ON and is operating properly. ❑ Check that the fiber optic cable is securely connected to the fiber optic port on the media converter and on the end-node.
-
Page 25: Loopback Test
AT-LMC100SC and AT-LMC100ST Installation Guide Loopback Test To check hardware reliability of the media converter, perform the following procedure: Power OFF the media converter by unplugging the power adapter from the wall outlet and from the back of the unit. -
Page 27: Technical Specifications
Appendix A Technical Specifications Physical Dimensions: W x D x H 10.5 cm x 9.5 cm x 2.5 cm (4.125 in x 3.75 in x 1.0 in) Weight: 0.27 kg (0.60 lbs) Environmental Maximum Operating Temperature: 0° C to 40° C (32° F to 104° F) Maximum Storage Temperature: -20°... -
Page 28: Fiber Optic Port Specifications
Model Fiber Fiber Optical Type Optic Wavelength Launch Power (dBm) Diameter (microns) Max. Avg. Min. AT-LMC100SC 50/125 1310 nm -14.0 -20.3 -22.5 62.5/125 1310 nm -14.0 -16.8 -19.0 AT-LMC100ST 1. MMF = Multi-mode Fiber 2. The launch power is measured at one meter from the transmitter. - Page 29 AT-LMC100SC and AT-LMC100ST Installation Guide Table 7 Fiber Optic Datalink Model Fiber Type Minimum Average Minimum Maximum Power / Signal Distance Distance Link Loss Spec. Spec. Budget AT-LMC100SC 50/125 MMF 13.00 dB 18.70 dB 2 km (1.2 mi) AT-LMC100ST 62.5/125 MMF 16.80 dB...
-
Page 31: Translated Electrical Safety And Emission Information
Appendix B Translated Electrical Safety and Emission Information Important: This appendix contains multiple-language translations for the safety statements in this guide. Wichtig: Dieser Anhang enthält Übersetzungen der in diesem Handbuch enthaltenen Sicherheitshinweise in mehreren Sprachen. Vigtigt: Dette tillæg indeholder oversættelser i flere sprog af sikkerhedsadvarslerne i denne håndbog. - Page 32 408-730-0950 Declares that the Product: Fast Ethernet Media Converters Model Numbers: AT-LMC100SC AT-LMC100ST This product complies with FCC Part 15B, Class B Limits: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device must not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 33 AT-LMC100SC and AT-LMC100ST Installation Guide RFI Emission EN55022 Class B Immunity EN55024 Warning: This product requires shielded cables to comply with emission and immunity standards. If it is used with unshielded cables, the user may be required to take measures to correct the interference problem at their own expense.
- Page 34 Translated Electrical Safety and Emission Information Normen: Dieses Produkt erfüllt die Anforderungen der nachfolgenden Normen. Hochfrequenzstörung EN55022 Klasse B Störsicherheit EN55024 Achtung: Für dieses Produkt sind abgeschirmte Kabel erforderlich, damit den Richtlinien für Emission und Interferenzschutz entsprochen wird. Falls das Produkt mit nicht abgeschirmten Kabeln verwendet wird, können weitergehende Maßnahmen für die Korrektur von Interferenzproblemen auf Kosten des Benutzers notwendig werden.
- Page 35 AT-LMC100SC and AT-LMC100ST Installation Guide Standarder: Dette produkt tilfredsstiller de følgende standarder. Radiofrekvens forstyrrelsesemissionEN55022 Klasse B Immunitet EN55024 Advarsel: Dette produkt skal bruges med afskærmede kabler for at overholde bestemmelserne vedrørende udstråling og støjimmunitet. Hvis det bruges med uafskærmede kabler, kan det blive påkrævet af brugeren at korrigere interferensproblemer for egen regning.
- Page 36 Translated Electrical Safety and Emission Information Eisen: Dit product voldoet aan de volgende eisen. RFI Emissie EN55022 Klasse B Immuniteit EN55024 Waarschuwing: Om te voldoen aan de emissie- en immuniteitsnormen dient dit apparaat te zijn voorzien van afgeschermde kabels. Als het met niet-afgeschermde kabels wordt gebruikt, kan het zijn dat de gebruiker maatregelen moet treffen om interferentieproblemen voor eigen rekening op te lossen.
- Page 37 AT-LMC100SC and AT-LMC100ST Installation Guide Normes: ce produit est conforme aux normes de suivantes. Emission d'interférences radioélectriques EN55022 Classe Immunité EN55024 Avertissement: Il faut utiliser des câbles blindés pour ce produit afin de respecter les normes d’émission et d’immunité. Si l’utilisateur choisit d’utiliser des câbles non blindés, il sera peut-être contraint de prendre les...
- Page 38 Translated Electrical Safety and Emission Information Standardit: Tämä tuote on seuraavien standardien mukainen. Radioaaltojen häirintä EN55022 Luokka B Kestävyys EN55024 Varoitus: Tämä tuote vaatii suojattuja kaapeleita toimiakseen emissio- ja häiriönsietostandardien mukaisesti. Jostuotetta käytetään ilman suojattuja kaapeleita, käyttäjä voi joutua korjaamaan häirinnän aiheuttaman ongelman omallakustannuksellaan.
- Page 39 AT-LMC100SC and AT-LMC100ST Installation Guide Standard: Questo prodotto è conforme ai seguenti standard. Emissione RFI (interferenza di radiofrequenza) EN55022 Classe Immunità EN55024 Avvertenza: questo prodotto, se utilizzato con cavi schermati, è conforme alle norme sulle emissioni e sull’immunità. In caso di uso senza cavi schermati, l’utente può...
- Page 40 Translated Electrical Safety and Emission Information Sikkerhetsnormer: Dette produktet tilfredsstiller følgende sikkerhetsnormer. RFI stråling EN55022 Klasse B Immunitet EN55024 Advarsel: Dette produktet må brukes med vernede kabler for å tilfredsstille emisjons- og fritakelsesstandarder. Dersom produktet brukes med uvernede kabler, må brukeren muligens rette forstyrrelsesproblemene for egen regning.
- Page 41 AT-LMC100SC and AT-LMC100ST Installation Guide Padrões: Este produto atende aos seguintes padrões. Emissão De Interferência De Radiofrequência EN55022 Classe Imunidade EN55024 Advertência: Este produto requer a utilização de cabos blindados para cumprimento dos standards de limites de emissão e imunidade. Se o produto for utilizado com cabos não blindados, o utilizador poderá...
- Page 42 Translated Electrical Safety and Emission Information Estándares: Este producto cumple con los siguientes estándares. Emisión RFI EN55022 Clase Inmunidad EN55024 Advertencia: Este producto exige cables protectores para ajustarse a las normas de emisión e inmunidad. Si se utiliza con cables sin protección, el usuario tendrá...
- Page 43 AT-LMC100SC and AT-LMC100ST Installation Guide Standarder: Denna produkt uppfyller följande standarder. Radiostörning EN55022 Klass B Immunitet EN55024 Varning! Denna produkt kräver skärmade kablar för att uppfylla standardkraven för emission och immunitet. Om den används med oskärmade kablar kan användaren vara tvungen att vidta åtgärder på egen bekostnad för att åtgärda störningsproblemet.
