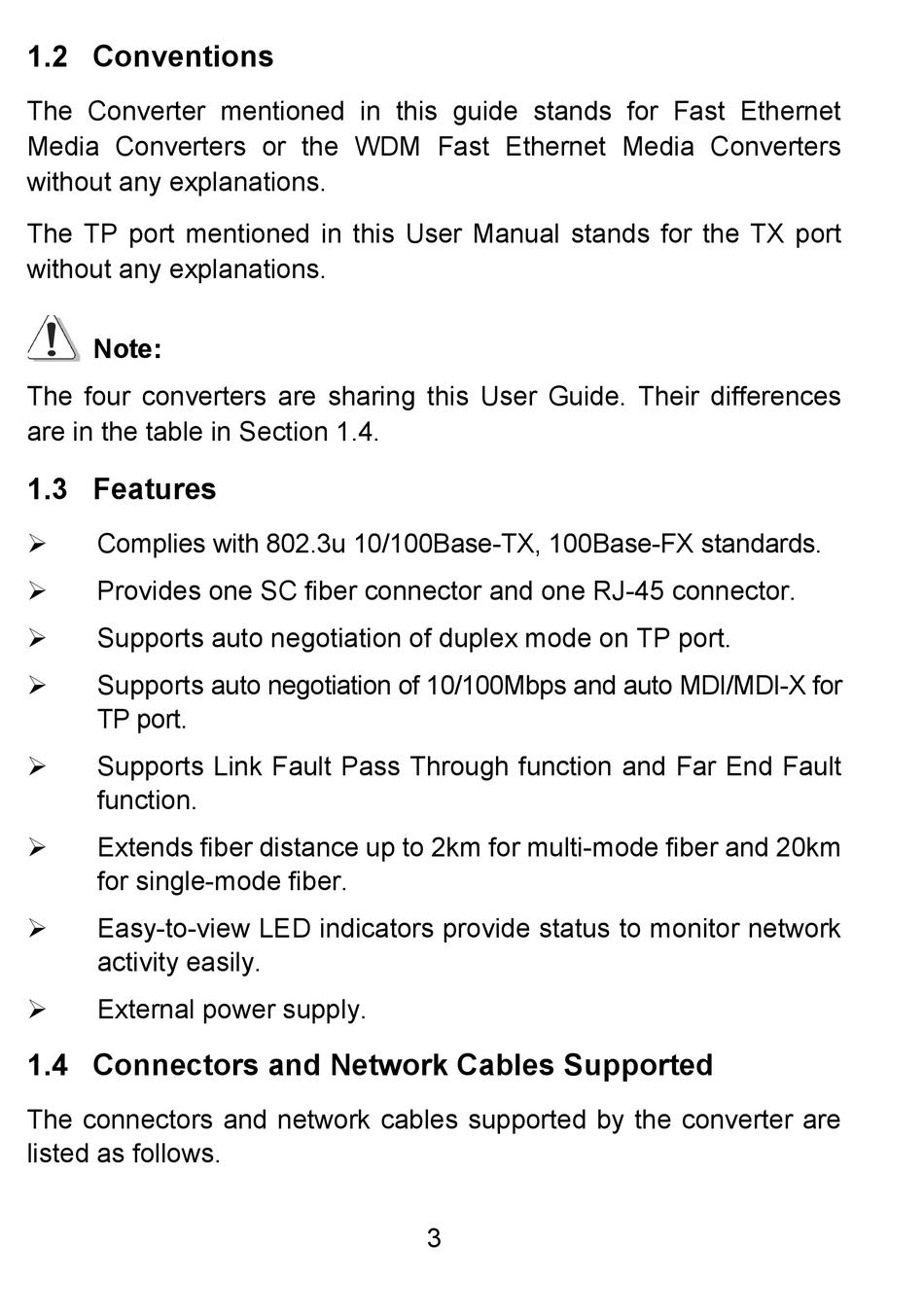

1.2 Conventions

The Converter mentioned in this guide stands for Fast Ethernet
Media Converters or the WDM Fast Ethernet Media Converters
without any explanations.
The TP port mentioned in this User Manual stands for the TX port
without any explanations.
Note:
The four converters are sharing this User Guide. Their differences
are in the table in Section 1.4.

1.3 Features

Complies with 802.3u 10/100Base-TX, 100Base-FX standards.

Provides one SC fiber connector and one RJ-45 connector.

Supports auto negotiation of duplex mode on TP port.

Supports auto negotiation of 10/100Mbps and auto MDI/MDI-X for

TP port.
Supports Link Fault Pass Through function and Far End Fault

function.
Extends fiber distance up to 2km for multi-mode fiber and 20km

for single-mode fiber.
Easy-to-view LED indicators provide status to monitor network

activity easily.
External power supply.


1.4 Connectors and Network Cables Supported

The connectors and network cables supported by the converter are
listed as follows.
3
