Enlarge Your Ethernet Network

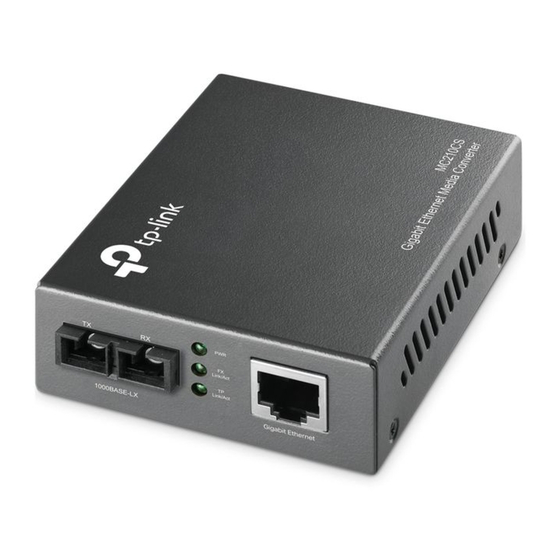

Gigabit Ethernet Media Converter
MC200CM/ MC210CS/ MC220L
Package Contents: Media Converter, Power Adapter, User Guide
Note: MC200CM is used as an example throughout this guide. Other models may differ in appearance.
Scenario 1: Connect Devices with and without Optical Interfaces
Ethernet device
with optical interfaces
Note: MC220L needs to be plugged in with an SFP module to work normally. It is recommended to use a TP-Link SFP module on MC220L, because other vendors'
SFP modules may be incompatible.
Scenario 2: Connect Devices without Optical Interfaces
Ethernet device
without optical interfaces
Note:
1. Either two MC200CMs or two MC210CSs can work cooperatively. Two MC220Ls with the same SFP module can work cooperatively.
2. An MC220L can also cooperate with an MC200CM or an MC210CS. However, the mode and wavelength of the SFP module used in MC220L must be the same as the opposite end.
3. Connect the TX port of one converter to the RX port of the other using a fiber cable.
1000Base-SX interface
LC-SC Fiber Cable
Media Converter
Gigabit Ethernet interface
Twisted-Pair Cable
http://www.tp-link.com/support, or simply scan the QR code.
Media Converter
Gigabit Ethernet interface
Media Converter
Fiber Cable
For technical support and other information, please visit
Ethernet device
without optical interfaces
Twisted-Pair Cable
Ethernet device
without optical interfaces
Gigabit Ethernet interface
Twisted-Pair Cable
© 2018 TP-Link 7106508080 REV4.0.1
