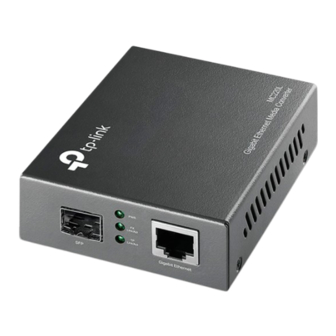

TP-Link Omada MC220L Manual

Enlarge Your Ethernet Network
SFP/SFP+ Media Converter
MC220L/ MC420L
Package Contents: Media Converter, Power Adapter, User Guide
Note: MC420L is used as an example throughout this guide. Other models may differ in appearance.
Scenario 1: Connect Devices with and without Optical Interfaces
Ethernet device
with optical interfaces
Note: It is recommended to use a TP-Link SFP/SFP+ module on MC220L/MC420L respectively, because other vendors' modules may be incompatible.
Scenario 2: Connect Devices without Optical Interfaces
Ethernet device
without optical interfaces
Note:
1. Two converters with a pair of SFP/SFP+ modules can work cooperatively.
10GBASE-SR interface
SFP/SFP+ Module SFP/SFP+ Module
Fiber Cable
Media Converter
Ethernet interface
Twisted-Pair Cable
https://www.tp-link.com/support/?type=smb, or simply scan the QR code.
Media Converter
Ethernet interface
Media Converter
SFP/SFP+ Module
Fiber Cable
For technical support and other information, please visit
Ethernet device
without optical interfaces
Twisted-Pair Cable
Ethernet device
without optical interfaces
Ethernet interface
Twisted-Pair Cable
© 2024 TP-Link 7106511270 REV1.0.0
