Enlarge Your Ethernet Network

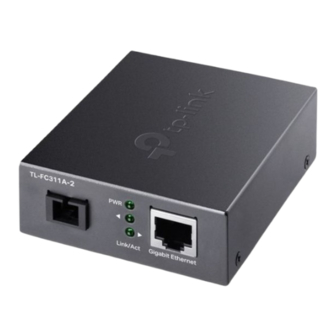

Gigabit WDM Media Converter
Package Contents: Converter, Power Adapter, Installation Guide
Scenario 1: Connect Devices with and without Optical Interfaces
Ethernet Device
with Optical Interfaces
1000BASE-X (Fiber) Interface
LC-SC Fiber Cable
Media Converter
PWR
Gigabit Ethernet
LED Explanation
PWR
On:
Power on
Off:
Power off
Link/Act
On:
Valid link
Flashing:
Transmitting or receiving data
Off:
Invalid link
Ethernet Device
without Optical Interfaces
Gigabit Ethernet
Twisted-Pair Cable
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TP-Link Omada FC311A-2
Summary of Contents for TP-Link Omada FC311A-2
- Page 1 LED Explanation Power on Off: Power off Enlarge Your Ethernet Network Link/Act Gigabit WDM Media Converter Valid link Flashing: Transmitting or receiving data Off: Invalid link Package Contents: Converter, Power Adapter, Installation Guide Scenario 1: Connect Devices with and without Optical Interfaces Media Converter Ethernet Device Ethernet Device...
- Page 2 • Adapter shall be installed near the equipment and shall be easily accessible. TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, • Do not point or stare directly into the beam or into the optical port of the transceiver when it is operating, as this can injure your eyesight 2014/35/EU, 2011/65/EU and (EU)2015/863.
