FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
CONTENTS Package contents ................1 Chapter 1 Introduction ...............2 Overview of the Converter ..........2 Conventions ..............3 Features..............3 Connectors and Network Cables Supported....3 Appearance Indication ..........4 1.5.1 LED Indicators ..........4 1.5.2 Switch ............6 1.5.3 Link Fault Pass Through Function ....7 Chapter 2 Installation Guide ............9 Fast Ethernet Media Converter........9 WDM Fast Ethernet Media Converter......9...
Package contents The following items should be found in your package: One Converter One AC-DC Power Adapter (DC9V/600mA) One User Guide Note: Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact your distributor.

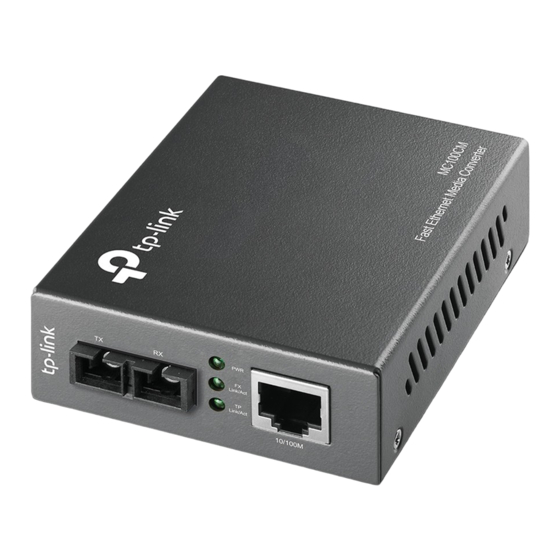

Chapter 1 Introduction Thank you for choosing the MC100CM/MC110CS Fast Ethernet Media Converters or the MC111CS/MC112CS WDM Fast Ethernet Media Converters! 1.1 Overview of the Converter MC100CM and MC110CS are Fast Ethernet Media Converters. MC111CS and MC112CS are WDM Fast Ethernet Media Converters,...
1.2 Conventions The Converter mentioned in this guide stands for Fast Ethernet Media Converters or the WDM Fast Ethernet Media Converters without any explanation. The TP port mentioned in this User Manual stands for the TX port without any explanations. Note: The four converters are sharing this User Guide.
Network Cables: Cat.5 Twisted-Pair (below abbreviated as TP), 1300nm 62.5/125, 50/125um Single-mode/Multi-mode fiber. Transmission Transmission Output Center Model NO. Interface Distance Media Wavelength Multi-mode MC100CM RJ45--SC 1310nm Fiber, TP Single-mode MC110CS-20 RJ45--SC 20km 1310nm Fiber, TP Single-mode MC110CS-40 RJ45--SC 40km...
Name Status Indication Power on Power off The Link Fault Pass Through function enable. The Link Fault Pass Through function disable. There’s a valid link. The converter is receiving or transmitting Link/Act Flashing data from the fiber optic connector. There’s no valid link. The TP port is connected to 100Base-Tx The TP port is connected to 10Base-Tx device or no connection.
1.5.2 Switch TP_AUTO: The TP port operates in Auto-Negotiation mode; TP_DIS: The TP port operates in FORCE mode; TP_100M: The TP port operates in 100Base-Tx; TP_10M: The TP port operates in 10Base-T mode; TP_FDX: The TP port operates in Full-Duplex mode; TP_HDX: The TP port operates in Half-Duplex mode;...
The Mode Of The Device Switch TP_AUTO, TP_100M, TP_FDX, TP:AUTO; LFP ON LFP_ON TP_AUTO, TP_100M, TP_FDX, TP:AUTO; LFP OFF LFP_OFF TP_DIS, TP_100M, TP_FDX, TP:FORCE,100M,FULL; LFP ON LFP_ON TP_DIS, TP_100M, TP_FDX, TP:FORCE,100M,FULL; LFP OFF LFP_OFF (TP_DIS or TP_AUTO), TP_100M, TP:FORCE,100M, HALF; LFP ON TP_HDX, LFP_ON (TP_DIS or TP_AUTO), TP_100M, TP:FORCE,100M, HALF;...
With the Link Fault Pass Through function enabled (optional with switch LFP), TP port and FX port of the same converter will inform each other the fault link status so that when one side of the link fails, the other side will force the link to shut down as soon as noticed. The procedure will be illustrated as shown below.
1310nm short wave laser on single-mode fiber. Transmits and receives data on different fibers Note: You have to use either two MC100CM connectors or two MC110CS connectors to cooperate. 2.2 WDM Fast Ethernet Media Converter 1. The SC fiber connector of MC111CS transmits data by 1550nm short wave laser while receives data by 1310nm short wave laser on one single-mode fiber.
Transmits and receives data on the same fiber Note: You have to use MC111CS and MC112CS at the same time to cooperate.
1. Place two converters back to back between the following end devices. Note: You should use two MC100CM Media Converters or two MC110CS Media Converters, or one MC111CS and one MC112CS to expand your network. Error will occur when you use other ways.
3.1 Installation Procedure Use a fiber cable to connect two converters, or connect a converter with a 100Base-FX Device. 1. Connection of a Converter and a 10/100Base-TX Device (HUB or Switch). • Make sure that the length of the Cat.5 twisted pair cable between the 10/100Base-TX device and the converter is less than 100 meters.
