TP-Link Omada MC220L / MC420L Manual

Package Contents

  • Media Converter
  • Power Adapter
  • User Guide

Connections

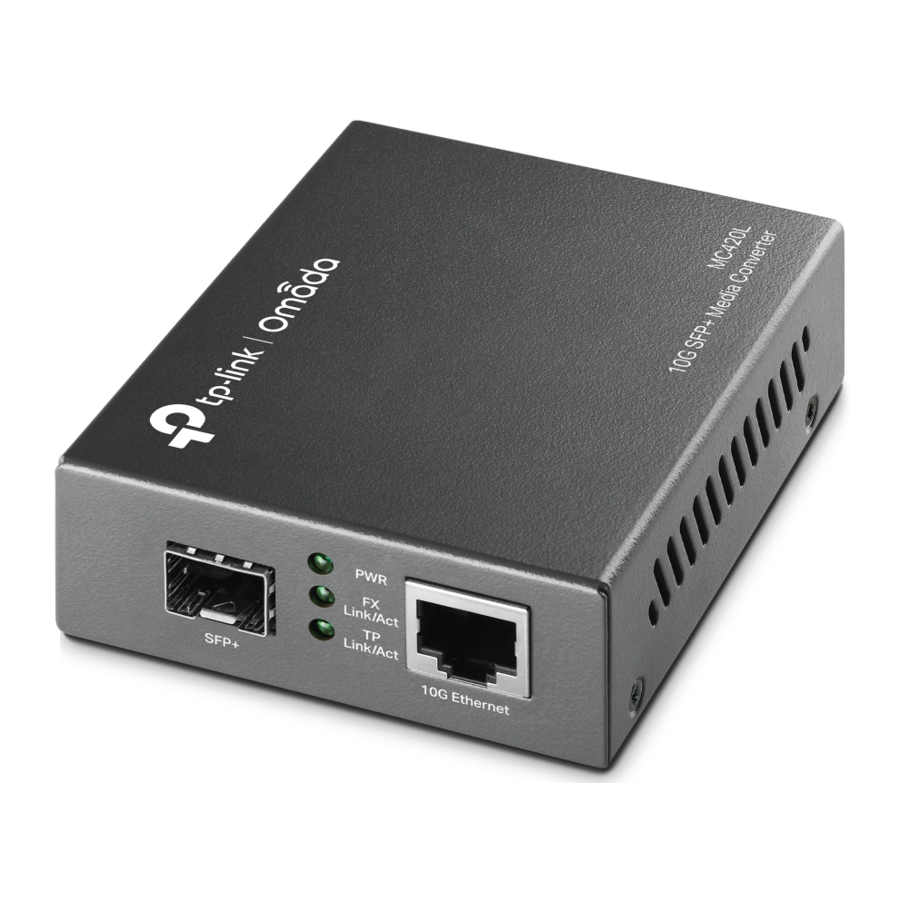

Note: MC420L is used as an example throughout this guide. Other models may differ in appearance.

  1. Connect Devices with and without Optical Interfaces
    Connections - Scenario 1
    Note: It is recommended to use a TP-Link SFP/SFP+ module on MC220L/MC420L respectively, because other vendors' modules may be incompatible.
  2. Connect Devices without Optical Interfaces
    Connections - Scenario 2
    Note:
    1. Two converters with a pair of SFP/SFP+ modules can work cooperatively.

LED Explanation

  • PWR
    On: Power on.
    Off: Power off.
  • Link/Act (for MC220L)
    FX On: There is a valid link for FX Port.
    Flashing: FX Port is transmitting or receiving data.
    Off: There is no valid link for FX Port.
    TP On: There is a valid link for TP Port.
    Flashing: TP Port is transmitting or receiving data.
    Off: There is no valid link for TP Port.

Specifications

General Specifications

Standards For MC220L: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z
For MC420L: IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE802.3z, IEEE802.3ae, IEEE802.3x
LED PWR, FX Link/Act, TP Link/Act
Interface For MC220L: SFP port, RJ-45 jack
For MC420L: SFP+ port, RJ-45 jack
Twisted-Pair For MC220L:
10Base-T: 2-pair UTP/STP of Cat. 3 or above (≤100m)
100Base-TX: 2-pair UTP/STP of Cat. 5 or above (≤100m)
1000Base-T: 4-pair UTP/STP of Cat. 5e or above (≤100m)
For MC420L:
1000BASE-T/2.5GBASE-T/5GBASE-T: 4-pair UTP/STP of Cat. 5e or above (≤100m)
10GBase-T: 4-pair UTP of Cat. 6 (≤55m), 4-pair UTP of Cat. 6a (≤100m)or 4-pair STP of Cat. 6 or above (≤100m)
Fiber & Wave Length For MC220L: depends on the used SFP module
For MC420L: depends on the used SFP/SFP+ module
Power External Power Adapter: 9V/0.6A

Link/Act (for MC420L)

FX Green On: FX Port is linked at 10Gbps, but there is no activity.
Green Flashing: FX Port is working at 10Gbps.
Yellow On: FX Port is linked at 1Gbps, but there is no activity.
Yellow Flashing: FX Port is working at 1Gbps.
Off: There is no valid link for FX Port.
TP Green On: TP Port is linked at 10Gbps, but there is no activity.
Green Flashing: TP Port is working at 10Gbps.
Yellow On: TP Port is linked at 5Gbps/2.5Gbps/1Gbps, but there is no activity.
Yellow Flashing: TP Port is working at 5Gbps/2.5Gbps/1Gbps.
Off: There is no valid link for TP Port.

Environmental and Physical Specifications

Operation Temperature 0˚C to 50˚C (32˚F to 122˚F)
Storage Temperature -40˚C to 70˚C (-40˚F to 158˚F)
Operation Humidity 10% to 90%RH non-condensing
Storage Humidity 5% to 90%RH non-condensing

Safety Information

  • Keep the device away from water, fire, humidity or hot environments.
  • Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
  • Do not use damaged charger or USB cable to charge the device.
  • Do not use any other chargers than those recommended.
  • Adapter shall be installed near the equipment and shall be easily accessible.
  • Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.
  • Do not point or stare directly into the beam or into the optical port of the transceiver when it is operating, as this can injure your eyesight.
  • Use only power supplies which are provided by manufacturer and in the original packing of this product. If you have any questions, please don't hesitate to contact us.

TP-Link USA Corporation
Address: 10 Mauchly, Irvine, CA 92618
Website: https://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: sales.usa@tp-link.com
