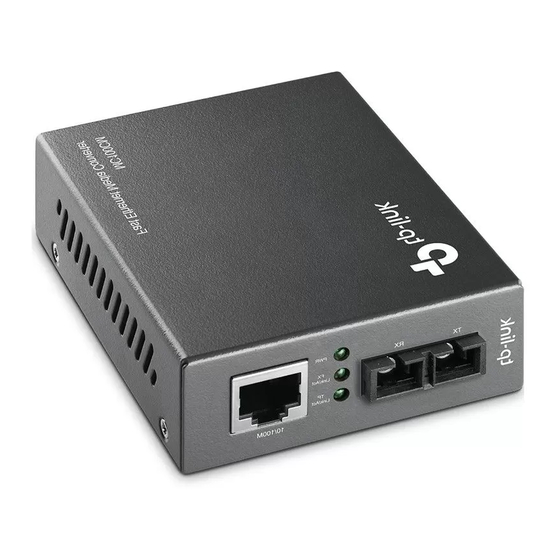

TP-Link MC100CM User Manual
Fast ethernet media converter, wdm fast ethernet media converter
Hide thumbs
Also See for MC100CM:
- User manual (20 pages) ,
- User manual (20 pages) ,
- User manual (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for TP-Link MC100CM
Summary of Contents for TP-Link MC100CM
-
Page 1: User Guide
User Guide MC100CM MC110CS Fast Ethernet Media Converter MC111CS MC112CS WDM Fast Ethernet Media Converter 7106503773... - Page 3 COPYRIGHT & TRADEMARKS Specifications subject change without notice. registered trademark TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.
-
Page 4: Fcc Statement
FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 5 IC STATEMENT This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe Aest conforme à la norme NMB-003 du Canada.
-
Page 6: Table Of Contents
CONTENTS Package contents ................1 Chapter 1 Introduction ...............2 Overview of the Converter ..........2 Conventions ..............3 Features..............3 Connectors and Network Cables Supported....3 Appearance Indication ..........4 1.5.1 LED Indicators ..........4 1.5.2 Switch ............6 1.5.3 Link Fault Pass Through Function ....7 Chapter 2 Installation Guide ............9 Fast Ethernet Media Converter........9 WDM Fast Ethernet Media Converter......9... -
Page 7: Package Contents
Package contents The following items should be found in your package: One Converter One AC-DC Power Adapter (DC9V/600mA) One User Guide One Purchasing Guide Note: Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact your distributor. -
Page 8: Chapter 1 Introduction
Chapter 1 Introduction Thank you for choosing the MC100CM/MC110CS Fast Ethernet Media Converters or the MC111CS/MC112CS WDM Fast Ethernet Media Converters! 1.1 Overview of the Converter MC100CM and MC110CS are Fast Ethernet Media Converters. MC111CS and MC112CS are WDM Fast Ethernet Media Converters,... -
Page 9: Conventions
1.2 Conventions The Converter mentioned in this guide stands for Fast Ethernet Media Converters or the WDM Fast Ethernet Media Converters without any explanation. The TP port mentioned in this User Manual stands for the TX port without any explanations. Note: The four converters are sharing this User Guide. -
Page 10: Appearance Indication
Network Cables: Cat.5 Twisted-Pair (below abbreviated as TP), 9/125um Single-mode fiber and 50/125, 62.5/125um Multi-mode fiber. Transmission Transmission Output Center Model NO. Interface Distance Media Wavelength Multi-mode MC100CM RJ45--SC 850nm Fiber, TP Single-mode MC110CS RJ45--SC 20km 1310nm Fiber, TP Single-mode 1550nmTX... - Page 11 Name Status Indication Power on Power off The Link Fault Pass Through function enable. The Link Fault Pass Through function disable. There’s a valid link. The converter is receiving or transmitting Link/Act Flashing data from the fiber optic connector. There’s no valid link. The TP port is connected to 100Base-Tx The TP port is connected to 10Base-Tx device or no connection.
-
Page 12: Switch
1.5.2 Switch TP_AUTO: The TP port operates in Auto-Negotiation mode; TP_DIS: The TP port operates in FORCE mode; TP_100M: The TP port operates in 100Base-Tx; TP_10M: The TP port operates in 10Base-T mode; TP_FDX: The TP port operates in Full-Duplex mode; TP_HDX: The TP port operates in Half-Duplex mode;... -
Page 13: Link Fault Pass Through Function
The Mode Of The Device Switch TP_AUTO, TP_100M, TP_FDX, TP:AUTO; LFP ON LFP_ON TP_AUTO, TP_100M, TP_FDX, TP:AUTO; LFP OFF LFP_OFF TP_DIS, TP_100M, TP_FDX, TP:FORCE,100M,FULL; LFP ON LFP_ON TP_DIS, TP_100M, TP_FDX, TP:FORCE,100M,FULL; LFP OFF LFP_OFF (TP_DIS or TP_AUTO), TP_100M, TP:FORCE,100M, HALF; LFP ON TP_HDX, LFP_ON (TP_DIS or TP_AUTO), TP_100M, TP:FORCE,100M, HALF;... - Page 14 With the Link Fault Pass Through function enabled (optional with switch LFP), TP port and FX port of the same converter will inform each other the fault link status so that when one side of the link fails, the other side will force the link to shut down as soon as noticed. The procedure will be illustrated as shown below.
-
Page 15: Chapter 2 Installation Guide
1310nm short wave laser on single-mode fiber. Transmits and receives data on different fibers Note: You have to use either two MC100CM connectors or two MC110CS connectors to cooperate. 2.2 WDM Fast Ethernet Media Converter 1. The SC fiber connector of MC111CS transmits data by 1550nm short wave laser while receives data by 1310nm short wave laser on one single-mode fiber. - Page 16 2. The SC fiber connector of MC112CS transmits data by 1310nm short wave laser while receives data by 1550nm short wave laser on one single-mode fiber. Transmits and receives data on the same fiber Note: You have to use MC111CS and MC112CS at the same time to cooperate.
-
Page 17: Chapter 3 Configuration
1. Place two converters back to back between the following end devices. Note: You should use two MC100CM Media Converters or two MC110CS Media Converters, or one MC111CS and one MC112CS to expand your network. Error will occur when you use other ways. -
Page 18: Installation Procedure
3.1 Installation Procedure Use a fiber cable to connect two converters, or connect a converter with a 100Base-FX Device. 1. Connection of a Converter and a 10/100Base-TX Device (HUB or Switch). • Make sure that the length of the Cat.5 twisted pair cable between the 10/100Base-TX device and the converter is less than 100 meters. -
Page 19: Appendix: Specifications
Appendix: Specifications Standard IEEE 802.3 / IEEE 802.3u Connector 1 SC fiber optic; 1 RJ45 jack Cat.5 Twisted Pair:100m Max. Multi-mode Fiber Optic: 2km Distance Single-mode Fiber Optic: 20km Operation: 0ºC ～ 40ºC Temperature Storage: -40ºC ～ 70ºC Storage: 5% ～ 90% RH Non-condensing Humidity Working: 10% ～...
