INSTRUCTION MANUAL
M ULT I MEDI A AU DIO A N D VI SU A L
MODEL : SB-5669LCM

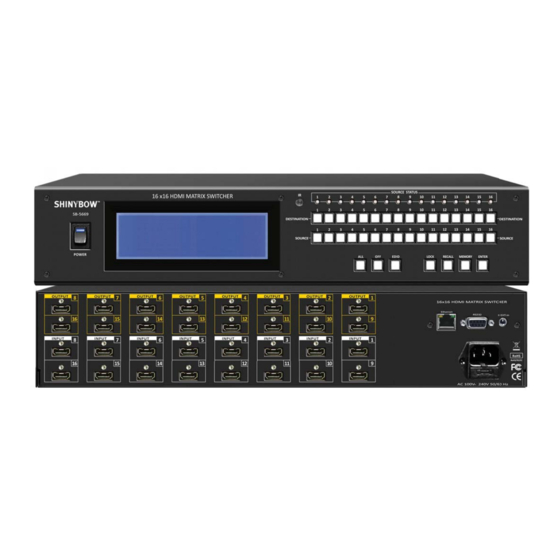

16x16 HDMI MATRIX ROUTING SWITCHER
16x16 HDMI Matrix Routing Switcher w/ Full EDID
Management/Learning 4k2k Capable
HDMI Matrix Routing Switcher Series
Thank you for purchasing the SB-5669LCM 16x16 HDMI Matrix Routing Switcher. You will fi nd this unit easy to
install and highly reliable but it is essential that you read this manual thoroughly before attempting to use 16x16
HDMI Matrix Routing Switcher.
Advertisement
Table of Contents
Related Manuals for Shinybow USA SB-5669LCM
Summary of Contents for Shinybow USA SB-5669LCM
- Page 1 HDMI Matrix Routing Switcher Series Thank you for purchasing the SB-5669LCM 16x16 HDMI Matrix Routing Switcher. You will fi nd this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use 16x16...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
INTRODUCTION • To protect the unit from overheating, do not block any vents or The SB-5669LCM is high-performance 16x16 matrix routing openings in the unit housing that provide ventilation and allow for suffi cient space for air to circulate around the unit. -
Page 4: Features
FEATURES FEATURES • Enables switching of 16x HDMI digital source devices to 16x HDMI devices. • HDMI digital video w/embedded audio, DVI format and HDCP 2.2 compliant. • Seven (7) function button control and worldwide (7) EDID modes for HDTV 4K2K resolutions. •... -
Page 5: Specifications
SPECIFICATIONS SPECIFICATIONS • Type of HDMI Switcher: 16x HDMI inputs to 16x HDMI outputs matrix switcher • HDMI Support: HD 1080p-@60Hz, 4K2K, H36-bit deep color, 3D (1.4a) formats • HDCP Support: HDCP 2.2 Compliant • Video Bandwidth: Double Data Rates:340 MHz, total 6.7 Gbps bandwidth •... -
Page 6: Front Panel
FRONT PANEL FRONT PANEL 1. POWER ON SWITCH The power switch turns the unit on and off. The LCM will illuminate blue to indicate the switcher is ON and receiving power. The switcher will remember the last setting during a power cycle. When power is removed and resorted, the last confi guration will be evoked. 2. - Page 7 FRONT PANEL FRONT PANEL 8. FUNCTION KEY - ALL Disables (mute) video on all destinations OR assign the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show ”0” to indicate none of the destinations are assigned a video source. Option 2 - Press ALL followed by Source 1 thru 16.
- Page 8 FRONT PANEL FRONT PANEL 12. FUNCTION KEY - MEMORY The system can save up to 16 sets of switching routes, which are stored in local memory using Source keys 1 thru 16 or Destination buttons 1 thru 16 as the memory location. - Confi...
-
Page 9: Rear Panel
BACK PANEL BACK PANEL 1. DC POWER INLET: Power Jack: The switcher is fi tted with a DC power plug input connector. DC Jack - Inner OD Ø 2.1 mm (+) Ensure that the used is of an approved type and is of suffi cient Outside OD Ø... -
Page 10: Remote Control
REMOTE CONTROL Before making any connections to the switcher, observe the following: • Ensure the mains voltage supply matches the label on the supplied plug- Pack (+/- 10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •... -
Page 11: Remote Protocol Commands
REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC STANDARD) HOW TO SETUP IR CODES : CUSTOM CODE : 32CD POWER ON : 32CD A15E POWER OFF : 32CD A25D ALL : 32CD B04F OFF : 32CD B14E LOCK : 32CD B54A EDID : 32CD B748 RECALL : 32CD B24D ENTER : 32CD B34C... -
Page 12: Edid Functions
EDID FUNCTION EDID FUNCTION SETUP EDID Setup How to enter and exit ENTER EXIT 1. ENTER : After the switcher is turned on, the screen shows the main page. Press EDID to enter the EDID setup page. EDID EDID 2. SELECT : When you enter, EDID mode selection will show on the top. DES is an abbreviation for destination while SRC for source. -
Page 13: Edid Function
EDID FUNCTION EDID function : 7x Embedded EDID Modes Mode 1. FSS (Fast Speed Start) Fast Speed Start mode shortens the startup time of the switcher. Selecting this mode does not force the EDID setup to be cancelled. Users may fi rst select one EDID mode from mode 2 to 8, and then select mode 1 for fast speed start. - Page 14 EDID FUNCTION EDID FUNCTION : LEARNING Learning EDID Single Destination to Single Source EDID Destination 1 thru 16 Source 1 thru 16 Enter Copy the EDID of a single destination device and pass it to a single source. The source device will output video and audio according to the EDID of the destination.
- Page 15 EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER Learning Auto Mode Defi nition Let the source(s) learn the EDID from Let all the sources output the highest common resolution of all the a single source and output video/audio connected destination devices. accordingly.
- Page 16 EDID FUNCTION Q & A Must a destination device display video and sound based on its own EDID? No. A destination device does not have to display its native resolution. Through the EDID learning function, a destination device can display based on the EDID of another destination, assuming there is no capability issue. Take the following 8x8 switcher for example. Suppose all the destination and source ports are connected.
-
Page 17: Typical Application
TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection using IR transmitters (SB-101) and IR receiver (SB-100) with SB-6335T & SB-6335R to control a projector. NOTE: 1. IR Control Projector Over HDBaseT Extender: SB-6335 HDBaseT Transmitter SB-6335R HDBaseT Receiver 2. RS-232 Control 3. External IR Remote. 4. - Page 18 TYPICAL APPLICATION INSTALLING DIAGRAM Example connection using IR transmitters (SB-101) and IR receivers (SB-100) with SB-6335T and SB-6335R to control a satellite receiver. NOTE: 1. IR Control Satellite Receiver Over HDBaseT CAT6/6a/7 extender from room: SB-6335 HDBaseT CAT5e/6/7 Transmitter SB-6335R HDBaseT CAT5e/6/7 Receiver 2.
-
Page 19: Ir Extender
IR EXTENDER REAR PANEL IR EXTENDER PORT *** When you plug the External IR extender into the switcher, the front panel IR receiver remains active. *** IR EXTENDER PACKAGE : HOW TO SETUP THE IR EXTENDER COMPONENTS... -
Page 20: Ethernet Protocol
ETHERNET SERIAL INTERFACE ETHERNET SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM. VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended Ethernet Protocol Instruction Manual. ETHERNET SERIAL INTERFACE Pin Ethernet Reference TXOP TX + TXON TX - RXIP RX +... -
Page 21: Rs-232 Protocol
RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM. VERSION -2.0 COMPATIBLE RS-232 SERIAL INTERFACE RS-232 Defi nition -------- Not used Transmitter Receiver -------- Not used Ground -------- Not used -------- Not used -------- Not used -------- Not used RS-232 PROTOCOL COMMANDS (RS-232 Control driver V2.0.1) The ShinybowUSA switcher can be controlled via the RS-232 serial control port to allow for interfacing to a PC, or similar third party control... -
Page 22: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 23 M ULT I MEDI A AU DIO A N D VI SU A L 1399 Wildfi re Lane | Frisco, TX 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
