M U L T I M E D I A A U D I O A N D V I S U A L
Instruction Manual
MODEL : SB-5645

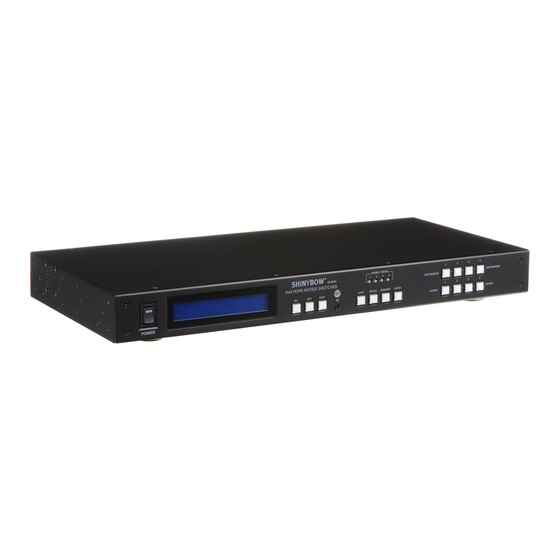

4x4 HDMI MATRIX SWITCHER
HDMI Matrix Switcher Series
Version No.: 5645-20120831-002
Thank you for purchasing the SB-5645 4x4 HDMI Matrix Switcher. You will find this unit easy to
install and highly reliable but it is essential that you read this manual throughly before attempting
to use 4x4 HDMI Matrix switcher.
Part No.: ENCL005645000A2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Shinybow USA SB-5645
Summary of Contents for Shinybow USA SB-5645
- Page 1 HDMI Matrix Switcher Series Version No.: 5645-20120831-002 Thank you for purchasing the SB-5645 4x4 HDMI Matrix Switcher. You will find this unit easy to install and highly reliable but it is essential that you read this manual throughly before attempting to use 4x4 HDMI Matrix switcher.
-
Page 2: Safety Information
SAFETY INFORMATION WARNING! CAUTION RISK OF ELECTRIC SHOCK TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT OPEN DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. This symbol is intended to alert the user to the presence of uninsulated of uninsulated “dangerous voltage”... -
Page 3: Table Of Contents
TYPICAL APPLICATION - HDMI IN/OUT _____________________________________________________ TYPICAL APPLICATION - HDBaseT TX/RX connection _____________________________________________________ IR REMOTE CONTROL _____________________________________________________ IR REMOTE CONTROL - IR DATA CODE _____________________________________________________ IR EXTERNAL INSTALL _____________________________________________________ CEC FUNCTIONS _____________________________________________________ RS232 PROTOCOL _____________________________________________________ LIMITED PAGE 3 SB-5645 INSTRUCTION & OPERATION MANUAL... -
Page 4: Introduction And Package Contents
INTRODUCTION AND PACKAGE CONTENTS INTRODUCTION The SB-5645 is high-performance 4x4 matrix routing switcher for HDMI signals. This switcher supports data rates up to 6.75 Gbps, enabling 1080p HDMI formats and UXGA/WUXGA/DVI resolution to any HD display. High Definition Digital signals can be selected and distributed to any 4 outputs simultaneously. -
Page 5: Features
15. Consumer Electronic Control (CEC) switch all open or OFF The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be invoked. PAGE 5 SB-5645 INSTRUCTION & OPERATION MANUAL... -
Page 6: Specifications
Power Consumption 2150 mA Maximum Safety Approvals CE, FCC, RoHS (2002/95/EC). Product Weight 1.85 Kgs / 3.08 lb As product improvement is continuous, specifications are subject to change and without notice or liability. PAGE 6 SB-5645 INSTRUCTION & OPERATION MANUAL... -
Page 7: Edid Function - Edid Setup
Mode 1 : FSS Mode 2 : H24-3D Mode 3 : H24M-3D Mode 4 : H36-3D Mode 5 : H36M-3D Mode 6 : DVI-D 1280x1024-60Hz Mode 7 : DVI-D 1920x1200-60Hz Mode 8 : AUTO PAGE 7 SB-5645 INSTRUCTION & OPERATION MANUAL... -
Page 8: Edid Function - Embedded Edid
1920x1200-60Hz (DVI-D) DVI Support : EDID DVI-D 1920 x 1200 60Hz 7.1920 1200-60HZ DVI-D Mode 8 . AUTO <Default> All Outputs will be set to the highest common resolution of all connected display devices. PAGE 8 SB-5645 INSTRUCTION & OPERATION MANUAL... -
Page 9: Edid Function - Learning Edid
EPROM and the EDID data cannot change. Please select new learning destination to sources or change to one of the embedded EDID modes when you want to remove the learning EDID memory from EPRPM PAGE 9 SB-5645 INSTRUCTION & OPERATION MANUAL... -
Page 10: Edid Function - Learning Edid
Learning anyone 1~4 Destination EDID to all sources. Step 2 . Press destination button 1 thru 4 Step 3 . Learning selected destination EDID to all sources. Press ALL button Step 4 . Press ENTER button To confirm entries. PAGE 10 SB-5645 INSTRUCTION & OPERATION MANUAL... - Page 11 Destination device #1 will set to the highest common resolution and Audio of source #1 Example for multiple sources Destination device #1, #2, #3 will be set to the highest common resolution and Audio available and source device #1 will output this same resolution. PAGE 11 SB-5645 INSTRUCTION & OPERATION MANUAL...
- Page 12 - Press ALL followed by OFF button. The display will show " 0 " indicating all destinations have no video selected. Option 2 - Press ALL followed by Source 1 thru 4. The display will show the Source selected. - Press ENTER The pre-set source selection will be assigned all destinations. PAGE 12 SB-5645 INSTRUCTION & OPERATION MANUAL...
-
Page 13: Front Panel
- press 1 thru 4 on either Source or Destination row. - press ENTER The pre-set configuration will execute. Operation completes. Note: Operation will abort if no keys are dressed within 5 seconds. FUNCTION KEY - ENTER Press ENTER to confirm entries. PAGE 13 SB-5645 INSTRUCTION & OPERATION MANUAL... -
Page 14: Front Panel
- press EDID to select new EDID mode or select source row #1 or #2 for LINK source EDID again. 19 INCH EAR MOUNT PAIR Converts desktop to 19 inch rack mount. Bracket (part # 1U-440L) INCLUDED. Image shows rack mount bracket attached. SB-5645 INSTRUCTION & OPERATION MANUAL PAGE 14... -
Page 15: Rear Panel
DVI digital video sources. With the proper adapters, the switcher HDMI Digital Video/Audio, Connector with fix screw can be used with DVI digital video signals Output 1 ~ Output 4 HDCP compliant. PAGE 15 SB-5645 INSTRUCTION & OPERATION MANUAL... -
Page 16: Typical Application
Extender-Transmitter Blu-ray CAT5 out SB-100 IR in IR-Receiver SB-100 IR-Receiver IR Extender Cable SB-5645 IR PC RS232 Control Projector Remote Control Support HDBaseT Extender by SB-6335 Transmitter and SB-6335R Receiver via CAT5e/6/7 cable PAGE 16 SB-5645 INSTRUCTION & OPERATION MANUAL... - Page 17 A R C T ARC Control Box SB-101 H D M I D I S P L IR Signal from Satellite Receiver Remote Control Support HDBaseT Extender by SB-6335 Transmitter and SB-6335R Receiver via CAT5e/6/7 cable SB-5645 INSTRUCTION & OPERATION MANUAL PAGE 17...
-
Page 18: Remote Control
2 Mode 2 : H24-3D 3 Mode 3 : H24M-3D 4 Mode 4 : H36 5 Mode 5 : H36M 6 Mode 6 : H36-3D 7 Mode 7 : H36M-3D 8 Mode 8 : AUTO PAGE 18 SB-5645 INSTRUCTION & OPERATION MANUAL... - Page 19 Mode 4 : H36 : 1CE3 E31C Mode 5 : H36M : 1CE3 E41B Mode 6 : H36-3D : 1CE3 E51A Mode 7 : H36M-3D : 1CE3 E619 Mode 8 : AUTO : 1CE3 E718 PAGE 19 SB-5645 INSTRUCTION & OPERATION MANUAL...
-
Page 20: Ir Extender Connection
Tip Ring Tip:Signal Ring:VCC Sleeve:GND Sleeve Tip (center) Step 2 Step 3 Signal Cable Signal Cable Switcher IR EXT. In RoHS/95/EC INPUT DC 12V IR Receiver (SB-100) RS - 232 IR EXT. Cable PAGE 20 SB-5645 INSTRUCTION & OPERATION MANUAL... - Page 21 The pre-set configuration will execute. Not all device support CEC. Check with your Users Guide for additional information and specifications. To ensure stable operation, HDMI connections should only be made with switcher powered OFF. PAGE 21 SB-5645 INSTRUCTION & OPERATION MANUAL...
- Page 22 The serial communication parameters are 9600 baud, 8 bit, No Parity and 1 stop bit - this is often referred to as 9600 8N1. When the unit recognises a complete command it will perform the requested action - there is no delimiter character required. PAGE 22 SB-5645 INSTRUCTION & OPERATION MANUAL...
-
Page 23: Limited Warranty
Replace any cable exhibiting these problem. You also must use the highest quality cables if you want to achieve the best results. Poor quality cables provide will poor quality signals. PAGE 23 SB-5645 INSTRUCTION & OPERATION MANUAL... - Page 24 M U L T I M E D I A A U D I O A N D V I S U A L w w w . s h i n y b o w . c o m...
