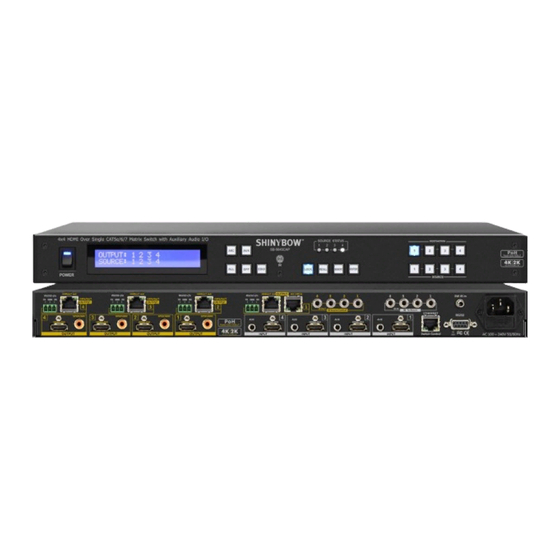

- Page 1 SB-5645CAP 4x4 HDMI-HDBaseT Matrix Switch with Auxiliary Audio I/O ™ with PoH (Power Over HDBaseT ™...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
25MHz~340MHz. Supports UXGA/WUXGA/DVI 1920x1200 resolution to any HD display. The SB-5645CAP has 1x HDMI We reserve the right to make improvements to this document and Auxiliary Audio (analog stereo audio) connector per Input, and/or product at any time and without notice. -
Page 4: Features & Contents
The switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be invoked. PACKAGE CONTENTS Check that you have the following components; • SB-5645CAP with PoH Matrix Switcher • RS-232 V2.0/Ethernet V2.0 Protocol Instructions • Master wireless IR Remote Control (SW-5645CAK) •... -
Page 5: Specifications
SPECIFICATIONS SPECIFICATIONS • Type of HDMI Switcher: (4) Inputs to (4) Outputs HDMI over HDBaseT Matrix Switch with Audio and Extension ™ • HDMI Support: HDMI 4K2K, 1080p@60Hz, H36-bit Deep color, 3D of HDMI V1.4 formats • HDBaseT Support: Bi-directional IR, RS-232, Multi format audio and Ethernet over one CATx 6/6a/7 cable ™... -
Page 6: Front Panel
FRONT PANEL FRONT PANEL 1. POWER SWITCH: The power switch turns the unit on and off. The LED will illuminate blue to indicate that the switcher is ON and is receiving power. The switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be evoked. - Page 7 FRONT PANEL FRONT PANEL 9. FUNCTION KEY - ARC: Audio Return Channel (ARC) is a feature that sends audio from the TV back down the HDMI cable to its source device, in this case, the switcher, Not all displays support ARC; check your Users Guide for additional information.
- Page 8 FRONT PANEL FRONT PANEL 10. FUNCTION KEY - AUX (The audio additionalon the “ Audio / ARC” port ): The AUX FUNCTION feature allows you to replace the embedded HDMI audio signal with an audio signal that is connected to the switchers Audio AUX Input. Using the AUX function replaces the audio and does not mix the audio.
- Page 9 FRONT PANEL FRONT PANEL 12. FUNCTION KEY - EDID (1): Used to display change current EDID mode. - Press EDID to select new EDID mode or select - Press SOuRCE row #1 or #2 Select EDID modes. - Press ENTER to ready memory location. - Or press EDID again to cancel operation.
- Page 10 FRONT PANEL FRONT PANEL 13. FUNCTION KEY - ALL: Disables (mutes) video on all destinations OR Selects the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show “ 0 “ indicating all destinations have no video selected.
- Page 11 FRONT PANEL FRONT PANEL 17. FUNCTION KEY - RECALL: The system will show previously stored presets, up to a total of 8. Presets are stored in local memory using Source keys 1 thru 4 or Destination keys 1 thru 4 as the memory preset location. - Press RECALL button.
-
Page 12: Rear Panel
BACK PANEL BACK PANEL 1. DC POWER INLET: POWER SOCKET: The switcher is fitted with a AC power plug input Connector Type: IEC 60320 C13 connector. Ensure that the plug used is of an approved type and is of sufficient current carrying connector capacity with the correct voltage and connector polarity. - Page 13 BACK PANEL BACK PANEL 5. INPUTS - 1, 2, 3 & 4 HDMI: HDMI CONNECTOR: Connects a HDMI signal source to this HDMI type A SMD 19pin Input. This HDMI port supports HDMI with embedded audio and female socket connector. DVI with AUX audio sources.
- Page 14 BACK PANEL BACK PANEL REMOTE PORT: 9. HDBASET RS 232 - 1, 2, 3 & 4 CONNECTION: ™ Terminal block female 3pin (4) RS-232 control connector. ports allows for interfacing to a PC. RS-232 controls via the switchers HDBaseT Transmitter to (4) rooms each via the D-sub- ™...
- Page 15 BACK PANEL - HDBASET OUT & RS-232-IR TRANSMISSION ™ BACK PANEL-HDBASET ™ 15. OUTPUT - 1, 2, 3 & 4 HDBASET (Transmitter w-PoH): HDBaseT Transmitter Connector: ™ ™ Sends (4) HDMI and control signals via the switchers (4) HDBaseT 4x RJ-45 Jack 8P8C female socket. ™...
-
Page 16: Remote Control
REMOTE CONTROL Before making any connections observe the following: • Ensure the mains voltage supply matches the label on the supplied plug- Pack (+/- 10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •... -
Page 17: Remote Protocol Commands
REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES : CUSTOM CODE : 44BB DATA CODE : POWER ON : 44BB A15E EDID : 44BB B748 LOCK : 44BB B54A POWER OFF : 44BB A25D RECALL : 44BB B24D MEMORY... - Page 18 ROOM REMOTE CONTROLS ROOM REMOTE CONTROL #1 ~ #8 CUSTOM CODE AND DATA CODES IR CUSTOM AND DATA CODES (NEC Standard) PRESS Number To Select SOuRCE CuSTOM CODE : 44BB IR-01 DATA CODE: IR-02 DATA CODE: SOURCE #1 : 44BB 11EE SOURCE #1 : 44BB 21DE SOURCE #2 : 44BB 12ED SOURCE #2 : 44BB 22DD...
-
Page 19: Ethernet Serial Interface
ETHERNET SERIAL INTERFACE ETHERNET SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM. VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended Ethernet Protocol Instruction Manual. Example of the commanded string to select Inputs: FuNCTION COMMAND VARIABLES Select source Source xxx;... -
Page 20: Rs-232 Serial Interface
ETHERNET & RS-232 SERIAL INTERFACE ETHERNET SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM. VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended Ethernet Protocol Instruction Manual. Example of the commanded string to select Inputs: FuNCTION COMMAND VARIABLES... -
Page 21: Edid Functions
EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER EDID Setup To Change the EDID Setup Step 1. Press the EDID button The display will show the currently selected EDID mode Step 2. Press SOuRCE #1 or #2 button row The button will flash blue and the display will show the current Embedded EDID Status. Step 3. -
Page 22: Edid Function
EDID FUNCTION 7 EMBEDDED EDID MODES Mode 1. FSS (Fast Speed Start) Fast Speed Start mode shortens the startup time of the switcher. Selecting this mode does not force the EDID setup to be cancelled. Users may first select one EDID mode from mode 2 to 3, and then select mode 1 for fast speed start. - Page 23 EDID FUNCTION Learning EDID Single to Single Example : Learn Destination #8 EDID To Source #5. Step 1. Press EDID button The button will flash blue and the display will show the current Embedded EDID Status. Step 2. Press the DESTINATION #4 button row Copy the Destination #4 Display EDID. Step 3.
- Page 24 EDID FUNCTION EDID MULTIPLE LEARNING MODE-1 SINGLE LEARNING EDID #1 Learning EDID from Destination to Source EDID > DESTINATION Single Learning EDID mode-#1 setup Press Button: The LCM will be show LEARNING. Press: EDID > DESTINATION > SOURCE > ENTER Switcher will LEARN destination HDMI EDID and pass the selected source.
-
Page 25: Ir Extender
IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SB-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . -
Page 26: Typical Application
INSTALLING DIAGRAM Samples Connection : 1. Using External IR, RS-232 or Ethernet commands to control the switcher SB-5645CAP via PC or SB-100 IR receivers to transmit the SB-5645CAP’s IR signal. 2. Audio output link ARC from TV return channel, HDMI audio source or mixing Auxiliary audio. - Page 27 TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection using SB-5645CAP HDBaseT Transmitters and one HDBaseT Receiver (SB-6335R) to control a projector via RS- ™ ™ 232 or IR signals. NOTE : 1. IR Control Projector Over HDBaseT Extender: SB-5645CAP ™ HDBaseT Transmitter (with PoH) SB-6335R5 HDBaseT ™...
-
Page 28: Hdbaset ™ Application
#2 “IR To Room.” From the SB-6335R5 (PoH), the IR Output is connected to the projector. This allows remote operation of the projector from the SB-5645CAP. The IR control for source devices uses the same port number on “IR Source” as the Source device connection. In this example, the Blu-Ray player is connected to Input port #4. -
Page 29: Hdbaset Application
HDBASET APPLICATION ™ APPLICATION Optional 19 inch Rack Mount Bracket for SB-6335T and/or SB-6335R: Complete 19 inch 4U rack mount of SB-6069 Install Application : SB-6335T/R SB-6069 (optional) SB-6335TR 19 INCH 4u-10P RACK MOuNT 1. Model No. : #4U-10p-M130MM SB-6335T/R 4U Ear mount pairs Parts No.: MEER6069ER13000 2. - Page 30 HDBASET APPLICATION ™ RACKMOUNT (OPTIONAL) SB-6075A: SB-6335T/R 19 INCH 1RU-1UNIT RACK MOUNT Model No.: #1U-1p-L440-44MM SB-6075B: SB-6335T/R 19 INCH 1RU-2UNIT RACK MOUNT Model No.: #1U-2p-L440-44MM SB-6069: SB-6335T/R 19 INCH 4U-10P RACK MOUNT Model No.: #4U-10p-L130MM SB-6335T/R 4U Ear mount pairs Parts No.: MEER6069ER13000...
-
Page 31: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 32 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
