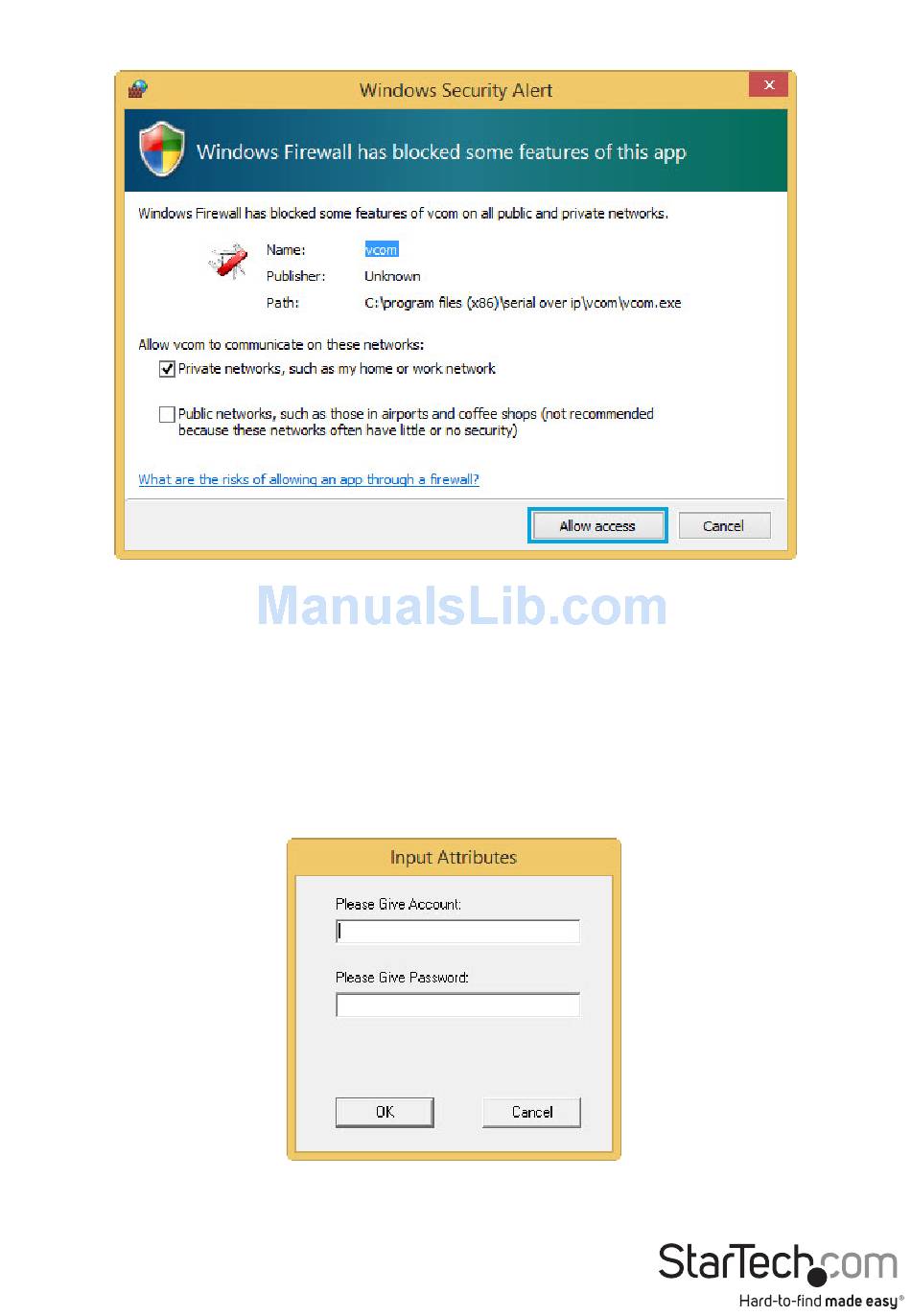

3. If required, allow access to the software through the Windows Firewall by clicking

the "Allow access" button.

4. Once the device is found, configure the PC to the same IP domain by clicking the

"Configure" button. The default IP address of the device is "192.168.1.1".

Note: The default Gateway Address is "192.168.1.254".

5. In the "Input Attributes" dialog, enter the following:

• Account Name: admin

• Password: 00000

6. Once the device is connected, the "Configure Dialog" will open to set your desired

IP settings.
