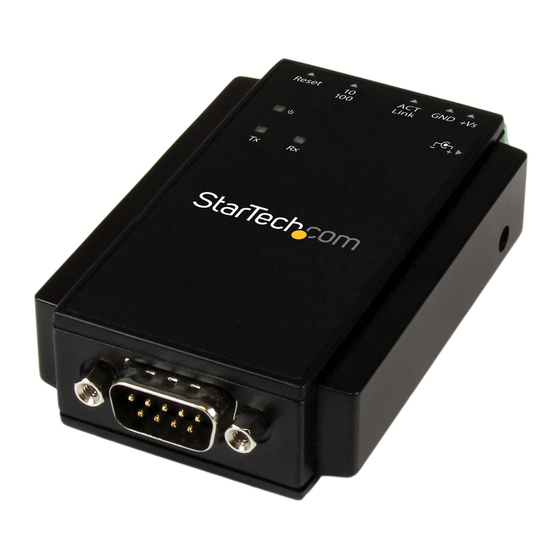

StarTech.com NETRS232 Quick Installation Manual
  1. Manuals
  2. Brands
  3. StarTech.com Manuals
  4. Network Hardware
  5. NETRS232
  6. Quick installation manual

StarTech.com NETRS232 Quick Installation Manual

Hide thumbs Also See for NETRS232:
Table of Contents

Advertisement

Quick Links

Download this manual
NETRS232
One/Two/Four Port
Quick Installation Guide
Rev. E01

Advertisement

Table of Contents
loading

Related Manuals for StarTech.com NETRS232

Summary of Contents for StarTech.com NETRS232

  • Page 1 NETRS232 One/Two/Four Port Quick Installation Guide Rev. E01...

  • Page 2: Getting Started

    NETRS232.The NETRS232 places the serial data in a TCP/IP wrapper and sends it out its Ethernet port. Data moving the other direction, from the Ethernet side of the NETRS232 to the serial device, undergoes the same process in reverse. NETRS232s use industry- standard hardware interfaces and have broad Windows operating system support ("Driver mode").

  • Page 3: Hardware Setup

    Hardware Setup 1. Connect the power supply to the NETRS232 and to AC power. 2. The power (red) LED will light to indicate that the unit is receiving power. 3. Connect a network cable to the Ethernet RJ-45 jack of the NETRS232.The other end of the network cable can be attached...
  • Page 4 (if needed): port2 ... etc. Before using the NETRS232 you will need to unlock the unit using the administrative password in order to configure the device’s IP address and other settings. We recommend changing the administrative password to something other than the factory default for best security.
  • Page 5 E. WAN configuration F. Upgrading software A. Running the NETRS232 setup software The installation CD has files to install Windows NETRS232 drivers on your PC and to detect NETRS232s on your network.To run the installation software, insert the installation diskette and run "Setup.exe".The...

  • Page 6: Configuring Network Settings

    NETRS232 to the network. Instead, either: 1) connect the NETRS232 to a network segment that is not already using the NETRS232 default IP address for another device or, 2) connect the NETRS232 directly to a host PC using an Ethernet crossover cable.
  • Page 7 PC and to the NETRS232. NOTE: Changing the network settings of a NETRS232 device may make that device unavailable to other stations that have activated a connection to that device using older network settings. NOTE:...
  • Page 8 Choose the setting you wish to change. In the configuration screen that appears, enter the network settings you wish for that NETRS232. Once the new values are entered and accepted, the NETRS232 will reboot to implement the new network settings.
  • Page 9 Installation CD. Note on subnet configuration If the NETRS232 is on a different subnet from a client station that is attempting to access it, the NETRS232 will be visible in an instance of the IP-Extender Manager...
  • Page 10 IP-Extender Manager , and select "Deactivate".To deactivate all ports on a particular NETRS232, right click on that device in the left panel of the Manager and select “Remove All” .
  • Page 11 Activated ports appear in Windows’ Device Manager under the "Ports (COM & LPT)" branch as "IP-Extender" ports, with their associated COM numbers. Activating and deactivating NETRS232 ports on one computer does not affect the operation of those ports on other systems.
  • Page 12 D. Optional advanced port configuration NETRS232 ports that have been activated on your PC can generally be used immediately without further configuration. Additional configuration options can however be accessed through the Extender Manager .These configuration options are discussed in detail in the “advanced.pdf”...

  • Page 13: Wan Activation

    E. WAN activation Activating a NETRS232 on a WAN is be done in two different ways, depending on the network location of the NETRS232: • NETRS232 located externally – NETRS232 is directly accessible on the Internet. • NETRS232 located internally – NETRS232 is located behind a gateway or router and is not directly accessible.
  • Page 14 5. Record the TCP port number of the port(s) to be accessible. 6. Close your browser. 7. With the IP address and TCP port number(s) of the NETRS232 in mind, enable port forwarding on your gateway/router for each port to be made remotely accessible.This will require you to...

  • Page 15: Upgrading Software

    . In the right hand pane you should find a new port "NETRS232 Serial Port (COMXX)" resembling the WAN activation icon. 11. Repeat step 9 for any additional WAN activations you wish to create. F. Upgrading Software New versions of NETRS232 software and firmware may be found at www.startech.com.
  • Page 16 This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
