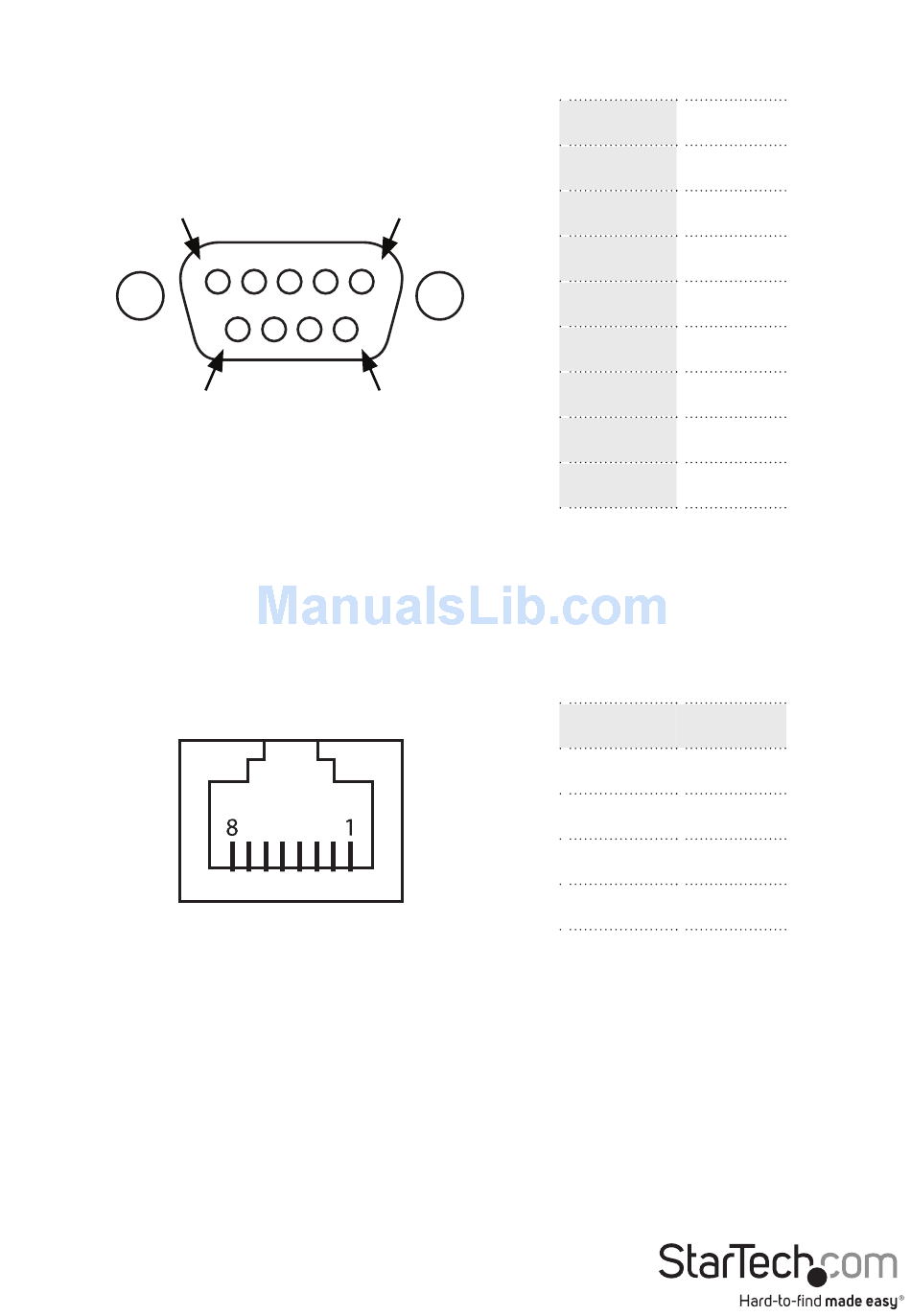

DB-9 Connector Pinout

1
RJ-45 Connector Pinout
Instruction Manual
6
5
9
3
Pin 1
DCD
Pin 2
RXD
Pin 3
TXD
Pin 4
DTR
Pin 5
GND
Pin 6
DSR
Pin 7
RTS
Pin 8
CTS
Pin 9
RI
PIN
Define
1
TX+
2
TX-
3
RX+
6
RX-
