  • Page 1 DIN PC-333x Series User’s Guide...
  • Page 2 Copyright 2014 DMP Electronics Inc. Special Notice to Users DMP Electronics Inc. provides no warranty with regard to this manual, the software, or other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to this manual, the software, or such other information.
  • Page 3 Trademarks Acknowledgment The DIN PC-333x Series is the registered trademarks of DMP Electronics Inc. Microsoft, Windows, and AMI are registered trademarks of Microsoft Corporation and American Megatrends Inc. in the United States and/ or other countries respectively. Other brand names, product names or trade names appearing in this document are the properties and registered trademarks of their respective owners.

  • Page 4: Safety Information

    Safety Information WARNING  Do not expose the DIN PC to rain or moisture, in order to prevent shock and fire hazard.  Never install the DIN PC in wet locations.  Do not open the cabinet to avoid electrical shock. Refer to your nearest dealer for qualified personnel servicing.
  • Page 5 Regulatory FCC Class A Note This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 6: Product Description

    DMP and Users in pursuant of trading. Product Description: With this product, herewith also known as DIN PC-333x Series, which is a simplified & an economical design of an embedded device for Special Purpose Personal Computing. The basic specification of this product is comprised of the x86 technology design, and with onboard 1GB/ 2GB DDR2 System memory, VGA display, USB, and LAN Interfaces.

  • Page 7: Table Of Contents

    Contents Chapter 1 02 Unpacking Your DIN PC Chapter 2 05 DIN PC-333x Series Overview 07 System Specifications 08 Peripherals Connecting Chapter 3 10 BIOS Reconfiguring 11 Install the Driver 13 Additional Information 14 Linux Installation Guide Chapter 4 23 Technical Specifications...
  • Page 8 Chapter...

  • Page 9: Unpacking Your Din Pc

    Unpacking Your DIN PC Congratulation! You have just acquired DIN PC-333x Series device, please check the following items: Packing List Q’ty Item No. Description DIN PC-333x Series DIN Rail Mountable PC 3-Pin Plug-In Type Vertical Terminal Block Note: The accessories are subject to change without immediate notice.
  • Page 10 With compact dimensions of 152 x 104 x 54 mm (W x H x D), the DIN PC-333x Series fits in small control boxes, as well as directly in a machine or the machine stand.
  • Page 11 Chapter...

  • Page 12: Din Pc-333X Series Overview

    C & D: COM5 & COM6 Port RS-232 port x 2 E & F: GPIO P8 & P9 8-bit GPIO port x 2 Available in DIN PC-333x Series GPIO Version G: RJ-45 LAN 10/100 Mbps H: RJ-45 G LAN 1 Gbps I: USB V2.0 Port x 2...

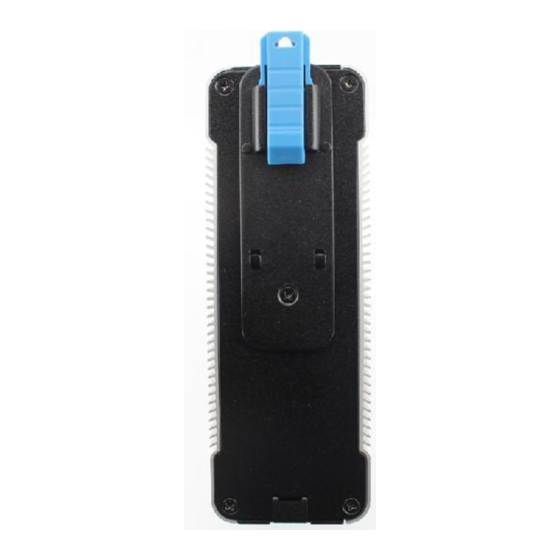

  • Page 13 N: 7-Pin SATA DOM Socket Reserved for SATA DOM O: USB V2.0 Port Reserve for WiFi Dongle DIN Rail Information DIN PC-333x Series supports DIN rail in top hat rail section EN 50022 version. Please see dimension (mm) in picture shown below:...

  • Page 14: System Specifications

    System Specification Dimension & Weight Vortex86DX2 (933 MHz) 152 x 104 x 54 mm/ 760g Main Memory Operating System 1GB DDR2 Windows 7 Home/ Pro. (32-bit DRAM bus, DIN PC-3330 Series) Windows 7 Embedded Windows XP Home/ Pro. 2GB DDR2 Windows XP Embedded (32-bit DRAM bus, DIN PC-3332 Series) Windows Embedded CE...

  • Page 15: Peripherals Connecting

    On function, when power & switch on, the system will be turned on automatically Connecting the Monitor B: VGA out Connection Connect your LCD display Monitor with a VGA cable (It is not included in DIN PC-333x Series console bundles) to the 15-pin D-Sub VGA port...
  • Page 16 Chapter...

  • Page 17: Bios Reconfiguring

    BIOS Reconfiguring AMI BIOS is used in the DIN PC-333x Series. To reconfigure the DIN PC-333x Series, press or hit the <Del> key to enter your BIOS setup main menu as below: Select from the menu, the desired setup for change.

  • Page 18: Install The Driver

    INSTALL THE DRIVER: Under the Windows Series OS, the following drivers need to be installed manually: 1. VGA driver 2. Ethernet driver 3. Wireless USB WiFi Dongle driver (Optional) Note: Please find the mating drivers from EBOX support page VGA DRIVER: Unzip the downloaded file and double click the setting .exe file, then “Next”as below to install: After VGA driver installation completed, you will have to restart the computer.
  • Page 19 ETHERNET DRIVER: Find the yellow question mark of Ethernet in the Device Manager under the control panel/ system. question mark update with 10/ 100M LAN driver, right click and select “Update Driver On 1 Software” choose the right path, then click “Install this driver software anyway” when Windows Security pops out.

  • Page 20: Additional Information

    Additional information: For Windows 7 OS or Windows 7 Embedded OS, the sleep function is hidden if you selected from the start menu. To customize the settings, first go to Start > Control Panel > Power Options, or simply search for "Power Options"...
  • Page 21 Regarding the system installation of Debian7.0/Ubuntu10.04, please follow the steps and suggestions to complete the system installation on the DIN PC-333x Series platform. There we provided is a brief instruction to assist clients, but you can configure it by yourself with system’s asking.
  • Page 22 Then the system would inform you that multiple network interfaces were detected on the DIN PC-333x Series, and the user to choose the one as primary network interface, both of them all could be chosen. And the Ethernet cable must be plugged...
  • Page 23  As installation processing, the system would need you to make decisions about how the partitions your disk for the system? Following the default option is using entire disk, for the beginner. Then choose the “all files in one partition. Other allocation is also available, depends on customers’...
  • Page 24  The next question is about the agreement of the installation of the GRUB boot loader to the MBR area? Answer YES and wait system to complete the installation as last procedure.  When it's completed, the disc tray will eject and inform you, then press continue to restart and be ready to enjoy the new system! The Debian7.0 The Ubuntu10.04...
  • Page 25 3. Kernel and graphic driver installation Install the Kernel Package (Console mode)  For Debian7.0, you can skip this procedure for kernel installation; Because system could work with default kernel version (3.2.0).  Clicking the icon of the terminal from the application. And download the kernel 2.6.32-21 from below link then to store the kernel package.
  • Page 26  Or you can remove the default kernel 2.6.32-??-generic that be arranged as a higher priority than the kernel we installed for the DIN PC-333x platform, with the instruction below through the terminal.  First, check what version be installed as default in the system: # grep –w linux-image-2.6.32 /var/log/dpkg.log ...
  • Page 27 Install the VGA driver (Console mode)  Switch to console mode by pressing key <Ctrl> + <Alt> + <F1>, then copy the VGA driver rdc_drv.so to the driver folder /usr/lib/xor/modules/drivers/, before that, you can download the driver from links below for Debian7 and Ubuntu10.04 individually. The Ubuntu10.04 Xorg Version is 1.7.6 The Debian 7.0 Xorg Version is 1.12.4 VGA Driver (click...
  • Page 28 Set the Log in as “user account” automatically. Disable the power saving mode when system idle, System / Preference / Screensaver Unmarked the option “Active the screensaver when computer is idle”. Now, it is a workable Linux system for your DIN PC-333x Series.
  • Page 29 Chapter...

  • Page 30: Technical Specifications

    Technical Specification DIN PC-3330 Series, 1GB RAM, RS-232 Model Type D-3330-SS D-3330-C1851 D-3330-C2 D-3330-C4 Processor Vortex86DX2 (933MHz) BIOS AMI BIOS Memory Onboard 1GB DDR2 Integrated Graphics Chip/ D-Sub 15-pin Ethernet 10/100 Mbps LAN x 1, 1G LAN x 1 (RJ-45 connector, Built-in PXE diskless boot) USB (2.0) External: 2 ports, Internal: 1 port (space reserved dimension 33 x 20 mm) SD Slot...
  • Page 31 DIN PC-3330 Series, 1GB RAM, RS-422 Model Type D-3330-221C1 D-3330-222 D-3330-222C2 Processor Vortex86DX2 (933MHz) BIOS AMI BIOS Memory Onboard 1GB DDR2 Integrated Graphics Chip/ D-Sub 15-pin Ethernet 10/100 Mbps LAN x 1, 1G LAN x 1 (RJ-45 connector, Built-in PXE diskless boot) USB (2.0) External: 2 ports, Internal: 1 port (space reserved dimension 33 x 20 mm) SD Slot...
  • Page 32 DIN PC-3332 Series, 2GB RAM, RS-232 Model Type D-3332-SS D-3332-C1851 D-3332-C2 D-3332-C4 Processor Vortex86DX2 (933MHz) BIOS AMI BIOS Memory Onboard 2GB DDR2 Integrated Graphics Chip/ D-Sub 15-pin Ethernet 10/100 Mbps LAN x 1, 1G LAN x 1 (RJ-45 connector, Built-in PXE diskless boot) USB (2.0) External: 2 ports, Internal: 1 port (space reserved dimension 33 x 20 mm) SD Slot...
  • Page 33 DIN PC-3332 Series, 2GB RAM, RS-422 Model Type D-3332-221C1 D-3332-222 D-3332-222C2 Processor Vortex86DX2 (933MHz) BIOS AMI BIOS Memory Onboard 2GB DDR2 Integrated Graphics Chip/ D-Sub 15-pin Ethernet 10/100 Mbps LAN x 1, 1G LAN x 1 (RJ-45 connector, Built-in PXE diskless boot) USB (2.0) External: 2 ports, Internal: 1 port (space reserved dimension 33 x 20 mm) SD Slot...
  • Page 34 DIN PC-3330 Series Listing: D-3330-SS: Standard Version D-3300-C1851: Standard Version with RS-232 port x 1 & RS-485 port x 1 D-3330-C2: Standard Version with RS-232 port x 2 D-3330-C4: Standard Version with RS-232 port x 4 D-3330-851221: Standard version with RS-485 port x 1 & RS-422 port x 1 D-3330-851221C2: Standard version with RS-485 port x 1, RS-422 port x 1 &...
  • Page 35 Chapter...

  • Page 36: Onboard Connectors Summary

    Onboard Connectors Summary Summary Table for CPU Board Description Type of Connections Pin nbrs. SD Card Slot (Inside) SD Card 9-pin SATA (Inside) SATA Socket 7-pin USB3 (Inside) USB Connector 4-pin USB1 USB Connector 4-pin USB2 USB Connector 4-pin GPIO P8 Box Header 5x2 2.0mm 9-pin VGA port...

  • Page 37: Pin Assignments

    Pin Assignment J15: 3-Pin Terminal Block Header Pin # Signal Name +8 ~ +15V J5: USB V2.0 – 4-Pin USB Type Connector (Internal) Pin # Signal Name USB2- USB2+ J8: VGA – 15pin D-Sub Connector Pin # Signal Name Pin # Signal Name Pin # Signal Name...
  • Page 38 J11 : COM 1 & COM 2 - 9pin D-Sub Connector (RS-232/ RS-422/ RS-485) Pin # Signal Name Pin # Signal Name DCD/ 422TX-/ RS485- RXD/ 422TX+/ RS485+ TXD/ 422RX+ DTR/ 422RX- J13 : COM 5 & COM 6 - 9pin D-Sub Connector (RS-232) Pin # Signal Name Pin #...
  • Page 39 Chapter...

  • Page 40: Taking Care Of Your Din Pc

    When this happens, relocate the DIN PC-333x Series by a suitable distance away from the set. Do not drop the DIN PC-333x Series from the working table nor place heavy objects on top of it.
  • Page 41 Using Cables for Connection To avoid the problem, use only the specified interface cables in your accessory bag. The supplier will not be responsible for the connection arising from the other unspecified peripheral equipment. Do not use cut or damaged cables for connection. Cleaning Your DIN PC Clean DIN PC with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution.

  • Page 42: Troubleshooting

    Troubleshooting Your DIN PC A. DIN PC does not start Make sure the DIN PC-333x Series is properly secured and plugged into a power source. Make sure the power indicator shows the power is on. See section 2 for more information about “DIN PC-333x Series Overview”.
  • Page 43 Follow the steps as written in item B. BIOS error message. If you have just connected DIN PC-333x Series to a CD/ DVD or USB Drivers, remove these peripherals. And restart to confirm that the Windows operating system starts properly. If DIN PC- 333x Series continues to display the message ”Operating system not found,”...
  • Page 44 Chapter...

  • Page 45: Terms And Condition

    Terms and Conditions Warranty The warranty terms for DIN PC-333x Series are twelve (12) months from the shipped month. During the warranty period, DMP Electronics will repair/ replace the product covered under this limited warranty. Service and Support DMP Electronics Inc. provides the technical support for hardware problems with your system throughout the warranty period.
