  • Page 1 EBOX-3300MX / 3310MX series User’s Guide...
  • Page 2 ©Copyright 2011 DMP Electronics Inc. Special Notice to Users DMP Electronics Inc. provides no warranty with regard to this manual, the software, or other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to this manual, the software, or such other information.
  • Page 3 Trademarks Acknowledgment The EBOX-3300MX/ 3310MX series is the registered trademarks of DMP Electronics Inc. Microsoft®, Windows®, and AMI are registered trademarks of Microsoft Corporation and American Megatrends Inc. in the United States and/or other countries respectively. Other brand names, product names or trade names appearing in this document are the properties and registered trademarks of their respective owners.

  • Page 4: Safety Information

    Safety Information WARNING Do not expose EBOX-3300MX/ 3310MX series to rain or moisture, in order to prevent shock and fire hazard. Never install EBOX-3300MX/ 3310MX series in wet locations. Do not open the cabinet to avoid electrical shock. Refer to your nearest dealer for qualified personnel servicing.
  • Page 5 Regulatory FCC Class A Note This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 6: Product Description

    Purchase Agreement Purpose: In accordance to the general commercial conduct of Trust and Fair Trade, herewith below is the agreement for the protection for both parties, DMP and Users in pursuant of trading. Product Description: With this product, herewith also known as EBOX-3300MX/ 3310MX series which is a simplified & an economical design of an embedded device for Special Purpose Personal Computing.

  • Page 7: Table Of Contents

    Contents Chapter 1 02 Unpacking your EBOX Mini PC Chapter 2 05 EBOX-3300MX/ 3310MX series Overview 06 System Specifications 07 Peripherals Connecting Chapter 3 11 BIOS Reconfiguring Debian / Ubuntu Linux Installation Guide 15 Additional information for EBOX-33xxMX TV-out supported models 16 Additional information for EBOX-3310MX-L3U4 &...
  • Page 8 Chapter...

  • Page 9: Unpacking Your Ebox Mini Pc

    Unpacking Your EBOX Mini PC Congratulation! You have just acquired EBOX-3300MX/ 3310MX series, please check the following items. Packing List: Item No. Description Q’ty EBOX-3300MX/ 3310MX series VESA PC Max. 22.5 watts External Power Adaptor, Vin: 100~240VAC 50/60Hz, Volt: +15VDC @ 1.5A Max. Drivers CD Note: The accessories are subjected to change without immediate notice.
  • Page 10 Preface EBOX-3300MX/ 3310MX series: VESA PC The EBOX-3300MX/ 3310MX series is a revolutionary device which is especially designed for limited physical space and temperature concerns. No matter you are in a jammed office, a crowded place, or public transportation, it can be easily integrated with a VESA LCD to bring you EBOX-3300MX/ 3310MX series access at any time.
  • Page 11 Chapter...

  • Page 12: Ebox-3300Mx/ 3310Mx Series Overview

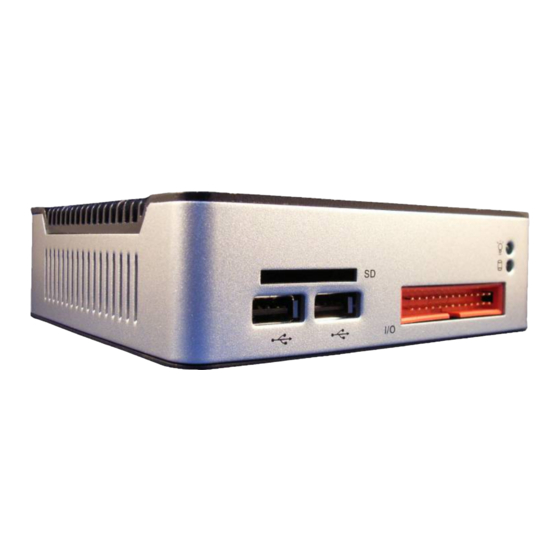

    EBOX-3300MX/ 3310MX series Overview Front Panel Power LED The power LED lights up when system is turn on. HDD LED LED flashes when the system is accessing Hard Drive. Reset Button For system reset or turn on. Audio Line Out Audio output to speaker.

  • Page 13: System Specifications

    Vortex86MX+ (EBOX-3310MX series) Windows XP Embedded Windows Embedded CE Main Memory 512MB DDR2 Supported Linux Distribution list: ( 16-bit DRAM bus, EBOX-3300MX series) 1. Debian 4.0 1GB DDR2 2. Debian 5.0 ( 32-bit DRAM bus, EBOX-3310MX series) 3. Ubuntu 8.04 BIOS 4.

  • Page 14: Peripherals Connecting

    Peripherals Connecting the Power Adaptor DC Power Jack To use EBOX-3300MX/ 3310MX series immediately, please attach the supplied adapter for the power source. See the left diagram for visual connection. Connect the DC power jack of the power adaptor to the DC Input of EBOX-3300MX/ 3310MX series.
  • Page 15 Peripherals Connecting the USB provide Three external USB ports with (Two at the front, One at the EBOX-3300MX/ 3310MX series rear) and one internal USB port. SD Slot For booting device by SD Card. Microphone/Earphone The EBOX-33xxMX supports Microphone Input and Speaker Output.

  • Page 16: Connecting The Keyboard And Mouse

    Connecting the Keyboard and Mouse PS/2 Keyboard or Mouse (6-pin) This PS/2 Port is shared for connecting Keyboard and/or Mouse by using Split Y-Cable (not included). Connecting Serial port & GPIO port Serial Ports (Optional) The serial port is usually connected to a serial device like modem or terminal devices.
  • Page 17 Chapter...

  • Page 18: Bios Reconfiguring

    BIOS Reconfiguring Take note that AMI BIOS is used in the EBOX-3300MX/ 3310MX series. To reconfigure the EBOX-3300MX/ 3310MX series, press or hit the <Del> key to enter your BIOS setup main menu. Select from the menu, the desired setup for change. Press <Esc>...

  • Page 19: Debian / Ubuntu Linux Installation Guide

    Debian / Ubuntu Linux Installation Guide In the MX platform, with the newer IDE and Ethernet controller, both of the two controllers just start supported from kernel 2.6.28.3. Please refer to the guide to help you complete the installation. How to install Linux on Vortex86MX platform? Preparation: 1.
  • Page 20 D. To unpack the kernel package and update. # dpkg -i xxx.deb # update-initramfs –k 2.6.30-vortex86mx -c # update-grub E. When these three procedures completed, type reboot to reboot system. # reboot Step3: Moving the storage installed Linux, back to VortexMX platform. Step4: Turn on the power to boot.
  • Page 21 For Ubuntu When it start booting, press the Esc key when it boot. Confirm the Grub list first. There should has an option 2.6.30-vortex86mx, and then to boot. For Debian Please press the Esc key to confirm Grub list and press E key to confirm and modify the storage’s codename. Note: The Grub list parameters you can modify in the file /boot/grub/menu.lst.

  • Page 22: Additional Information For Ebox-33Xxmx Tv-Out Supported Models

    Additional information EBOX-33xxMX TV-out supported models: The TV version of EBOX-33xxMX series includes TV-Out and CRT-Out functions as below: EBOX-3300MX-T / 3310MX-T EBOX-3300MX-TM / 3310MX-TM EBOX-3300MX-TH / 3310MX-TH EBOX-3300MX-TC / 3310MX-TC Switch display to TV or CRT Users can press key of keyboard to switch display after power on system directly. Press “C”...

  • Page 23: Additional Information For Ebox-3310Mx-L3U4 & Eb-3310Mx-L3U4Ap

    Additional information EBOX-3310MX-L3U4 & EB-3310MX-L3U4AP: Power LED HDD LED SD Slot Reset Button Microphone/ Earphone USB Ports DC Power Jack RJ-45 LAN Jack RS-232 Power switch Note: 10/100 Mbps RJ-45 LAN x 3, (please refer the above LAN order): LAN 1 from CPU support Built-in PXE diskless boot.
  • Page 24 Chapter...

  • Page 25: Technical Specifications

    Technical Specification Model Type 3300MX 3300MX-M 3300MX-H 3300MX-C 3300MX-C22 3300MX-C85 3300MX-T 3300MX-TM 3300MX-TH 3300MX-TC Processor MSTI PMX-1000/ Vortes86MX+ (933Mhz) Memory Onboard 512MB DDR2/ Onboard 1GB DDR2 (Note 1) Integrated Graphics Chip/ D-Sub 15-pin Integrated Graphics Chip / RCA Jack Ethernet 10/100 Mbps LAN(Rj-45 connector) Built-in PXE diskless boot function External: 3 ports ( 2 in the front) Internal: 1 port (reserve for USB Dongle) Audio...
  • Page 26 Model Type 3300MX-AP 3300MX-MAP 3300MX-HAP 3300MX-CAP 3300MX-C22AP 3300MX-C85AP Processor PMX-1000 / Vortes86MX+ (933Mhz) Memory Onboard 512MB DDR2/ Onboard 1GB DDR2 (Note 1) Integrated Graphics Chip/ D-Sub 15-pin Ethernet 10/100 Mbps LAN (Rj-45 connector) Built-in PXE diskless boot function External: 3 ports ( 2 in the front) Internal: 1 port (reserve for USB Dongle) Audio Mic in and Line out GPIO...
  • Page 27 33xxMX/ AP, 33xxMX-C/ CAP, 33xxMX-T, 33xxMX-TC, 33xxMX-JSK COM ports x 3 how to use: The second COM port use Y cable became COM ports x 2 + COM1 port = total COM ports x 3 COM2 Connector defines as COM3 and COM4, to use two COM ports: 33xxMX = RS-232 x 3 (8pin) COM 1 = Full 9pin RS-232 COM 2 Connector (COM 3, COM 4) = RS232 x 2 (only the TX &...
  • Page 28 Chapter...

  • Page 29: Onboard Connectors Summary

    Onboard Connectors Summary Summary Table for CPU Board Description Type of Connections Pin nbrs. SODIMM-SOC-200P-1.8V SODIMM socket 200 Pin 200-pin SATA SATA socket 7-pin USB (Front) USB Connector 8-pin USB (Front) USB Connector 8-pin USB (Back) USB Connector 8-pin USB (Inside) USB Connector 8-pin Ethernet LAN...

  • Page 30: Pin Assignments

    Pin Assignments J12: PS/2 Keyboard or Mouse – 6-pin Mini-Din Connector Pin # Signal Name KBCLK PMCLK KBDAT PMDAT SB5V J17: Power SW – Push Button Switch Pin # Status J16: DC-IN (15V) – 2-pin Jack Pin # Signal Name +15V Input J7: USB (90 ) –...
  • Page 31 J10: VGA – 15-pin D-Sub Connector Pin # Signal Name Pin # Signal Name Pin # Signal Name HYSYNC VSYNC J5, J6, J8: USB (USB2): For connection to external USB device –4-pin USB Type 1 Connector (H) Signal Pin # Name USB2- USB2+...
  • Page 32 GPIO Pin # Signal Name Pin# Signal Name GP10 GP00 GP11 GP01 GP12 GP02 GP13 GP03 GP14 GP04 GP15 GP05 GP16 GP06 GP17 GP07 GP34 GP30 GP35 GP31 GP36 GP32 GP37 GP33...
  • Page 33 Chapter...

  • Page 34: Taking Care Your Ebox Vesa Pc

    Taking Care of your EBOX This section gives you some guidelines on using EBOX-3300MX/ 3310MX series – Safe using, Storing and Handling. Storing Do not place EBOX-3300MX/ 3310MX series in a location that is subject to: Heating sources, such as stove, oven, heater, radiator or air duct Direct contact from sunlight Rain or moisture area Excessive dust accumulation area...

  • Page 35: Cleaning Your Ebox Vesa Pc

    Using Cables for Connection To avoid problem, use only the specified interface cables in your accessory bag. The supplier will not be responsible for the connection arising from the other unspecified peripheral equipment. Do not use cut or damaged cables for connection. Cleaning Your VESA PC Clean the VESA PC with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution.

  • Page 36: Troubleshooting

    Troubleshooting This section describes the techniques of resolving some basic problems that you encounter when using EBOX-3300MX/ 3310MX series. For more troubleshooting guidelines, please contact your nearest dealer for technical support. Troubleshooting Your VESA PC A. VESA PC does not start Make sure the EBOX-3300MX/ 3310MX series is properly secured and plugged into a power source before it is turned on.
  • Page 37 (BIOS Setup menu “Exit”) C. “Operating System Not Found” – A message indicating that “Operating system not found” appear when my VESA PC starts (Windows won’t start) Enter your BIOS setup main menu by pressing <DEL> key, be sure that the C: drive is enable. If Windows still does not start, follow these steps to initialize the BIOS: Turn off the EBOX-3300MX/ 3310MX series.
  • Page 38 Chapter...

  • Page 39: Terms And Condition

    6. A copy of the invoice for the RMA product(s) will also be shipped to Purchaser. 7. The freight of return to DMP Electronics Inc. is charged to Purchaser account and accompanied by an RMA number. Any Returns with freight collect will be refused and returned to you. After repairing, the cost of freight will be paid by Seller.

This manual is also suitable for:
