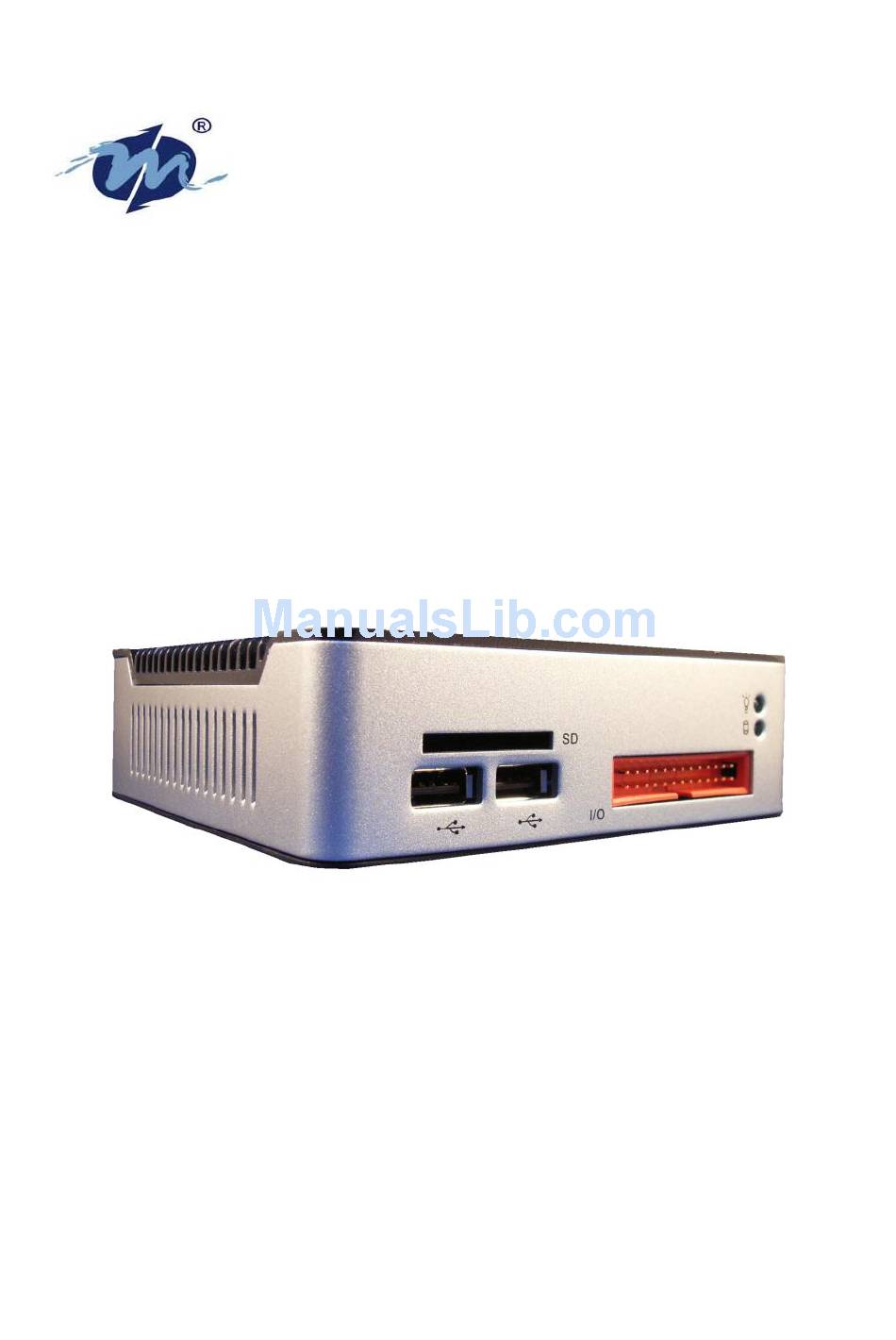

- Page 1 DM&P Group eBox-3300MX User’s Manual...
- Page 2 OTICE TO SERS DMP Electronics Inc. provides no warranty with regard to this manual, the software, or other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to this manual, the software, or such other information.
- Page 3 WNER ECORD The serial number of this product is located at the rear panel of your eBox-3300MX series. Refer to the model and serial number when you contact your nearest dealer or DMP offices for services. The Model No. of this product is also indicated on the product label of your gift box as: eBox-3300MX, and eBox-3300MX-JSK.
- Page 4 AFETY NFORMATION WARNING Do not expose eBox-3300MX to rain or moisture, in order to prevent shock and fire hazard. Never install eBox-3300MX in wet locations. Do not open the cabinet to avoid electrical shock. Refer to your nearest dealer for qualified personnel servicing.
- Page 5 eBox-3300MX...
- Page 6 RODUCT ESCRIPTION With this product, herewith also known as eBox-3300MX, which is a simplified & an economical design of an embedded eBox-3300MX for Special Purpose Personal Computing. The basic specification of this product comprises of the x86 technology design, and with onboard 512MB System memory, VGA display, USB, PS/2 Keyboard, Mouse, LAN, and Audio Interfaces.
-
Page 7: Table Of Contents
OUR E P ................1 ACKING C ..............1 HECK EFORE 1 – P ..................2 REFACE 2 – eBox-3300MX O .............. 3 VERVIEW 3 – E CPU B ..............4 MBEDDED OARD S ..............4 YSTEM PECIFICATION 4 –... - Page 8 S CPU B ..........15 UMMARY ABLE FOR OARD F eBox-3300MX ....15 RONT ONNECTORS UTLINE FOR R eBox-3300MX ...... 16 ONNECTORS UTLINE FOR P ..............17 SSIGNMENTS ........... 19 ARRANTY ERMS AND ONDITION ................19 ARRANTY ..............
-
Page 9: Unpacking Your E Box
NPACKING MBED You have just acquired eBox-3300MX, the world’s smallest Congratulation! and compact PC (See Figure 1), please check the following items: eBox-3300MX ACKING IST FOR SERIES Q’ty Item Description eBox-3300MX VESA PC Max. 10-watts External Power Adaptor, Vin: 100~240VAC 50/60Hz, 0.45A / Vout: +5.0VDC @ 2.0A max. -
Page 10: Preface
So, if you are looking for a device that is able to provide you with more mobility & space but at the same time uses less power consumption, then eBox-3300MX will be surely meet your need. -
Page 11: Ebox-3300Mx Overview
For connection to devices with USB interface (HDD, CD/DVD- ROM, Memory Stick, etc.) Back Panel DC Power Jack PS/2 Keyboard or Mouse (6- pin) VGA Power switch USB Port RJ-45 LAN Jack Wireless Antenna connector (optional) RS-232RS-422 RS485(optional) eBox-3300MX... -
Page 12: Embedded Cpu Board System Specification
Resolution up to 1,280x1,024 High Colors 3300MX-JSK) 5. 24 bit GPIO (available for eBox- Audio 3300MX-JSK) Mic In, Line Out Dimension & Weight 115 x 115 x 35 mm / 505g Operating System Suitable for: Windows XP Windows XP Embedded Windows Embedded CE Linux eBox-3300MX... -
Page 13: Peripherals
ERIPHERALS ONNECTING THE OWER DAPTOR Power Adaptor To use eBox-3300MX immediately, please attach the supplied AC adapter as a power source. See the left diagram for visual connection. Connect the DC power jack of the power adaptor to the DC Input jack of eBox- 3300MX. -
Page 14: Connecting The Usb
ERIPHERALS ONNECTING THE PEAKER ARPHONE eBox-3300MX provides USB port (Two in front & one at the back). Front cabinet For connection to Device with Compact Flash Card and Micro- SD (T-flash). Microphone/Earphone The eBox-3300MX supports for Microphone Input and Speaker... -
Page 15: Connecting The Keyboard And Mouse
ONNECTING THE EYBOARD AND OUSE PS/2 Keyboard or Mouse (6-pin) The PS/2 Port is available for connecting Keyboard/Mouse (shared) ONNECTING ERIAL PORT Serial Ports The serial port is usually connected to a serial device like modem (option for eBox-3300MX-JSK BIOS eBox-3300MX... -
Page 16: Bios
ECONFIGURING Take note that AMI BIOS is used in the eBox-3300MX. To reconfigure the eBox- 3300MX, depress or hit the <Del> key to enter your BIOS setup main menu. Select from the menu, the desired setup for change. Press <Esc> to go back to main menu. - Page 17 Standard Version with SATA and 3 x RS-232 ports eBox-3300MX-M: Standard Version eBox-3300MX-H: Standard Version with SATA support eBox-3300MX-C: Standard Version with 3 x RS-232 ports eBox-3300MX-C22: Standard Version with 2 x RS-232 ports, and 1x RS-422 port eBox-3300MX...
- Page 18 Standard Version with 2 x RS-232 ports, and 1x RS-485 port eBox-3300MX-G: GPIO Version eBox-3300MX-GC22: GPIO Version with 2 x RS-232, and 1 x RS-422 port eBox-3300MX-GC85: GPIO Version with 2 x RS-232, and 1 x RS-485 port eBox-3300MX-JSK: GPIO Version with 3 x RS-232 ports...
-
Page 19: Technical Specifications 7 - Taking Care Your Vesa Pc
-3300MX AKING ARE E This section gives you guidelines on using eBox-3300MX – Safe using, Storing and Handling. TORING Do not place eBox-3300MX in a location that is subject to: Heating sources, such as stove, oven, heater, radiator or air duct... -
Page 20: Using Cables For Connection
Do not use cut or damaged cables for connection. VESA PC LEANING Clean the eBox-3300MX with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzene, as these may damage the finish of eBox-3300MX. -
Page 21: Troubleshooting
ROUBLESHOOTING A. VESA PC does not start Make sure the eBox-3300MX is properly secured and plugged into a power source before it is turned on. Make sure the power indicator shows the power is on. See section 2 for more information about “eBox-3300MX Overview”. -
Page 22: Operating System Not Found
Press <DEL> to enter BIOS Setup main menu window. Follow the steps as written in item B. BIOS error message. For eBox-3300MX : If you have just connect eBox-3300MX to a CD/DVD or USB Drivers, remove these peripherals.. And restart eBox-3300MX to confirm that the Windows operating system starts properly. -
Page 23: Appendix : Onboard Connectors Summary
COM1 Port Box Header 5x2 2.0mm 10-pin COM2 Port Box Header 5x2 2.0mm 10-pin DC 5V Input DC-JACK 1-pin Power Switch Power Switch 4-pin F eBox-3300MX RONT ONNECTORS UTLINE FOR SD Slot Min In, Line Out PWR, ACT LED eBox-3300MX... -
Page 24: Ebox-3300Mx
R eBox-3300MX ONNECTORS UTLINE FOR DC Power Jack PS/2 KB/Mouse RJ-45 LAN Power Switch Serial Ports (Optional) Wireless ANT (Optional) eBox-3300MX... -
Page 25: Pin Assignments
J17:Power SW – Push Button Switch Pin # Status J16: DC-IN (5V) –3-pin Mini-Din Lock Pin Socket Signal Name Pin # J7: USB (90 )– 4-pin USB Type 1 Connector (Vertical Type) Pin # Signal Name USB0- USB0+ GGND GGND eBox-3300MX... - Page 26 GP10 GP00 GP11 GP01 GP12 GP02 GP13 GP03 GP14 GP04 GP15 GP05 GP16 GP06 GP17 GP07 GP34 GP30 GP35 GP31 GP36 GP32 GP37 GP33 LAN: RJ-45 Connector Pin # Signal Name Pin # Signal Name FTXD+ FTXD- FRXIN+ FRXIN- eBox-3300MX...
- Page 27 J14: COM - 9-pin D-Sub Connector(RS-485/RS422 optional) Pin # Signal Name Pin # Signal Name DCD1/RS-485-1 RXD1/RS485+1 /422TX-1 /422TX+1 TXD1/422RX+1 DTR1/422RX-1 DSR1 RTS1 CTS1 J15: COM - 9-pin D-Sub Connector Signal Signal Pin # Pin # Name Name RXD3 TXD3 TXD4 RXD4 eBox-3300MX...
- Page 28 eBox-3300MX...
- Page 29 The Purchaser must pre-pay shipping for any defective system or parts returned under the warranty. DMP Electronics Inc. shall not be liable for risk of loss or damage during shipment of your returned system or parts if you fail to insure the shipment.
- Page 30 eBox-3300MX...
