4.2 VCR, PC and Component Video Operation

Overview
The VCR mode allows you to view the video playing back the VCR.
S-Video
Connect the S-Video signal cable to the S-Video input connector.
Press the VCR button until S-Video mode is selected.
VCR Playback After pressing the PLAY button of the VCR, pressing the VCR button displays the VCR playback.
The VCR PLAYBACK input can be time-multiplexed video of cameras or real-time video.
Select the QUAD PB MODE to display the time-multiplexed video of cameras and the VCR MODE to display the live video.
When this monitor operates in QUAD PB mode, pressing the camera number button changes the main display to full screen of the selected
camera signal recorded (Full PB Mode).
When this monitor operates in Full PB mode, you have to exit from the PB mode to go to full screen of specific camera.
The correct mode has to be selected to operate correctly.
Live Video - VCR Mode
Time-multiplexed video - PB Mode
To preview the record output, select VCR as a Main Input and set Trigger Mode to Int.
VCR Output The output signal of the VCR Output connector goes to the VCR input. This monitor supports two kinds of the VCR Output mode. The one is the
field-switching output of four cameras and the other is the quadrant output of cameras. The field-switching interval can be set in the setup menu.
Use the Output Mode option to select QUAD or MUX mode.
Spot Output The Spot Output is the auxiliary output. It can be CA, CA, CA3, CA4 or VCR Output. The selection of the SPOT Output is set in the OSD Setup Menu.
PC Mode Connect the supplied 5-pin D-SUB of the video signal cable to the PC video connector on the back of the monitor.
Press the QUAD button until the PC MODE is selected.
Adjust the output resolution of a PC graphic card for the optimal display.
The recommended input resolution of the monitor is 04x768 at 60Hz.
Component
Connect the component video source using the RCA cable (not supplied) from a DVD or other equipments that support the component video output
Mode
to the component video input connectors.
Press the QUAD button until the COMPONENT MODE is selected.

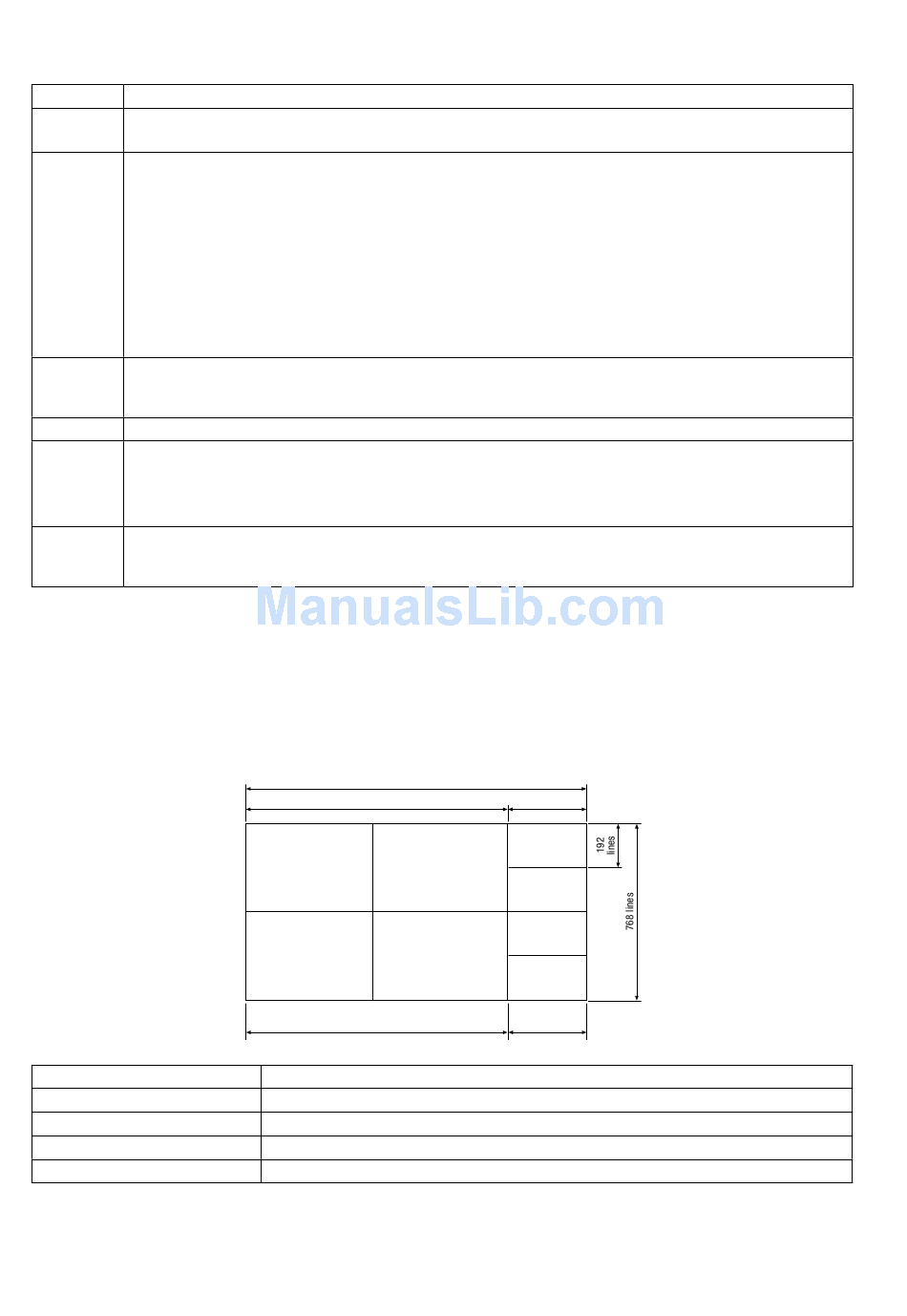

4.3 POP Display

POP ON/OFF
Press the POP button to display the sub window. It can be a live video or motion detected saved image.
Main Display
Full Display
PC Display 1024x768
Component Display
4CH QUAD Display
** If the video signal that contains motion comes from any cameras, the image that had a motion will be displayed below the previous motion detected saved picture.
Up to Four motion detected images can be displayed at a same time on the POP window and the sub window will be rolling vertically after the forth display of image
which contained motion.
The last camera that had a motion is live and others are frozen on the POP window.
366 pixel
04 pixel
Main Display
SUB Display
4 Cameras Live Video
4 Cameras Live Video
4 Cameras Live Video
Motion Detected Saved Video**
40
34 pixel
Sub Display
