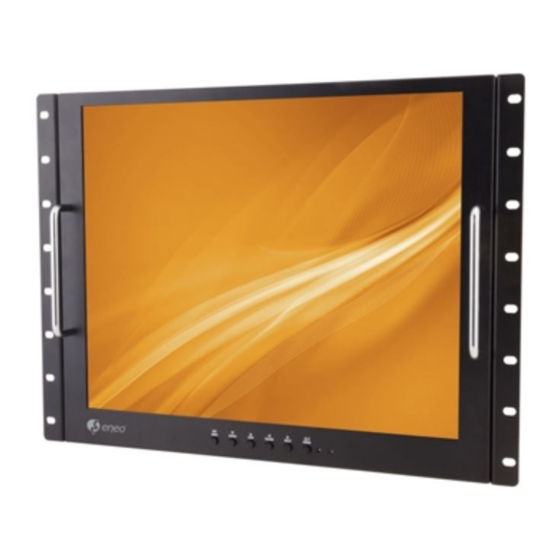

Eneo VMC-19LEDMD User Manual
Professional monitor 19” (48cm) lcd/tft, 1280x1024, 12v, protection glass, hdmi, desktop
Hide thumbs
Also See for VMC-19LEDMD:
- Quick installation manual (9 pages) ,
- User manual (36 pages) ,
- Quick installation manual (8 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
User Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Eneo VMC-19LEDMD
Summary of Contents for Eneo VMC-19LEDMD
-
Page 1: User Manual
User Manual Professional Monitor 19” (48cm) LCD/TFT, 1280x1024, 12V, Protection Glass, HDMI, Desktop VMC-19LEDMD... -
Page 2: Safety Instruction
Installation and User's Guide 1. SAFETY INSTRUCTION Follow this safety instruction to use the monitor properly and prevent the damage. This safety instruction has “Warning” & “Caution” as below Warning - If the user does not follow this instruction, it may cause the serious damage to the user. Caution - If the user does not follow this instruction, it may cause the slight damage to the user or cause some damages to the monitor. - Page 3 Installation and User's Guide Warning Do not install this monitor on the outside For cleaning do not use liquid cleaners. and near water. It may cause damage to Never touch the power plug with wet-hands. the product, electric shock and fire. When lightning and thundering, unplug the Unplug this product from the wall outlet, when monitor from the wall outlet and never touch...
- Page 4 Installation and User's Guide Cautions Install this monitor some distance Place this product on a stable place. from the wall and do not install unless If not, it may fall, causing serious proper ventilation is provided. damages to the monitor and people. The openings must not be blocked by When carrying this monitor, be careful curtain, rug or other similar surface.
- Page 5 Installation and User's Guide Cautions Install this monitor about 50cm far from Do not press the LCD panel with hands or the eyes and an angle of 0~15 degrees the sharpened material hardly. below eyes. Too close installation may cause having weak sight. For cleaning, unplug the monitor from the Do not use the chemical liquid for cleaning.
-
Page 6: Fcc Statement
Installation and User's Guide 2. FCC RF INTERFERENCE STATEMENT NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 7: Table Of Contents
Installation and User's Guide TABLE OF CONTENTS ITEM Page SAFETY INSTRUCTION Warning Caution FCC STATEMENT INSTALLATION Parts How to Install OSD Menu Setting Menu Structure PICTURE Menu SOUND Menu OPTION Menu INPUT SOURCE Audio Volume FEATURES TROUBLESHOOTING... -
Page 8: Installation
Installation and User's Guide 3. INSTALLATION 3-1 Parts LCD Monitor Adapter User Manual Power Cable Battery Remote Controller... -
Page 9: How To Install
Installation and User's Guide 3-2 How to Install KEY BUTTON SHORT KEY FUNCTION OSD Key Function MENU / EXIT Activate the menu function / Exit from the menu SOURCE / Input source menu / Source selection(move down from OSD menu) AUTO / Auto-fit screen with PC-RGB input / move up from OSD menu Decrease the level of volume and move the previous menu... -
Page 10: Mode Select Menu
Installation and User's Guide REMOTE CONTROLLER MODE SELECT MENU VIDEO1 VIDEO2 Select VIDEO1 mode Select VIDEO2 mode HDMI1 VGA (RGB) Select HDMI1 mode Select VGA mode POWER MUTE HDMI2 VIDEO1 VIDEO2 S-VIDEO Select HDMI2 mode AUTO COLOR TEMP HDMI1 HDMI2 S.SET SCAN MODE OSD CONTROL MENU... - Page 11 Installation and User's Guide CONNECTION DC12V HDMI 1 DC adapter input HDMI signal 1 input AUDIO (VIDEO-1) HDMI 2 Stereo audio input for VIDEO-1 HDMI signal 2 input AUDIO (VIDEO-2) Stereo audio input for VIDEO-2 VGA (PC RGB) signal input VIDEO-1 IN / OUT AUDIO (PC) VIDEO-1 signal input / looping out...
-
Page 12: Osd Menu Setting
Installation and User's Guide 4. OSD MENU SETTING 4-1 Menu Structure When user presses the menu key, the first “PICTURE” menu is displayed. Select by "◀" key then three types of menu functions are shown as below. PICTURE : Menu related to PICTURE Function SOUND : Menu related to SOUND Function OPTION : Other OSD Menu Status Control and Firmware Update If press "▲, ▼"... -
Page 13: Picture Mode
Installation and User's Guide 4-2-1 Picture Mode Picture Mode can select 4 modes as Mild, Dynamic, Standard and User as shown in the figure below. Press the "◀, ▶" key to change the mode. Picture Mode Mild Picture Mode Dynamic Picture Mode Standard Picture Mode... - Page 14 Installation and User's Guide 4-2-3 Aspect Ratio Aspect Ratio allows user to select the each aspect ratio as shown in the figure below. (However, activated list is according to the input port and the input resolution.) Aspect Ratio Auto 4 : 3 16 : 9 Zoom1 Zoom2...
-
Page 15: Sound Menu
Installation and User's Guide 4-2-6 Color Range Color Range sets the range of color expressions on the display. (Press the “▶ SELECT” key to select either”0~255”, “16~235”) 4-3 SOUND Menu Standard Sound Mode Balance Auto Volume Surround Sound SOUND PC-RGB: The SOUND Menu can be selected from the following 5 modes by pressing the ▲... - Page 16 Installation and User's Guide 4-3-2 Balance Balance can adjust the left and right volume of audio and set by pressing the "◀, ▶". Balance MENU 4-3-3 Auto Volume Control for input audio when pressing “▶ SELECT” key select On/Off. 4-3-4 Surround Sound When pressing "▲, ▼"...
-
Page 17: Option Menu
Installation and User's Guide 4-4 Option Menu OSD Language English Blending OsdDuration Restore Factory Default Software Update(USB) Key Lock OPTION DPMS PC-RGB: The Option Menu can be selected from the following 6 modes by pressing the ▲ or ▼ key. OSD Language Selectable OSD Menu Language Blending... - Page 18 Installation and User's Guide 4-4-2 Blending OSD Menu Bleding can select 4 modes as Off, Low, Middle, High by pressing the “▶ SELECT” key. 4-4-3 OsdDuration OSD menu Duration can select 4 modes as 5, 10, 15Sec and Off by pressing the “▶ SELECT” key. 4-4-4 Restore Factory Default Restore factory default can be selected by pressing the "▶...
-
Page 19: Input Source
Installation and User's Guide 4-4-6 Key Lock Key lock default can be selected by pressing the "▶ SELECT" key. KEY LOCK ON KEY LOCK OFF 4-4-7 DPMS The function can be activated(ON) or deactivated(OFF) with the button ▶ . 4-5 INPUT SOURCE Input Source can be selected from the following four input modes by using the ▲... -
Page 20: Features
Installation and User's Guide 5. FEATURE General Features VCM-19LEDMD 19.0 inches Screen Size Resolution 1280*1024 pixels Pixel Pitch 0.293*0.293 mm 250cd/m² Brightness Contrast Ratio 1000 : 1 5 : 4 Aspect Ratio Display Viewing Angle(H/V) 178/178 degress Display Color 16.7 million 14 ms Response Time Video System... -
Page 21: Troubleshooting
Installation and User's Guide 6. TROUBLESHOOTING * When the following troubles are occurred, follow the trouble shooting. Before contacting service center. Troubleshooting Troubleshooting Tip 1. Make sure if the power supply is connected property The screen doesn’t 2. Turn on the power. show up 3. - Page 22 VIDEOR E. Hartig GmbH Exclusive distribution through specialised trade channels only. VIDEOR E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 Technical changes reserved Fax +49 (0) 6074 / 888-100 www.videor.com...
