Page 1: Quick Installation Guide

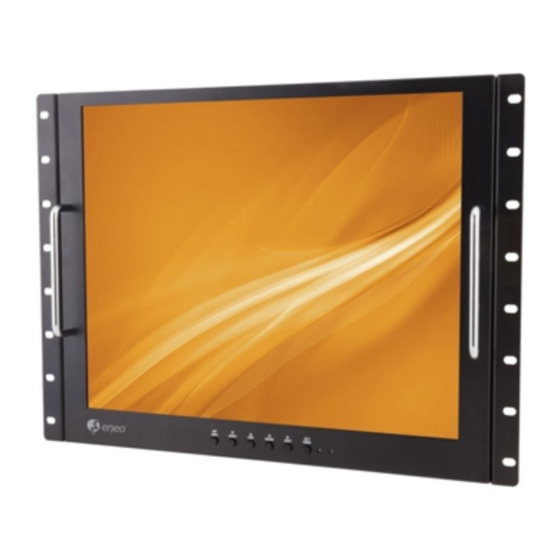

Quick Installation Guide Professional Monitor 19” (48cm) LCD/TFT, 1280x1024, 12V, Protection Glass, HDMI, Desktop VMC-19LEDMD... -
Page 2: Key Button
KEY BUTTON SHORT KEY FUNCTION OSD Key Function Activates and exit the OSD Select input source, and select the OSD menu Move the OSD menu and auto adjustment of RGB source Decrease the level of volume and move the previous menu Increase the level of volume and select rhe OSD menu Turns the power ON or OFF. - Page 3 CONNECTION DC12V VIDEO-1 IN / OUT DC adapter input VIDEO-1 signal input / looping out AUDIO (PC) TRIGGER Stereo audio input for VGA TRIGGER signal input AUDIO (VIDEO-2) HDMI Stereo audio input for VIDEO-2 HDMI signal 1 / 2 input AUDIO (VIDEO-1 / S-VIDEO) Stereo audio input for VIDEO-1 or S-VIDEO DVI signal input...
-
Page 4: Mode Setting
MODE SETTING INPUT VIDEO1 VIDEO2 VIDEO1 Select VIDEO1 mode Select VIDEO2 mode VIDEO2 S-VIDEO RGB PC S-VIDEO Select S-VIDEO mode Select VGA mode √ RGB PC HDMI1 Select DVI mode Select HDMI1 mode HDMI 1 HDMI2 HDMI 2 Select HDMI2 mode ▼/▲:MOVE ▶:ENTER Inputs can be set to VIDEO1, VIDEO2, S-VIDEO, RGB PC, DVI, HDMI1, HDMI2 mode PICTURE MENU... -
Page 5: Screen Menu
SCREEN MENU SCAN MODE : Select the scan mode of screen SCREEN PICTURE PIP : Activates PIP/PBP mode ▶ SCAN MODE ◀ FULL ▶ ◀ SCREEN ▶ PIP INPUT ◀ VIDEO2 ▶ PIP SWAP PIP SIZE ◀ SMALL ▶ SETUP ▶... -
Page 6: Setup Menu
SETUP MENU INPUT : Select an input source for main screen SETUP PICTURE LANGUAGE : Set to different language mode ▶ INPUT ◀ VIDEO1 SOUND MUTE : Turn on/off the sound ▶ LANGUAGE ◀ ENGLISH SCREEN SOUND MUTE ▶ ◀ BUTTON LOCK : Locking the button ▶... -
Page 7: Trigger Menu
CYCLE SETUP MENU CYCLE TIME : Adjust cycle time to displayed on CYCLE SETUP PICTURE the screen CYCLE TIME CYCLE : Selected mode keep change continuously ▶ SCREEN CYCLE ◀ ▶ VIDEO1 ◀ ◀ ▶ VIDEO2 ▶ S-VIDEO ◀ SETUP RGB PC ▶... - Page 8 VIDEOR E. Hartig GmbH Exclusive distribution through specialised trade channels only. VIDEOR E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 Technical changes reserved Fax +49 (0) 6074 / 888-100 www.videor.com...
