Installation and User's Guide
Installation and Operating Instructions

TFT LCD MONITOR

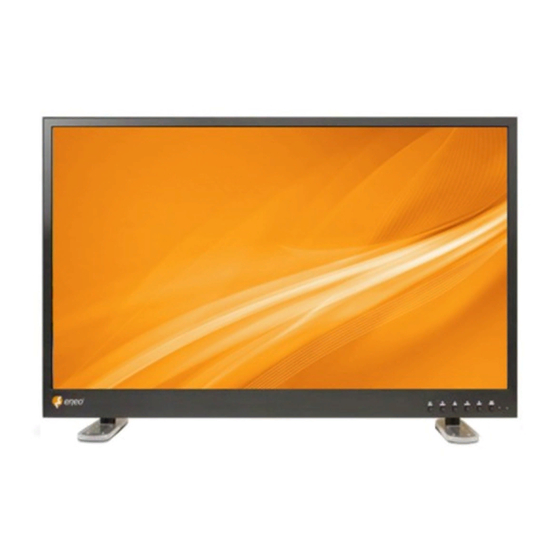

VMC-27LEDM
VMC-32LEDM
VMC-42LED
All contents of this document may change without prior notice, and actual product appearance may differ from that depicted herein

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VMC-27LEDM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eneo VMC-27LEDM

Summary of Contents for Eneo VMC-27LEDM

  • Page 1: Tft Lcd Monitor

    Installation and User's Guide Installation and Operating Instructions TFT LCD MONITOR VMC-27LEDM VMC-32LEDM VMC-42LED All contents of this document may change without prior notice, and actual product appearance may differ from that depicted herein...

  • Page 2: Safety Instruction

    Installation and User's Guide 1. SAFETY INSTRUCTION Follow this safety instruction to use the monitor properly and prevent the damage. This safety instruction has “Warning” & “Caution” as below Warning - If the user does not follow this instruction, it may cause the serious damage to the user. Caution - If the user does not follow this instruction, it may cause the slight damage to the user or cause some damages to the monitor.
  • Page 3 Installation and User's Guide Warning Do not install this monitor on the outside For cleaning do not use liquid cleaners. and near water. It may cause damage to Never touch the power plug with wet-hands. the product, electric shock and fire. When lightning and thundering, unplug the Unplug this product from the wall outlet, when monitor from the wall outlet and never touch...
  • Page 4 Installation and User's Guide Cautions Install this monitor some distance Place this product on a stable place. from the wall and do not install unless If not, it may fall, causing serious proper ventilation is provided. damages to the monitor and people. The openings must not be blocked by When carrying this monitor, be careful curtain, rug or other similar surface.
  • Page 5 Installation and User's Guide Cautions Install this monitor about 50cm far from Do not press the LCD panel with hands or the eyes and an angle of 0~15 degrees the sharpened material hardly. below eyes. Too close installation may cause having weak sight. For cleaning, unplug the monitor from the Do not use the chemical liquid for cleaning.

  • Page 6: Fcc Statement

    Installation and User's Guide 2. FCC RF INTERFERENCE STATEMENT NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 7: Table Of Contents

    Installation and User's Guide TABLE OF CONTENTS 1. SAFETY INSTRUCTION 1-1 Warning 1-2 Caution 2. FCC STATEMENT 3. INSTALLATION 3-1 Parts 3-2 How to Install 4. OSD MENU SETTING 4-1 Mode Setting 4-2 Menu Setting (VIDEO, S-VIDEO, COMPONENT Mode) 4-3 Menu Setting (VGA Mode) 4-4 Menu Setting (DVI, HDMI Mode) 5.

  • Page 8: Installation

    Installation and User's Guide 3. INSTALLATION 3-1 Parts LCD Monitor VGA Cable Trigger Cable Power Cable Battery Remote Controller User Manual...

  • Page 9: How To Install

    Installation and User's Guide 3-2 How to Install KEY BUTTON SHORT KEY FUNCTION OSD Key Function Activates and exit the OSD Select input source, and select the OSD menu Move the OSD menu and auto adjustment of RGB source Decrease the level of volume and move the previous menu Increase the level of volume and select rhe OSD menu Turns the power ON or OFF.
  • Page 10 Installation and User's Guide CONNECTION HDMI AUDIO (VIDEO-1 / S-VIDEO) HDMI signal 1 / 2 input Stereo audio input for VIDEO-1 or S-VIDEO S-VIDEO IN / OUT DVI signal input S-VIDEO signal input / looping out VIDEO-2 IN / OUT VGA (PC RGB) signal input VIDEO-2 signal input / looping out AUDIO (PC)

  • Page 11: Mode Select Menu

    Installation and User's Guide REMOTE CONTROLLER MODE SELECT MENU VIDEO1 VIDEO2 Select VIDEO1 mode Select VIDEO2 mode S-VIDEO VGA (RGB) Select S-VIDEO mode Select VGA mode POWER MUTE HDMI1 VIDEO 1 VIDEO 2 S-VIDEO Select DVI mode Select HDMI1 mode AUTO COLOR TEMP COMPONENT...

  • Page 12: Osd Menu Setting

    Installation and User's Guide 4. OSD MENU SETTING 4-1 Mode Setting INPUT Use SOURCE button and then button to move the source. VIDEO1 VIDEO2 Press the button to select the source. S-VIDEO Press the MENU/EXIT button to exit the INPUT menu. √...

  • Page 13: Menu Setting (Video, S-Video, Component Mode)

    Installation and User's Guide 4-2 Menu Setting (VIDEO, S-VIDEO, COMPONENT Mode) PICTURE Press the MENU/EXIT key to access menu. PICTURE PICTURE Use the & arrow to highlight a selection. CONTRAST BRIGHTNESS SCREEN Press the /SELECT to choose an item. COLOR TINT 4.
  • Page 14 Installation and User's Guide COLOR TINT PICTURE PICTURE PICTURE PICTURE CONTRAST CONTRAST BRIGHTNESS BRIGHTNESS SCREEN SCREEN COLOR COLOR TINT TINT SETUP SHARPNESS SETUP SHARPNESS PEAKING CONTROL PEAKING CONTROL ▶ ▶ COLOR TEMP ◀ MEDIUM COLOR TEMP ◀ MEDIUM SETUP SETUP GREEN GREEN BLUE...
  • Page 15 Installation and User's Guide SCREEN Press the MENU/EXIT key to access menu. SCREEN PICTURE Use the & arrow to highlight a selection. ▶ SCAN MODE ◀ FULL ▶ SCREEN ◀ Press the /SELECT to choose an item. ▶ PIP INPUT ◀...
  • Page 16 Installation and User's Guide SETUP Press the MENU/EXIT key to access menu. SETUP PICTURE Use the & arrow to highlight a selection. ▶ INPUT ◀ VIDEO1 ▶ SCREEN LANGUAGE ◀ ENGLISH Press the /SELECT to choose an item. ▶ SOUND MUTE ◀...

  • Page 17: Sound Mute

    Installation and User's Guide SOUND MUTE BUTTON LOCK SETUP SETUP PICTURE PICTURE ▶ ▶ INPUT ◀ VIDEO1 INPUT ◀ VIDEO1 ▶ ▶ SCREEN LANGUAGE ◀ ENGLISH SCREEN LANGUAGE ◀ ENGLISH ▶ ▶ SOUND MUTE ◀ SOUND MUTE ◀ ▶ ▶ BUTTON LOCK ◀...
  • Page 18 Installation and User's Guide DEFAULT LINE SHIFT SETUP SETUP PICTURE PICTURE ▶ ▶ INPUT ◀ VIDEO1 INPUT ◀ VIDEO1 ▶ ▶ SCREEN LANGUAGE ◀ ENGLISH SCREEN LANGUAGE ◀ ENGLISH ▶ ▶ SOUND MUTE ◀ SOUND MUTE ◀ ▶ ▶ BUTTON LOCK ◀...
  • Page 19 Installation and User's Guide CYCLE SETUP Press the MENU/EXIT key to access menu. CYCLE SETUP PICTURE Use the & arrow to highlight a selection. CYCLE TIME CYCLE ◀ ▶ SCREEN Press the /SELECT to choose an item. VIDEO1 ▶ ◀ ◀...
  • Page 20 Installation and User's Guide TRIGGER Press the MENU/EXIT key to access menu. TRIGGER PICTURE Use the & arrow to highlight a selection. ▶ TRIGGER MODE ◀ TRIGGER INPUT ◀ VIDEO1 ▶ SCREEN Press the /SELECT to choose an item. TRIGGER DWELL 4.

  • Page 21: Menu Setting (Vga Mode)

    Installation and User's Guide 4-3 Menu Setting (VGA Mode) PICTURE Press the MENU/EXIT key to access menu. PICTURE PICTURE Use the & arrow to highlight a selection. CONTRAST BRIGHTNESS SCREEN Press the /SELECT to choose an item. COLOR TINT 4. Use the &...
  • Page 22 Installation and User's Guide COLOR TEMP PICTURE PICTURE CONTRAST BRIGHTNESS SCREEN COLOR TINT SETUP SHARPNESS PEAKING CONTROL ▶ COLOR TEMP ◀ MEDIUM SETUP GREEN BLUE CYCLE MODE SELECT 1080P ▶ ◀ SETUP TRIGGER ▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.* Default setting is MEDIUM and switch to WARM, USER and COOL color temperature options USER - Default setting of RED, GREEN, BLUE is 50% and...
  • Page 23 Installation and User's Guide SCREEN PICTURE ▶ SCAN MODE ◀ FULL ▶ SCREEN ◀ ▶ PIP INPUT ◀ VIDEO2 PIP SWAP ▶ PIP SIZE SMALL ▶ SETUP ◀ ▶ PIP R/T ◀ SETUP CYCLE SETUP TRIGGER ▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.* Default setting is OFF and switch to ON, DW1 and DW2 PIP/PBP mode options ON - PIP INPUT : Select an input source for PIP mode...
  • Page 24 Installation and User's Guide RGB SETUP Press the MENU/EXIT key to access menu. RGB SETUP PICTURE Use the & arrow to highlight a selection. H-POSITION 100% V-POSITION SCREEN Press the /SELECT to choose an item. CLOCK PHASE 4. Use the &...

  • Page 25: Auto Adjust

    Installation and User's Guide CLOCK PHASE RGB SETUP RGB SETUP PICTURE PICTURE H-POSITION H-POSITION 100% 100% V-POSITION V-POSITION SCREEN SCREEN CLOCK CLOCK PHASE PHASE SETUP AUTO ADJUST ▶ SETUP AUTO ADJUST ▶ ▶ ▶ POWER SAVING ◀ POWER SAVING ◀ ▶...
  • Page 26 Installation and User's Guide CYCLE SETUP Press the MENU/EXIT key to access menu. CYCLE SETUP PICTURE Use the & arrow to highlight a selection. CYCLE TIME CYCLE ◀ ▶ SCREEN Press the /SELECT to choose an item. VIDEO1 ▶ ◀ ◀...
  • Page 27 Installation and User's Guide VGA / DVI / HDMI Mode Tables VGA / DVI Mode MODE RESOLUTION VERTICAL FREQUENCY (Hz) 720X400 640X480 60 / 72 75 SVGA 800X600 50 / 60 / 72 / 75 1024X768 50 / 60 / 75 WXGA 1366X768 UXGA...

  • Page 28: Menu Setting (Dvi, Hdmi Mode)

    Installation and User's Guide 4-4 Menu Setting (DVI, HDMI Mode) PICTURE Press the MENU/EXIT key to access menu. PICTURE PICTURE Use the & arrow to highlight a selection. CONTRAST BRIGHTNESS SCREEN Press the /SELECT to choose an item. COLOR TINT 4.
  • Page 29 Installation and User's Guide COLOR TINT PICTURE PICTURE PICTURE PICTURE CONTRAST CONTRAST BRIGHTNESS BRIGHTNESS SCREEN SCREEN COLOR COLOR TINT TINT SETUP SHARPNESS SETUP SHARPNESS PEAKING CONTROL PEAKING CONTROL ▶ ▶ COLOR TEMP ◀ MEDIUM COLOR TEMP ◀ MEDIUM SETUP SETUP GREEN GREEN BLUE...
  • Page 30 Installation and User's Guide SCREEN Press the MENU/EXIT key to access menu. SCREEN PICTURE Use the & arrow to highlight a selection. ▶ SCAN MODE ◀ FULL ▶ SCREEN ◀ Press the /SELECT to choose an item. ▶ PIP INPUT ◀...
  • Page 31 Installation and User's Guide CYCLE SETUP Press the MENU/EXIT key to access menu. CYCLE SETUP PICTURE Use the & arrow to highlight a selection. CYCLE TIME CYCLE ◀ ▶ SCREEN Press the /SELECT to choose an item. VIDEO1 ▶ ◀ ◀...

  • Page 32: Features

    Installation and User's Guide 5. FEATURE VMC-27LEDM VMC-32LEDM VMC-42LED Screen Size 27.0 inches 31.55 inches 42.02 inches Resolution 1920*1080 pixels 1920*1080 pixels 1920*1080 pixels Pixel Pitch 0.311*0.311 mm 0.364*0.364 mm 0.485*0.485 mm Brightness 250 cd/m^2 360 cd/m^2 450 cd/m^2 Contrast Ratio...

  • Page 33: Troubleshooting

    Installation and User's Guide 6. TROUBLESHOOTING * When the following troubles are occurred, follow the trouble shooting. Before contacting a service center. Troubleshooting Troubleshooting Tip 1. Make sure if the power supply is connected property The screen doesn’t 2. Turn on the power. show up 3.
  • Page 34 Installation and User's Guide MEMO...
  • Page 35 Installation and User's Guide MEMO...
  • Page 36 VIDEOR E. Hartig GmbH ® Exclusive distribution through specialised trade channels only. VIDEOR E. Hartig GmbH Carl-Zeiss-Straße 8 · 63322 Rödermark, Germany Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) 6074 / 888-100 www.videor.com...
