Eneo VMC-19LEDMD Quick Installation Manual

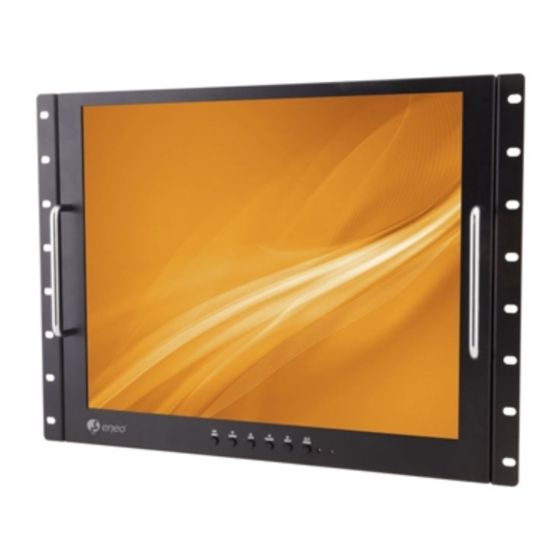

Professional monitor 19" (48cm) lcd/tft, 1280x1024, 12v, protection glass, hdmi, desktop
Hide thumbs
Also See for VMC-19LEDMD:
- Quick installation manual (9 pages) ,
- User manual (36 pages) ,
- User manual (22 pages)
Subscribe to Our Youtube Channel
Related Manuals for Eneo VMC-19LEDMD
Summary of Contents for Eneo VMC-19LEDMD
- Page 1 All manuals and user guides at all-guides.com Quick Installation Guide Professional Monitor 19” (48cm) LCD/TFT, 1280x1024, 12V, Protection Glass, HDMI, Desktop VMC-19LEDMD...
-
Page 2: Key Button
All manuals and user guides at all-guides.com KEY BUTTON SHORT KEY FUNCTION OSD Key Function Activates and exit the OSD Select input source, and select the OSD menu Move the OSD menu and auto adjustment of RGB source Decrease the level of volume and move the previous menu Increase the level of volume and select rhe OSD menu Turns the power ON or OFF. - Page 3 All manuals and user guides at all-guides.com CONNECTION DC12V VIDEO-1 IN / OUT DC adapter input VIDEO-1 signal input / looping out AUDIO (PC) TRIGGER Stereo audio input for VGA TRIGGER signal input AUDIO (VIDEO-2) HDMI Stereo audio input for VIDEO-2 HDMI signal 1 / 2 input AUDIO (VIDEO-1 / S-VIDEO) Stereo audio input for VIDEO-1 or S-VIDEO...
-
Page 4: Mode Setting
All manuals and user guides at all-guides.com MODE SETTING INPUT VIDEO1 VIDEO2 VIDEO1 Select VIDEO1 mode Select VIDEO2 mode VIDEO2 S-VIDEO RGB PC S-VIDEO Select S-VIDEO mode Select VGA mode √ RGB PC HDMI1 Select DVI mode Select HDMI1 mode HDMI 1 HDMI2 HDMI 2... -
Page 5: Screen Menu
All manuals and user guides at all-guides.com SCREEN MENU SCAN MODE : Select the scan mode of screen SCREEN PICTURE PIP : Activates PIP/PBP mode ▶ SCAN MODE ◀ FULL ▶ ◀ SCREEN PIP INPUT ◀ VIDEO2 ▶ ▶ PIP SWAP ▶... -
Page 6: Setup Menu
All manuals and user guides at all-guides.com SETUP MENU INPUT : Select an input source for main screen SETUP PICTURE LANGUAGE : Set to different language mode ▶ INPUT ◀ VIDEO1 SOUND MUTE : Turn on/off the sound ▶ LANGUAGE ◀... -
Page 7: Trigger Menu
All manuals and user guides at all-guides.com CYCLE SETUP MENU CYCLE TIME : Adjust cycle time to displayed on CYCLE SETUP PICTURE the screen CYCLE TIME CYCLE : Selected mode keep change continuously ▶ SCREEN CYCLE ◀ ▶ VIDEO1 ◀ ▶... - Page 8 All manuals and user guides at all-guides.com eneo® is a registered trademark of VIDEOR E. Hartig GmbH Exclusive distribution through specialised trade channels only. VIDEOR E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 Technical changes reserved Fax +49 (0) 6074 / 888-100 www.videor.com...
