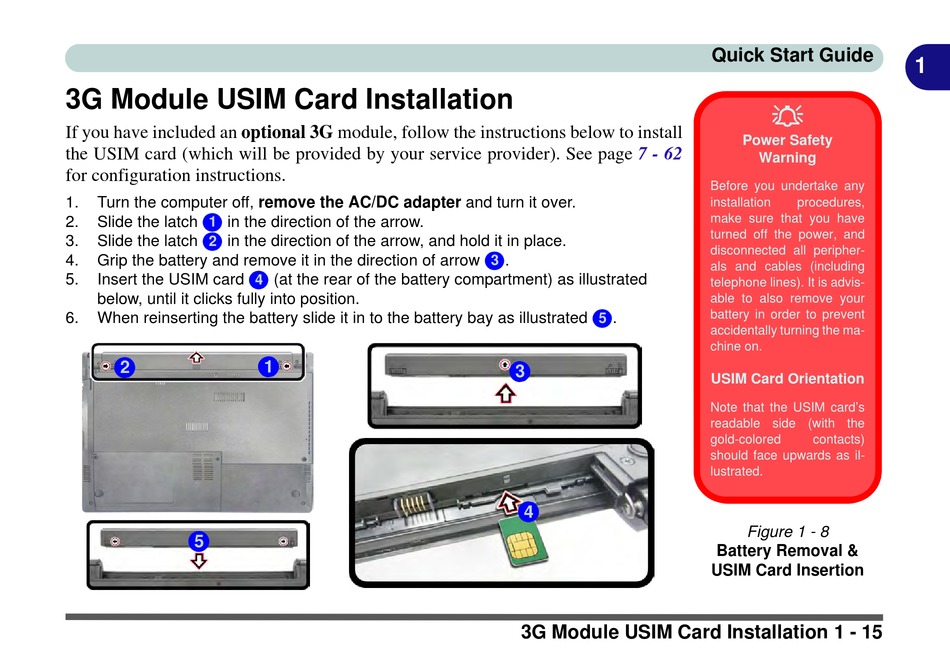

3G Module USIM Card Installation

If you have included an optional 3G module, follow the instructions below to install
the USIM card (which will be provided by your service provider). See page
for configuration instructions.
1. Turn the computer off, remove the AC/DC adapter and turn it over.
2. Slide the latch in the direction of the arrow.
1
3. Slide the latch in the direction of the arrow, and hold it in place.
2
4. Grip the battery and remove it in the direction of arrow
5. Insert the USIM card
below, until it clicks fully into position.
6. When reinserting the battery slide it in to the battery bay as illustrated
2
5
(at the rear of the battery compartment) as illustrated
4
1
7 - 62
.
3
.
5
3
4
3G Module USIM Card Installation 1 - 15
Quick Start Guide

Power Safety
Warning
Before you undertake any
installation procedures,
make sure that you have
turned off the power, and
disconnected all peripher-
als and cables (including
telephone lines). It is advis-
able to also remove your
battery in order to prevent
accidentally turning the ma-
chine on.
USIM Card Orientation
Note that the USIM card's
readable side (with the
gold-colored contacts)
should face upwards as il-
lustrated.
Figure 1 - 8
Battery Removal &
USIM Card Insertion
1
