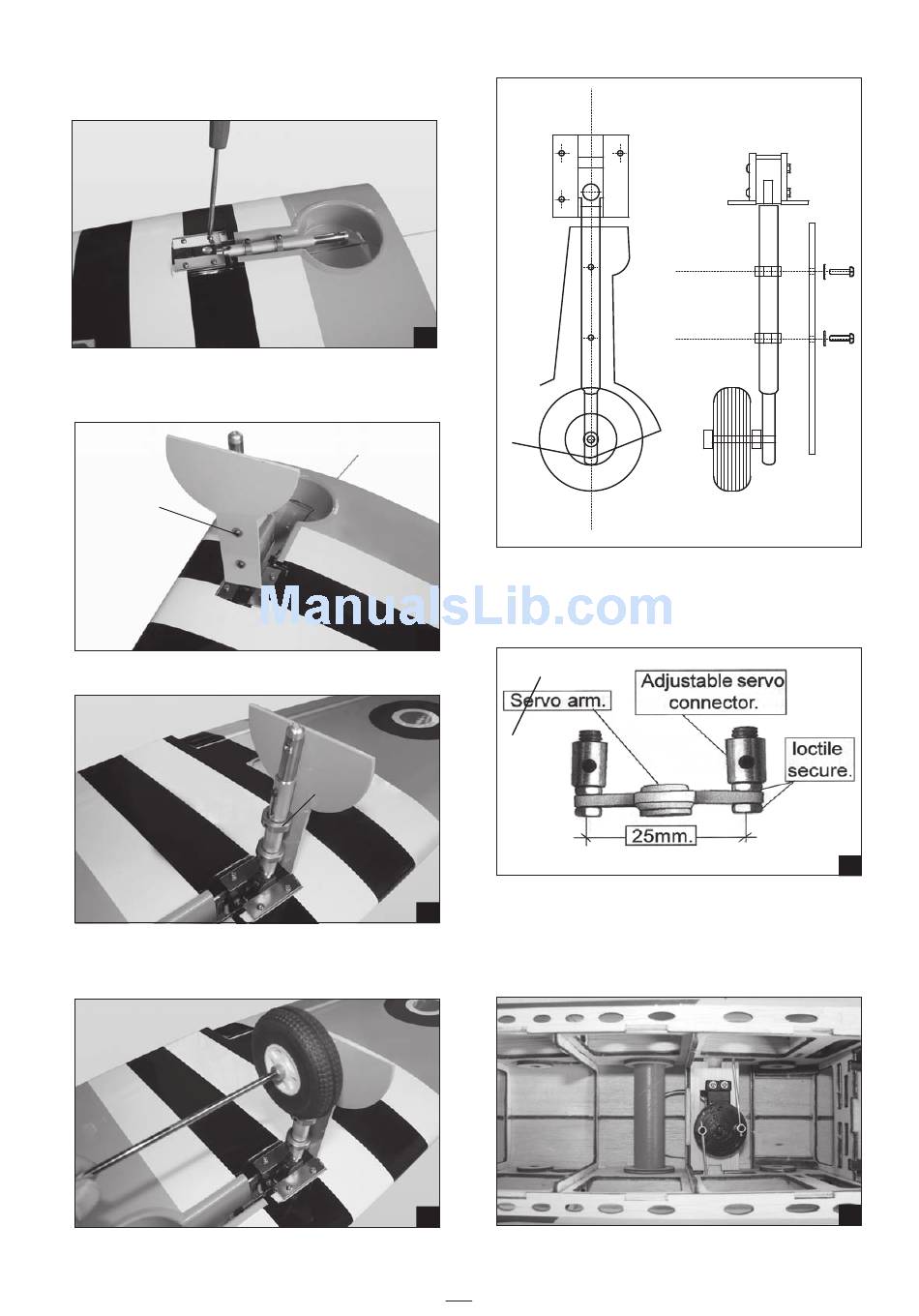

5. Install and secure the retract gear into the wing.
6. Secure the wooden plate.
Machine screw
7. Secure the wheel.
14
15
Aluminum collar
16
17
5
8. Install the adjustable servo connector to the
servo arm of the servo retract gear.
9. Slide both wing to the fuselage, attach both
metal pushrod to the servo arm of the servo
retract gear.
18
19
