Phoenix Model Spitfire Instruction Manual page 11

To muffler
To vent Tube

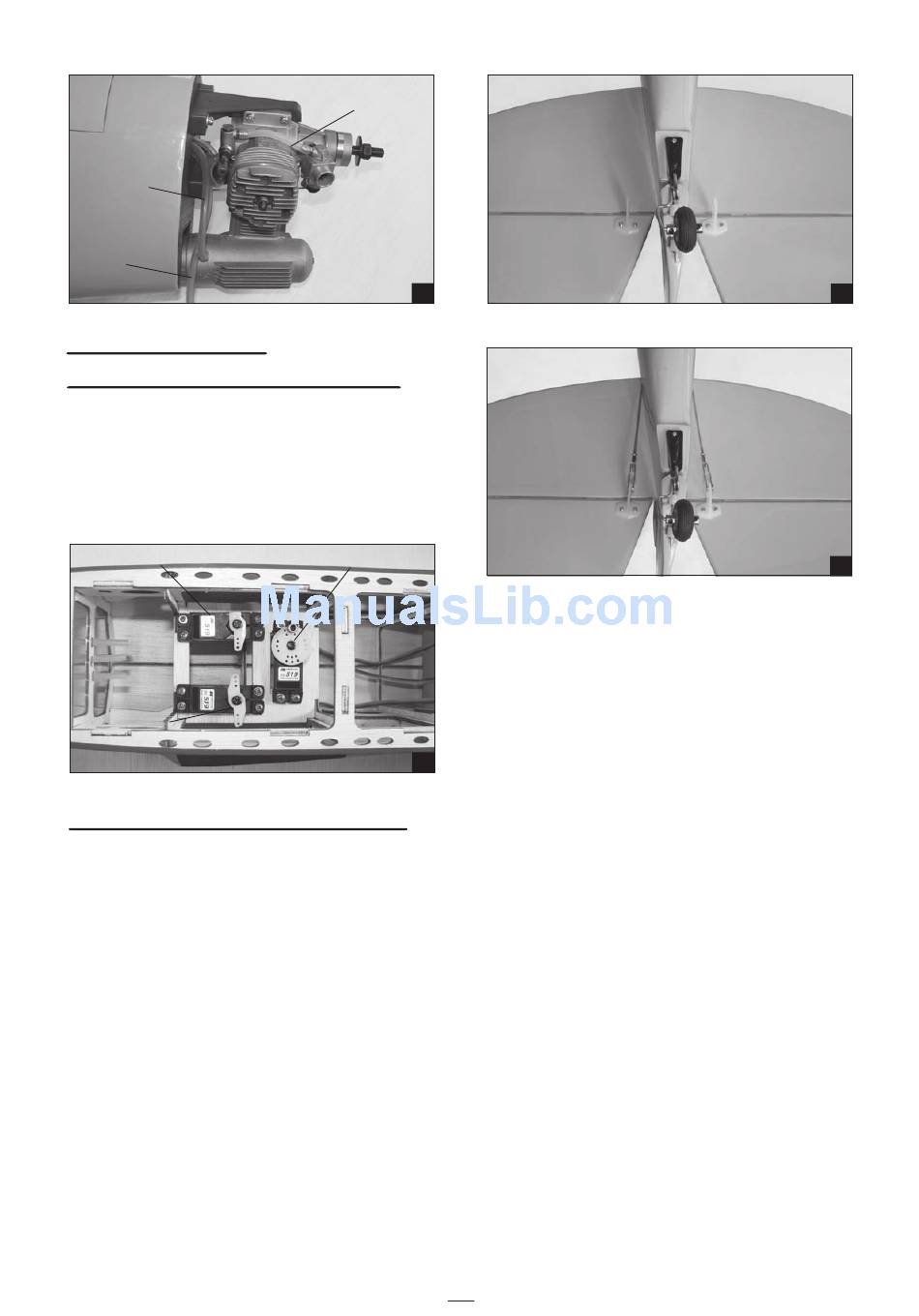

SERVO INSTALLATION
INSTALLING THE FUSELAGE SERVOS
1. Install the rubber grommets and brass collets
into the elevator, rudder and throttle servos.
Test fit the servos into the servo tray. Trim the
tray if necessary to fit your servos
2. Mount the servos to the tray using the mounting
screws provided with your radio system.
Elevator servo
Rudder servo
INSTALLING THE ELEVATOR PUSHROD
1. Locate the pushrod exit slot on the right side
and left side of the fuselage. It is located
slightly ahead and below the horizontal
stabilizer.
2. Carefully cut away the covering material from
the slot.
3. Working from inside the fuselage, slide the
threaded end of the pushrod until it reaches the
exit slot. Carefully reach in with a small screw
driver and guide the pushrod out of the exit slot.
4. Install the clevis into the two elevator pushrod.
Make sure 6mm of thread shows inside the clevis.
5. The control horn should be mounted on the
bottom, left side and right side of the elevator at
the leading edge, in line with the elevator pushrod.
6. Drill two 3mm holes through the elevator using
the control horn as a guide and screw the
control horn in place.
7. Attach clevis to the hole in the control horn.
Install a silicone tube on the clevis.
To carburator
36
Throttle servo
37
10
8. Connect the two elevator pushrod using the
metal domino.
9. Locate one nylon servo arm, and using wire
cutters, remove all but one of the arms. Using a
2mm drill bit, enlarge the third hole out from the
center to accommodate the elevator pushrod
wire.
10. Plug the elevator servo into the receiver and
center the servo. Install the servo arm onto the
servo. The servo arm should be perpendicular
to the servo and point toward the middle of the
fuselage.
11. Be sure both elevator halves are flat. Slightly
adjust the wire joiner if necessary. Center both
elevator halves and hold them in place using a
couple of pieces of masking tape.
12. With the elevator halves and elevator servo
centered, carefully place a mark on the elevator
pushrod wire where it crosses the hole in the
servo arm.
13. Using pliers, carefully make a 90 degree bend
up at the mark made. Cut off the excess wire,
leaving about 8mm beyond the bend.
14. Insert the 90 degree bend up through the hole
in the servo arm, install one nylon snap keeper
over the wire to secure it to the arm. Install the
servo arm retaining screw and remove the
masking tape the elevator halves.
38
39
