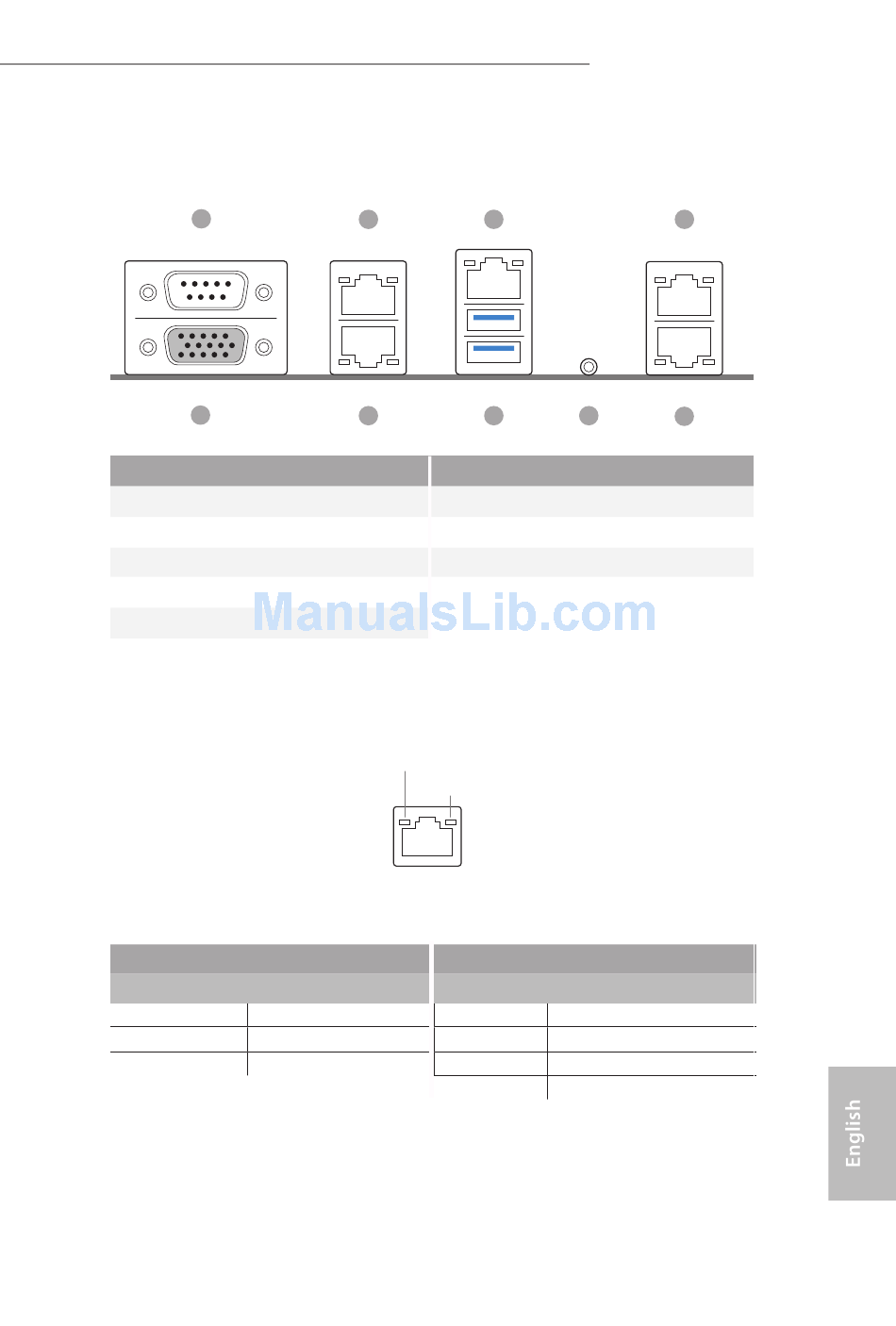

1.6 I/O Panel

1
2
No. Description
1 Serial Port (COM1)
2 VGA Port (VGA1)
3 GLAN RJ-45 Port (LAN2)*
4 GLAN RJ-45 Port (LAN1)*
5 LAN RJ-45 Port (IPMI_LAN)*
LAN Port LED Indications
*here are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
LAN (LAN1, LAN2, LAN3, LAN4) / Dedicated IPMI LAN Port LED Indications
Activity / Link LED
Status Description
Of No Link
Blinking Yellow Data Activity
On Link
3 5
4 6
No. Description
6 USB 3.0 Ports (USB3_1_2)
7 UID Switch (UID)
8 GLAN RJ-45 Port (LAN4)*
9 GLAN RJ-45 Port (LAN3)*
ACT/LINK LED
SPEED LED
LAN Port
Speed LED
Status
Of
Of
Yellow
Green
EP2C612D16T-4L
8
7
9
Description
No Link
10M bps connection
100M bps connection
1G bps connection
11
