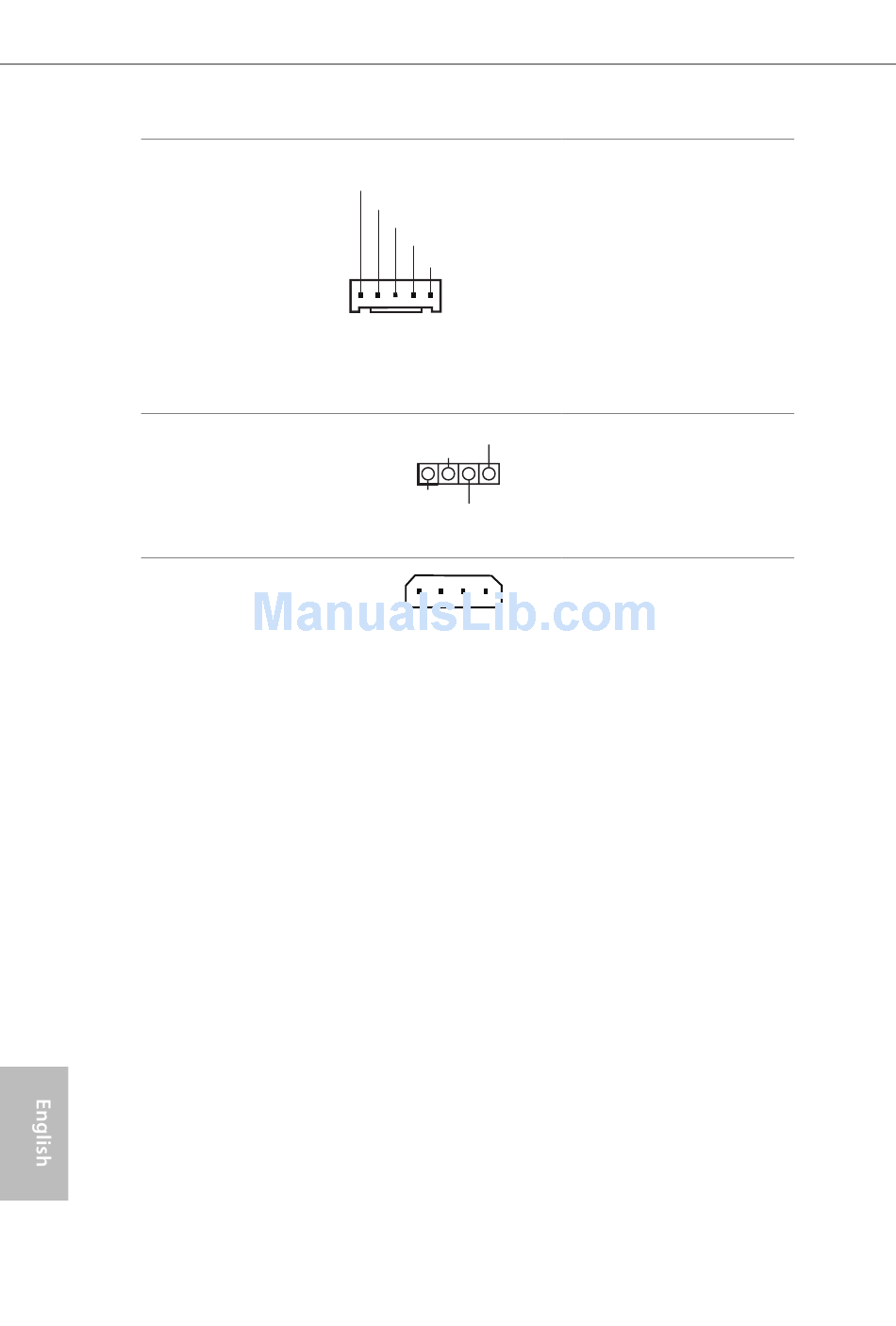

Baseboard Management
Controller SMBus Headers
(5-pin BMC_SMB1)
(see p.6, No. 41)
(5-pin BMC_SMB3)
(see p.6, No. 43)
(5-pin BMC_SMB2)
(see p.6, No. 44)
Front LAN LED
Connector
(LED_LAN3_4)
(see p.6, No. 47)
PCIE Power Connector
(4-pin PCIE_PWR1)
(see p.6, No. 54)
32
BMC_SMBDATA
GND
BMC_SMBCLK
Power
BMC_SMB_PRESENT_1_N
LAN4_LINK
LED_PWR
1
LAN3_LINK
LED_PWR
hese headers are used for the
SM BUS devices..
his 4-pin connector is used
for the front LAN status
indicator.
Please connect this connector
with a hard disk power
connector when two graphics
cards are installed on this
motherboard.
