ASROCK EP2C612D16T-4L User Manual page 34

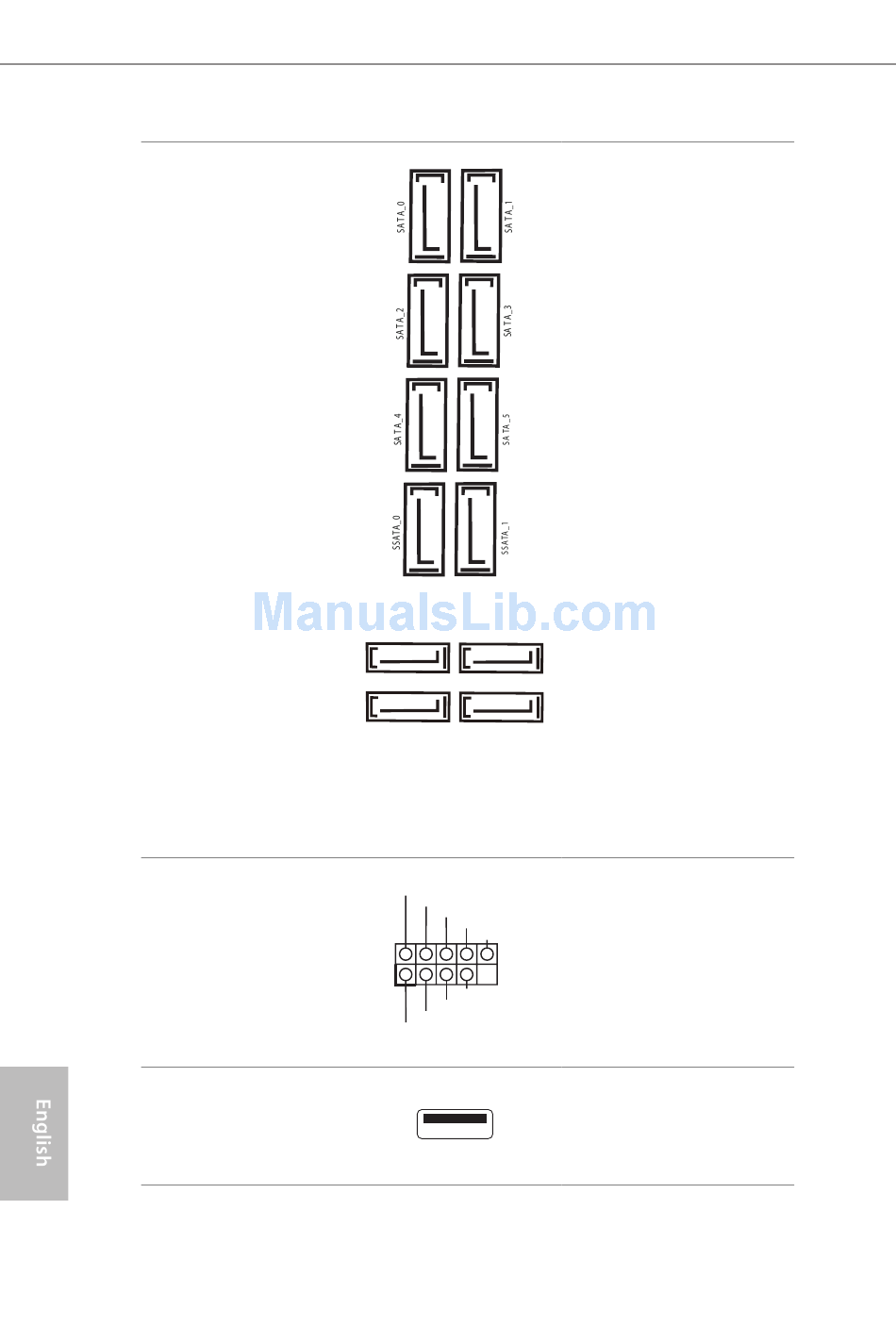

Serial ATA3 Connectors
(SATA_0)
(see p.6, No. 21)
(SATA_1)
(see p.6, No. 20)
(SATA_2)
(see p.6, No. 23)
(SATA_3)
(see p.6, No. 22)
(SATA_4)
(see p.6, No. 25)
(SATA_5)
(see p.6, No. 24)
(SSATA_0)
(see p.6, No. 27)
(SSATA_1)
(see p.6, No. 26)
(SSATA_2)
(see p.6, No. 30)
(SSATA_3)
(see p.6, No. 31)
(M_SATA_0)
(see p.6, No. 32)
(M_SATA_1)
(see p.6, No. 33)
USB 2.0 Header
(9-pin USB_1_2)
(see p.6, No. 36)
USB 3.0 Connector
(USB3_5)
(see p.6, No. 37)
28
M_SATA_0 SSATA_2
M_SATA_1
SSATA_3
USB_PWR
P-7
P+7
GND
DUMMY
1
GND
P+6
P-6
USB_PWR
hese twelve SATA3
connectors support SATA
data cables for internal storage
devices with up to 6.0 Gb/s
data transfer rate.
There is one header on t his
motherboard. Each USB 2.0
header can support two ports.
