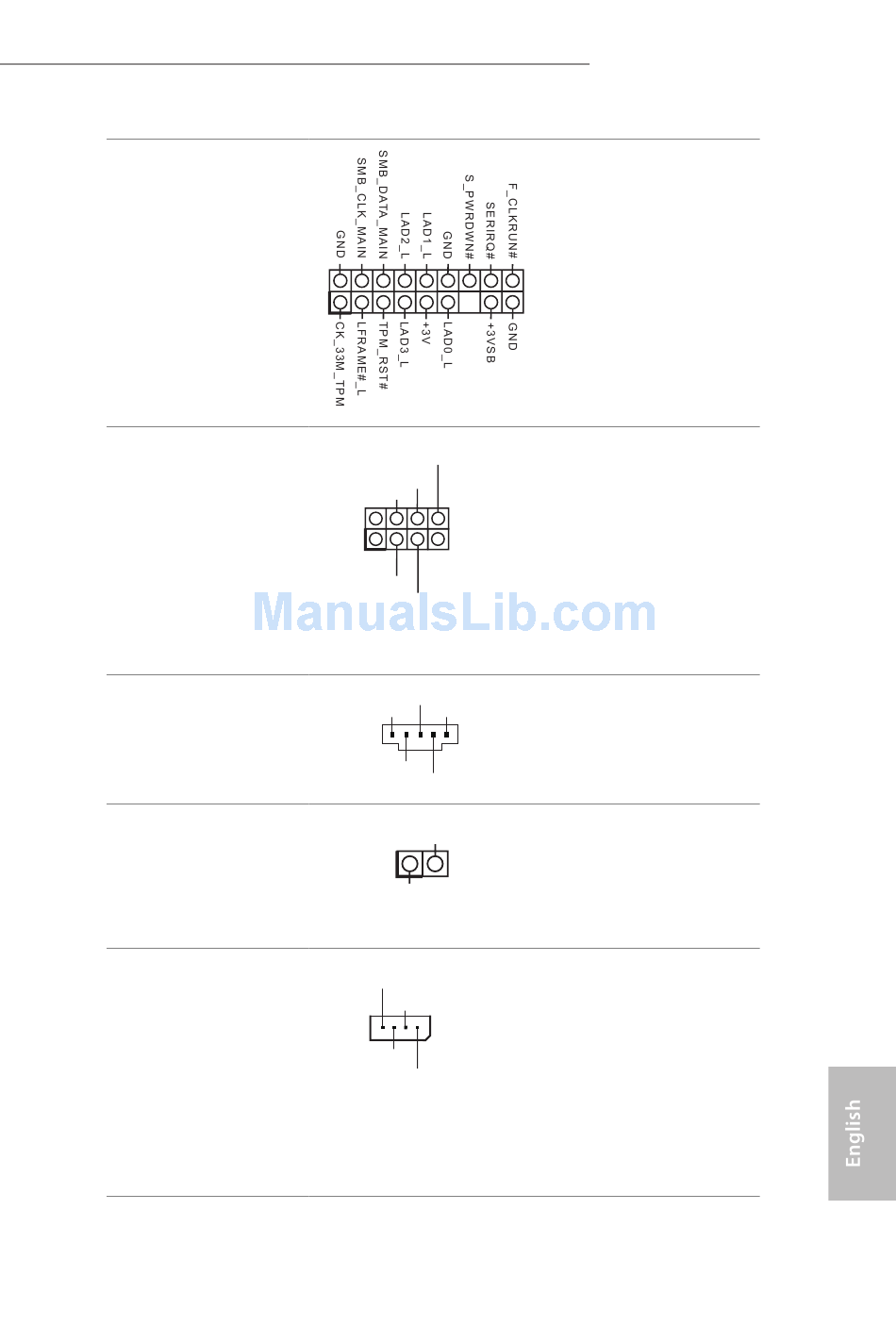

TPM Header
(17-pin TPM1)
(see p.6, No. 42)
Serial General Purpose
Input/Output Headers
(7-pin SATA_SGPIO1)
(see p.6, No. 18)
(7-pin SATA_SGPIO2)
(see p.6, No. 19)
(7-pin SSATA_SGPIO1)
(see p.6, No. 28)
PSU SMBus
(PSU_SMB1)
(see p.6, No. 6)
Non Maskable Interrupt
Button Header
(NMI_BTN1)
(see p.6, No. 46)
Intelligent Platform
Management Bus header
(4-pin IPMB1)
(see p.6, No. 5)
1
SCLOCK
SLOAD
GND
1
SDATAOUT
GND
ALERT
SMBCLK
+3VSB
1
SMBDATA
GND
GND
1
CONTROL
IPMB_SDA
IPMB_SCL
GND
No Connect
EP2C612D16T-4L
his connector supports
Trusted Platform Module
(TPM) system, which can
securely store keys, digital
certiicates, passwords, and
data. A TPM system also helps
enhance network security,
protects digital identities, and
ensures platform integrity.
These headers support Serial
Li n k i nter face for onboa rd
SATA connections.
P S U S M B u s m o n i t o r s t h e
status of the power supply, fan
and system temperature.
Please connect a NMI device
to this header.
This 4-pin connector is used
to provide a cabled base-board
or front panel connection for
value added features and 3rd-
party add-in cards, such as
Emergency Management cards,
t h a t p r o v i d e m a n a g e m e n t
features using the IPMB.
31
