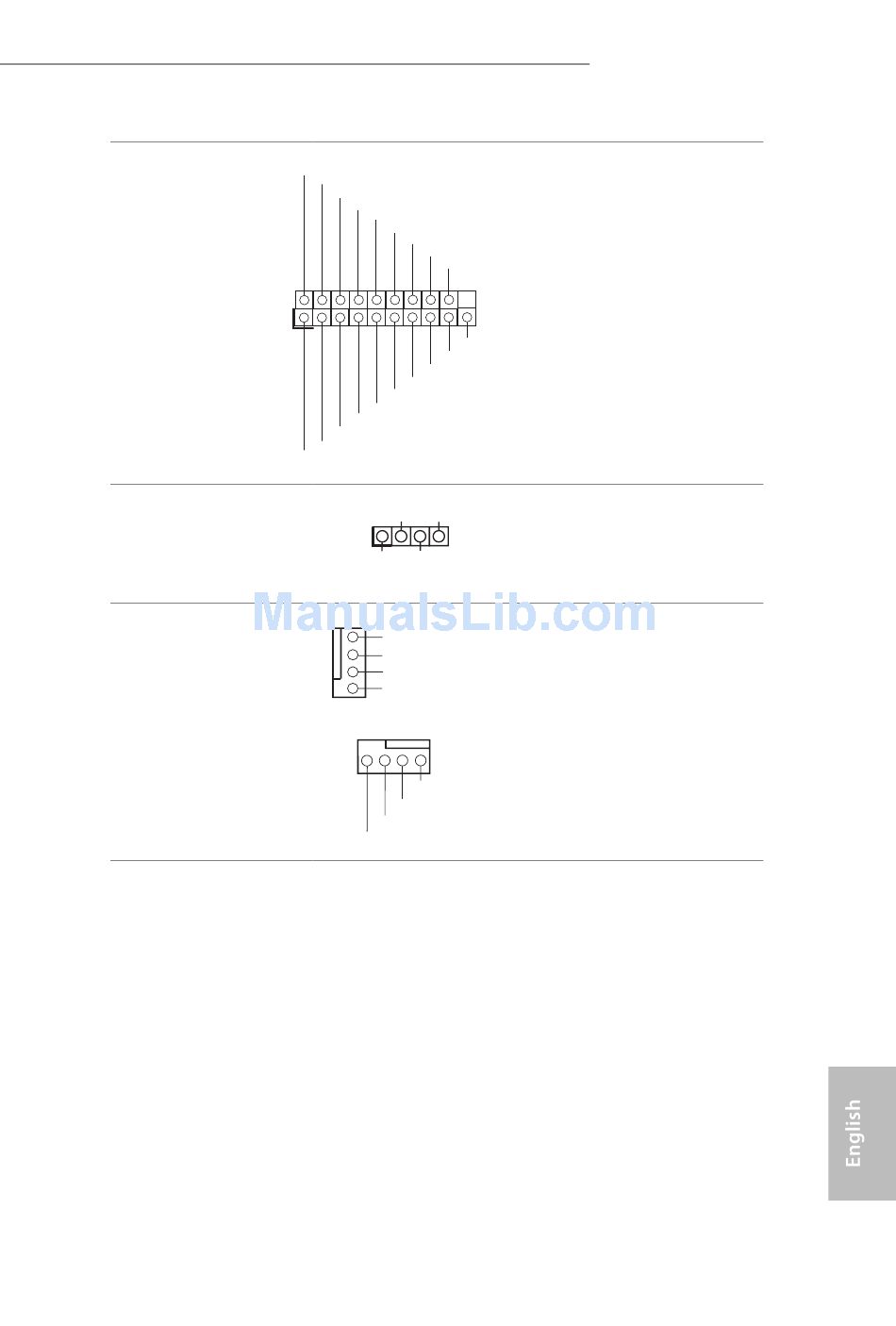

USB 3.0 Header
(19-pin USB3_3_4)
(see p.6, No. 38)
1
Chassis Speaker Header
(4-pin SPEAKER1)
(see p.6, No. 35)
CPU Fan Connectors
(4-pin CPU1_FAN1)
(see p.6, No. 13)
(4-pin CPU2_FAN1)
(see p.6, No. 59)
IntA_PA_D+
IntA_PA_D-
GND
IntA_PA_SSTX+
IntA_PA_SSTX-
GND
IntA_PA_SSRX+
IntA_PA_SSRX-
Vbus
Vbus
IntA_PB_SSRX-
IntA_PB_SSRX+
GND
IntA_PB_SSTX-
IntA_PBA_SSTX+
GND
IntA_PB_D-
IntA_PB_D+
Dummy
DUMMY
SPEAKER
1
+5V
DUMMY
1
GND
2
FAN_VOLTAGE
CPU_FAN_SPEED
3
FAN_SPEED_CONTROL
4
4
3
2
1
GND
+12V
CPU_F
AN_SPEED
FAN_SPEED_CONTROL
EP2C612D16T-4L
Besides two default USB 3.0
ports on the I/O panel, there
is one USB 3.0 header on this
motherboard. This USB 3.0
header can support two USB
3.0 ports.
Please connect the chassis
speaker to this header.
his motherboard provides
two 4-Pin CPU fan (Quiet
Fan) connectors. If you plan
to connect a 3-Pin CPU fan,
please connect it to Pin 1-3.
*For more details, please refer to the
Cooler QVL list on the ASRock Rack
website.
