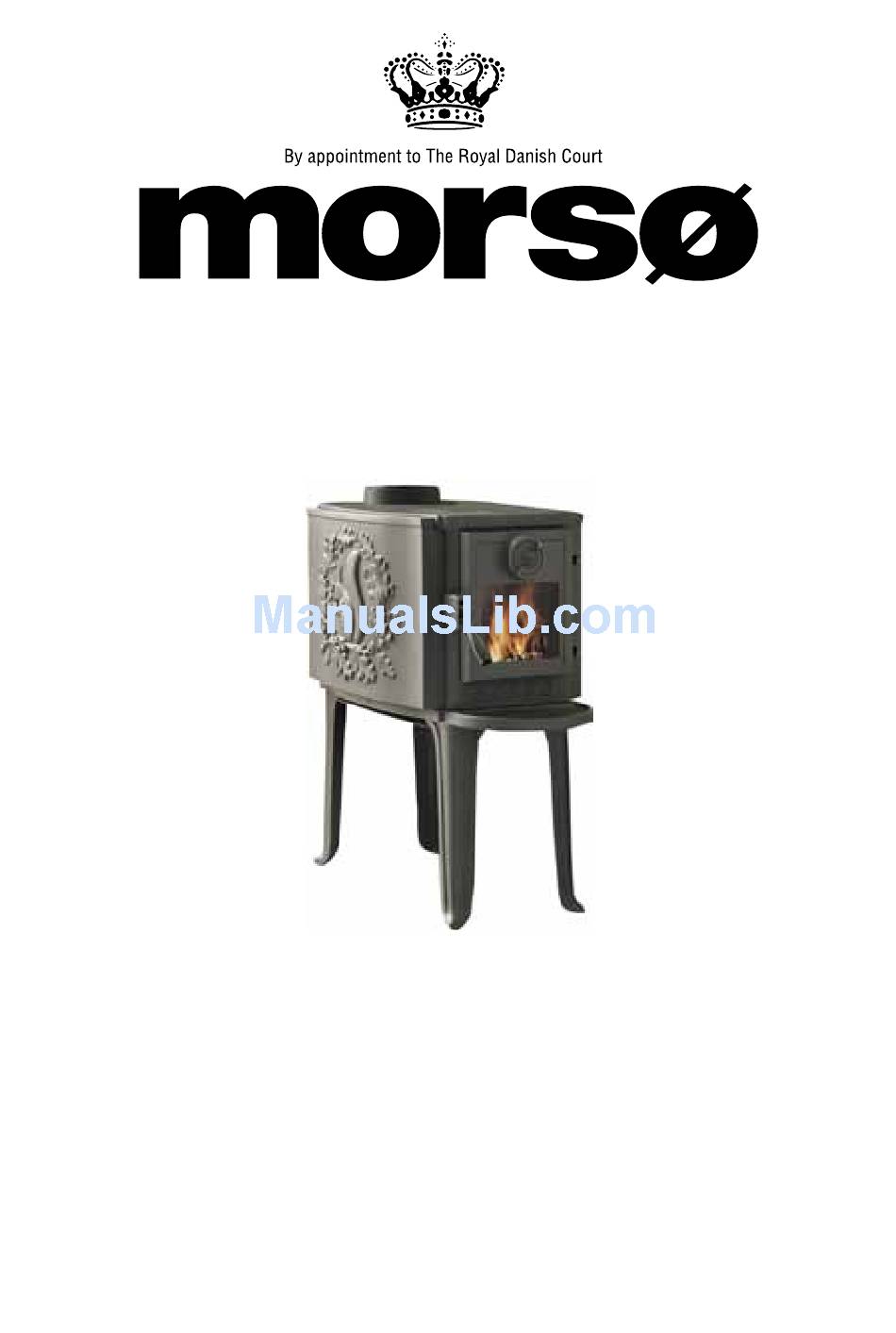

Installation and Operating Instructions

2B Standard
For use in North America
Read this entire manual before you install and use your new room heater. If this room
heater is not properly installed, a house fire may result. To reduce the risk of fire, follow
the installation instructions. Failure to follow instructions may result in property damage,
bodily injury, or even death.
Contact local building officials about restrictions and installation/inspection-requirements
in your area.
Save these instructions
MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS
E-Mail: stoves@morsoe.com · Website: www.morsoe.com
Distributed by: MORSO US LLC
1
1011 Highway 52 West - Portland TN - 37148 - USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2B Standard and is the answer not in the manual?

Questions and answers

Devon Cariou
June 13, 2025

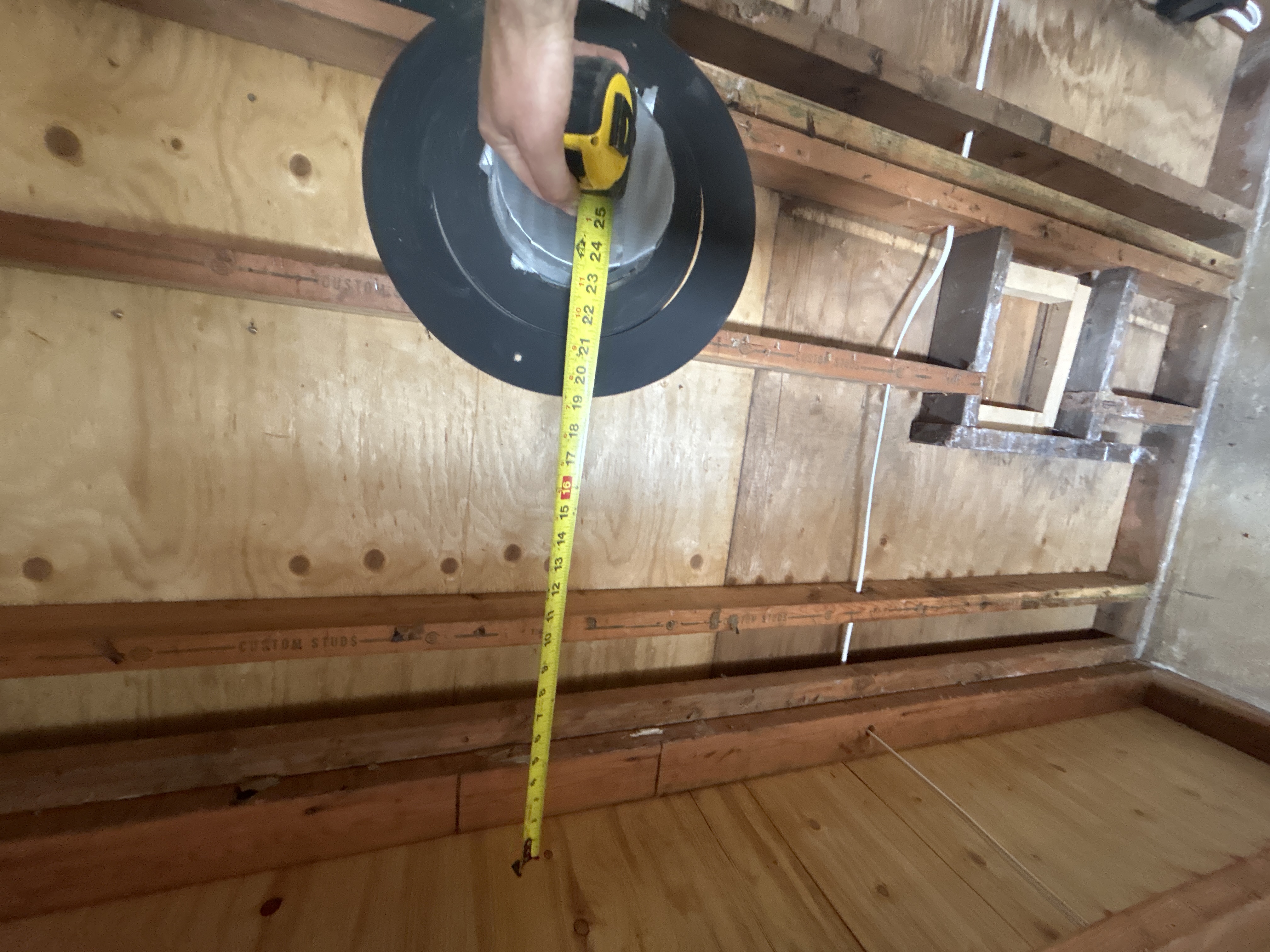

I only have 23 1/2 inches from sidewall to double wall connector (dimension “D”) What sort of shield do I need to install to make this compliant

User image 684c71584876b
0

Subscribe to Our Youtube Channel

Related Manuals for Morso 2B Standard

Summary of Contents for Morso 2B Standard

  • Page 1: Installation And Operating Instructions

    Contact local building officials about restrictions and installation/inspection-requirements in your area. Save these instructions MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS E-Mail: stoves@morsoe.com · Website: www.morsoe.com Distributed by: MORSO US LLC 1011 Highway 52 West - Portland TN - 37148 - USA...
  • Page 2 The Morsø 2B Standard meets the U.S. Environmental Protection Agency’s emission limits for wood heaters sold on or after July 1, 1990 The Morsø 2B Standard have been tested by OMNI-Test Laboratories, Inc. The test standards are ANSI/UL-1482 for the United States and ULC S627 for Canada.

  • Page 3: Table Of Contents

    Contents: Installation of your Morsø stove Unpacking the stove Checking loose parts in the stove The chimney / flue system Flue Connection Connection to existing chimney Positioning the stove Operation Before you start firing Lighting and loading intervals Maintenance Exterior maintenance Internal maintenance Cleaning the stove and the flue Leaving the stove for extended periods...

  • Page 4: Installation Of Your Morsø Stove

    1.1 Unpacking the stove 2B Standard: After removing the outer pack- aging, flatten it and lay onto the floor close to the stove; this can then act as protective work surface during the assembly process.
  • Page 5 How to fit the Vertical Baffle Lead the vertical baffle through the door as shown below (picture 1 & 2). Place the baffle into the right position (picture 3 & 4). The baffle insulation is placed on the baffle. Standard Accessories A Morsø...

  • Page 6: The Chimney / Flue System

    1.3 The chimney / flue system Note that the flue system must be independently secured and must not rely on the stove for support. The stove must not be connected to a chimney flue serving any other appliance. (Several flues may run up a single chimney stack; use one flueway per appliance). Use a residential type masonry or listed type HT factory-built chimney.

  • Page 7: Flue Connection

    1.4 Flue Connection A flue collar ise placed in the firebox area. Use a 24 MSG black or blue chimney connector or listed double wall chimney connector. Refer to local codes and the chimney manufacturer’s instructions for precautions required for passing a chimney through a combustible wall or ceiling.

  • Page 9: Positioning The Stove

    29“ (737 mm) 18“ (457 mm) 18“ (457 mm) 19“ (483 mm) 19“ (483 mm) Clearance requirements for 2B Standard with Convection shields (Singlewall connector) 26“ (660 mm) 26“ (660 mm) 16“ (406 mm) 16“ (406 mm) 16“ (406 mm) 16“...
  • Page 10 Clearance requirements for 2B Standard with & without shields (Doubleewall connector) 20“ (508 mm) 20“ (508 mm) 12“ (305 mm) 12“ (305 mm) 16“ (406 mm) 16“ (406 mm) 26“ (660 mm) 26“ (660 mm) 14“ (356 mm) 14“ (356 mm) 19“...
  • Page 11 Distance to furniture The recommended minimum distance from stove to furniture is 30 inches. Note that some furniture is more easily affected by heat and may need to be moved to a greater distance. This is your responsibility. In addition other combustible materials, away from the stove. In general, a distance of 30 inches must be maintained between the stove and moveable combustible item such as drying clothes, newspapers, firewood etc.

  • Page 12: Operation

    2.0 Operation 2.1 Before you start firing For Use with Solid Wood Fuel Only. Do Not Overfire, If Heater or Chimney Connector Glows You Are Overfiring. Inspect and Clean Chimney Frequently. Under Certain Conditions of use creosote buildup may occur rapidly. Because of risk of smoke and flame spillage, operate only with door fully closed.

  • Page 13: Lighting And Loading Intervals

    In principle Your stove is fitted with Primary and Secondary air inlets. Primary Air is controlled using the spinner on the door. Open the spinner will allow a supply of preheated air to enter the firebox via the ‘airwash’ system situated inside the stove and above the glass.
  • Page 14 The maximum recommended weight of wood fuel per load is 2.5 kg/h/5.5Ibs (approx 3 split logs). Under normal firing, the average flue temperature in the stove pipe, measured 20 cm above the stove, is approx. 300° C (550°F). The maximum flue temperature in the stove pipe must not exceed 450°...

  • Page 15: Maintenance

    3.0 Maintenance When perfoming maintenance on your stove, always protect yourself, using safety goggles and gloves. 3.1 Exterior Maintenance The stove surface is painted with heat-resistant Senotherm paint. It is best kept clean by va- cuuming with a soft brush attachment or by wiping with a lint-free cloth. Over a period of time, the painted surface may become slightly grey.
  • Page 16 1. Lift the door off the hinges and place it face down on a sheet of cardboard or other nonabrasive fabric. 2. Unscrew the 4 bolts that secure the glass. (In the event that a bolt sheers off when being unscrewed, remove the remaining body of the bolt by drilling down its centre with 1/8 inch high speed steel drill bit.

  • Page 17: Cleaning The Stove And The Flue

    Gasket The gasket around the perimeter of the door may harden over a period of time. It should be replaced if it becomes difficult to close the doors or if air starts to leak in around the perimeter of the doors, causing the fire to become a little less controllable. A morsø rope gasket kit is available from your stove supplier.

  • Page 18: Leaving The Stove For Extended Periods

    Chimney sweeping Inspect the system regularly during the heating season as part of a regular maintenance schedule. To inspect the chimney, let the stove cool completely. Then, using a mirror, sight up through the flue collar into the chimney flue. If you cannot inspect the flue system in this fashion, the stove must be disconnected to provide better viewing access.

  • Page 19: Parts Diagram

    3.5 Parts diagram for model Morsø 2B Standard 2B Standard Radiant 2B Standard NA 2B Standard Radiant 2B Standard Radiant 2B Standard Radiant 2B Standard NA 2B Standard NA 2B Standard Convection 2B Standard Convection 2B Standard Convection 2B Standard Convection Ændret til SolidWorks...

  • Page 20: Parts List

    3.6 Parts list for model Morsø 2B Standard 2B Standard 2B Standard Pos.No. Parts witout shields with Convection shilds Squirrel side panel 54200321 44200521 Rear plate 44203721 44203721 Smoke valve 44200800 44200800 Horizontal baffle 44203600 44203600 Vertical baffle 44203800 44203800...
