Summary of Contents for Morso 7110 B

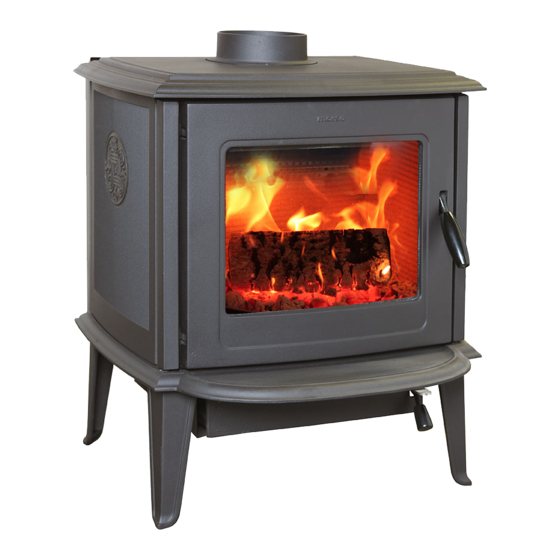

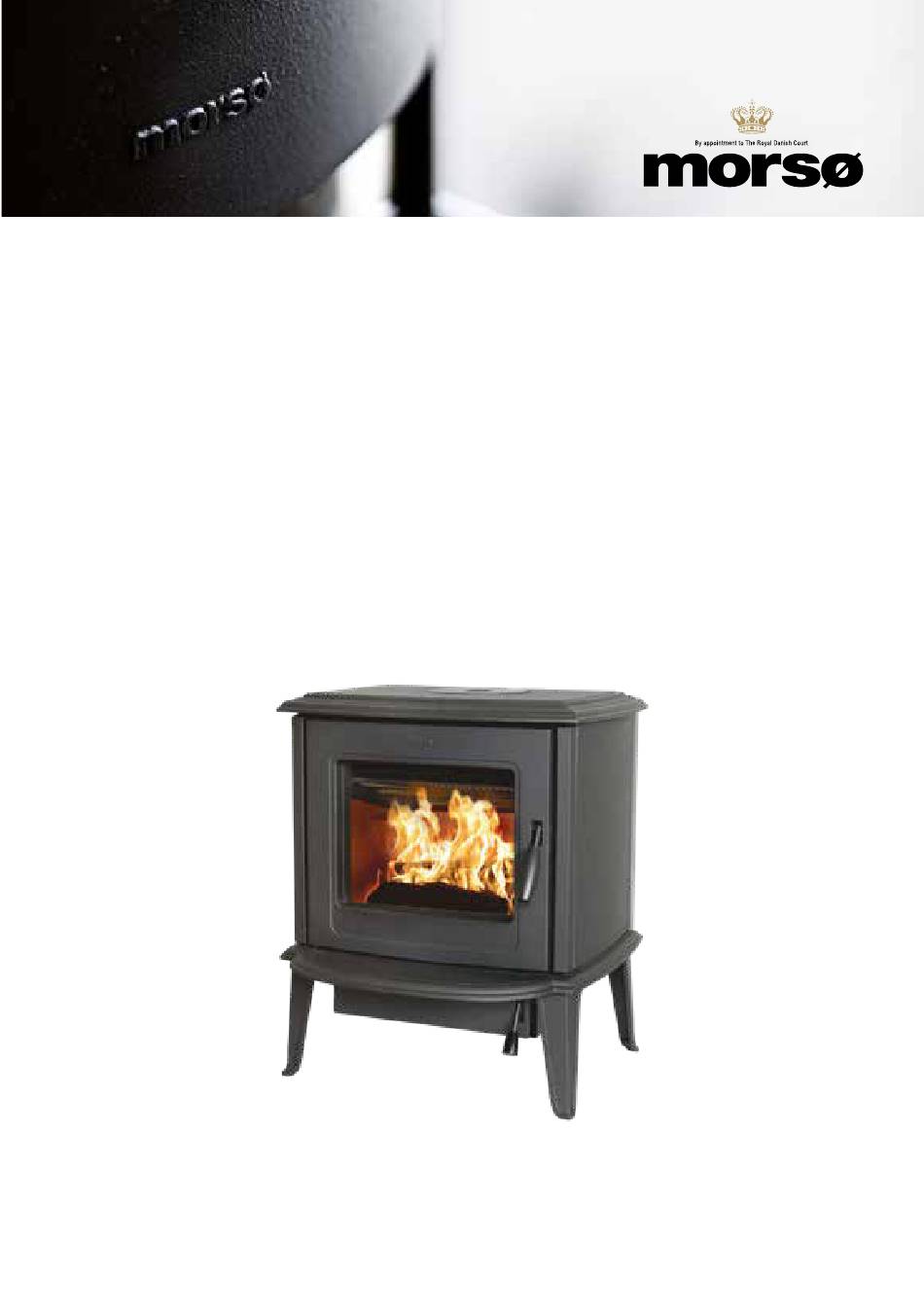

- Page 1 Installation and Operating Instructions Morsø 7110 B For use in North America Save these instructions MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS E-Mail: stoves@morsoe.com · Website: www.morsoe.com...
-
Page 2: Table Of Contents
Morsø, which is the largest supplier for the Dan- ish market, has manufactured stoves of the high- The Morsø 7110 B has been certified by PFS TECO.. The test standards are ANSI/UL-1482- 2011 (R2015) for the United States and ULC S627-00 for Canada. -
Page 3: Installation Of Your Morsø Stove
1.2 The chimney / flue system 1.0 Installation of your Morsø stove Note that the flue system must be independently secured and must not rely on the stove for support. Installation of woodburning stoves must be safe and legal. The stove must not be connected to a chimney flue serving any other appliance. (Several flues may run up a single chimney stack;... -
Page 4: Flue Connection
1.3 Flue Connection The stove is supplied from the factory with a flue collar fitted to the top plate and a round blanking plate blocking off the rear flue exit (behind the rear shield plate). Use a 24 MSG black or blue chimney connector or listed double wall chimney connector. Re- fer to local codes and the chimney manufacturer’s instructions for precautions required for passing a chimney through a combustible wall or ceiling. -
Page 5: Positioning The Stove
84” 84” - 2134 mm The Morsø 7110 B can be installed in a mobile home if equipped with an outside combus- tion air kit, a terminal cap with a spark arrestor, and if it meets the following installation requirements: - The stove must be secured to the mobile home structure by bolting through the hearth pad and into flooring. -
Page 6: Operation
WARNING: 2.0 Operation NEVER DRAW COMBUSTION AIR FROM A WALL, FLOOR OR CEILING CAVITY OR FROM ANY ENCLOSED SPACE SUCH AS AN ATTIC OR GARAGE. DO NOT INSTALL IN A SLEEPING ROOM. 2.1 Before you start firing For Use with Solid Wood Fuel Only. Do Not Overfire, If Heater or Chimney Connector CAUTION: Glows You Are Overfiring. -
Page 7: Lighting & Loading Intervals
Secondary Air is left to the firebox using the specially designed baffle at the back of the fire- box. The secondary air is injected into the flue gases above the fire resulting in a cleaner, more efficient combustion process. The supply of secondary air is fixed open and is not adjustable. For extra safety, your stove has been fitted with a removable handle. - Page 8 Do not for any reason attempt to increase the firing of your heater by altering the air control adjustment range outlined in these directions. This wood heater has a manufacturer-set minimum low burn rate that must not be al- 7. Place two pieces of fuel weighing roughly 2-4 pound and tered.
-
Page 9: Maintenance
1. When you open the door, you will find two small M4 unbraco screws, one in each hinge. 3.0 Maintenance Unscrew the two screws, lift the door off the hinges and place it face down on a sheet of cardboard or other nonabrasive fabric. When perfoming maintenance on your stove, always protect yourself, using safety gog- 2. -
Page 10: Cleaning The Stove & The Flue
Gasket Chimney sweeping The gasket around the perimeter of the doors may harden over a period of time. It should be Inspect the system regularly during the heating season as part of a regular maintenance sched- replaced if it becomes difficult to close the doors or if air starts to leak in around the perim- ule. -
Page 11: Parts Diagram
3.5 Parts diagram for model Morsø 7110 B 3.6 Parts list for model Morsø 7110 B Pos. No. Parts SKU number Base plate 44710100 Front frame 44710200 Door 44710300 Side plate, right 44711900 Side plate, left 44712000 Rear plate 44710600... - Page 12 3.6 Parts list for model Morsø 7110 B Pos. No. Parts SKU number Screw M6x80 Din931 73168000 Screw M8x30 DIN 933 731830 Screw Ø3.5X9.5 DIN 7981 fzb 791835 Screw M5x08 ISO7380 73850800 Screw M6x35 Din7991 74241900 Screw M6x10 Buttonhead 73861000 Washer 30x8.4x1.25 art9021...
- Page 13 Guarantee Product Registration MORSØ 10 YEAR GUARANTEE CERTIFICATE Behind every Morsø stove is more than 160 years of dedicated stove design and manufacturing experi- ence. Quality control has always been at the heart of the production process and detailed measures have been put into place at all key stages of the build.
- Page 15 IMPORTANT! How to heat safely for the environ- ment and yourself! • Use only dry wood Use only dry (max. 20% moisture content) and untreated wood. The fuel must be split and 3-5’’ thick. • Light Light with dry kindling (use 2-4 lbs). Leave the door ajar and stay close to the stove during the lighting phase.
